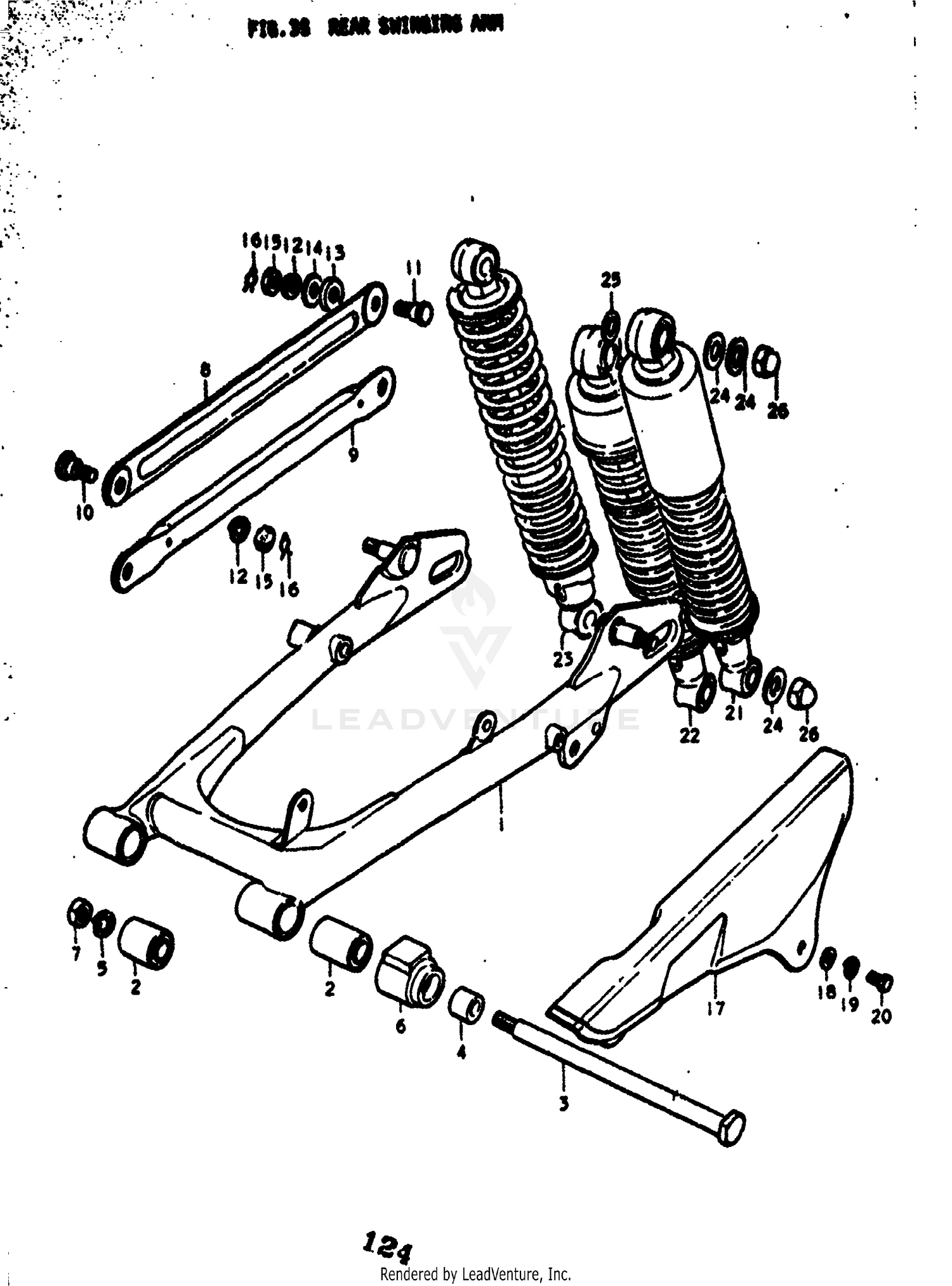

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM, REAR
61100-25833-019
|
|||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR
61100-25850-019
Superseded by 61100-25870-019
|
$75.96 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM, REAR
61100-25870-019
|
$75.96 | ||
|
Unavailable |
|||
|
#2
BUSHING
09319-10009
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, PIVOT
61211-25300
|
$8.70 | ||
|
Unavailable |
|||
|
#4
SPACER
09180-10025
|
$0.72 | ||
|
Unavailable |
|||
|
#5
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUFFER, CHAIN TOUCH DIFENCE
61273-25300
|
$5.93 | ||
|
Unavailable |
|||
|
#7
NUT
08311-11108
Superseded by 08310-00107
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
LINK, REAR TORQUE
64310-20100
|
|||
|
Unavailable |
|||
|
#8
LINK, REAR TORQUE
64310-25300
|
$8.76 | ||
|
Unavailable |
|||
|
#9
NO DESCRIPTION AVAILABLE
64310-39000
Superseded by 64310-39000-019
|
$11.62 | ||
|
Unavailable |
|||
|
#10
BOLT, FRONT
09111-08012
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, PANEL
09111-08013
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, PANEL
09111-08022
|
$2.20 | ||
|
Unavailable |
|||
|
#12
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09161-11002
|
$1.78 | ||
|
Unavailable |
|||
|
#14
WASHER (8.5X26X1.6)
09160-08005
Superseded by 09160-08134
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FORQUE LINK
09140-08008
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
09385-10001
Superseded by 09385-10005
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE, CHAIN
61310-25300-126
|
|||
|
Unavailable |
|||
|
#17
CASE, CHAIN
61310-25301-126
|
$36.21 | ||
|
Unavailable |
|||
|
#18
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
09100-06011
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHOCK ABSORBER ASSY, REAR
62100-25310
|
|||
|
Unavailable |
|||
|
#21
SHOCK ABSORBER ASSY, REAR
62100-25311
|
$61.56 | ||
|
Unavailable |
|||
|
#22
SHOCK ABSORBER ASSY, REAR
62100-25510
|
$65.01 | ||
|
Unavailable |
|||
|
#23
SHOCK ABSORBER ASSY, REAR
62100-25511
|
$67.26 | ||
|
Unavailable |
|||
|
#24
WASHER, LOWER (10.5X24X2.3)
09160-10001
Superseded by 09160-10093
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
08322-11128
Superseded by 08322-01127
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08313-11107
Superseded by 08313-10107
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
