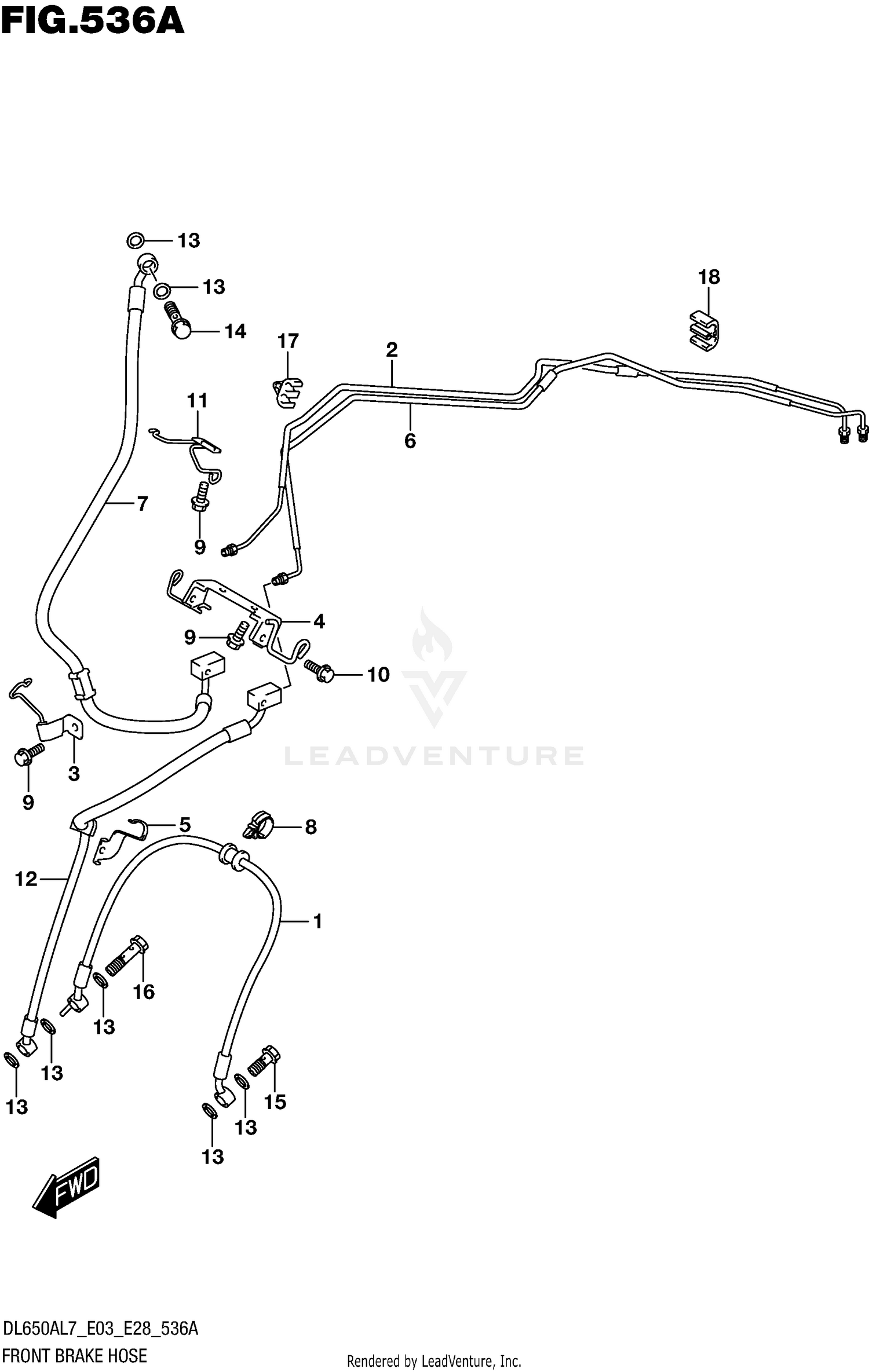

2017 Suzuki V-STROM 650 ABS FRONT BRAKE HOSE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE,FR BRAKE NO.2
59240-11J00
|
$114.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE,BK JOINT R TO HU
59250-28K00
|
$24.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,FR BRAKE HOSE
59260-06G10
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP,FR BK HOSE NO.2
59260-11J00
|
$25.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP,FR BRAKE HOSE,R
59268-11J00
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE,HU TO BK JOINT,L
59450-28K00
|
$23.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE,FR BRAKE NO.1
59480-11J00
Superseded by 59480-11J01
|
$95.73 | ||
|
Unavailable |
|||
|
#8
CLAMP
09403-16412
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0612A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0616A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE,FR BRAKE HOSE
59540-11J00
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE,FR BRAKE NO.3
59560-11J00
Superseded by 59560-11J01
|
$89.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER (10X15X1.5)
09161-10009
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
UNION
09360-10062
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
UNION
09360-10062
|
$6.88 | ||
|
Unavailable |
|||
|
#16
UNION (10X1.25X36)
09360-10064
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09403-07334
|
$1.84 | ||
|
Unavailable |
|||
|
#18
CLAMP
09403-06324
|
$2.48 | ||
|
Unavailable |
|||
