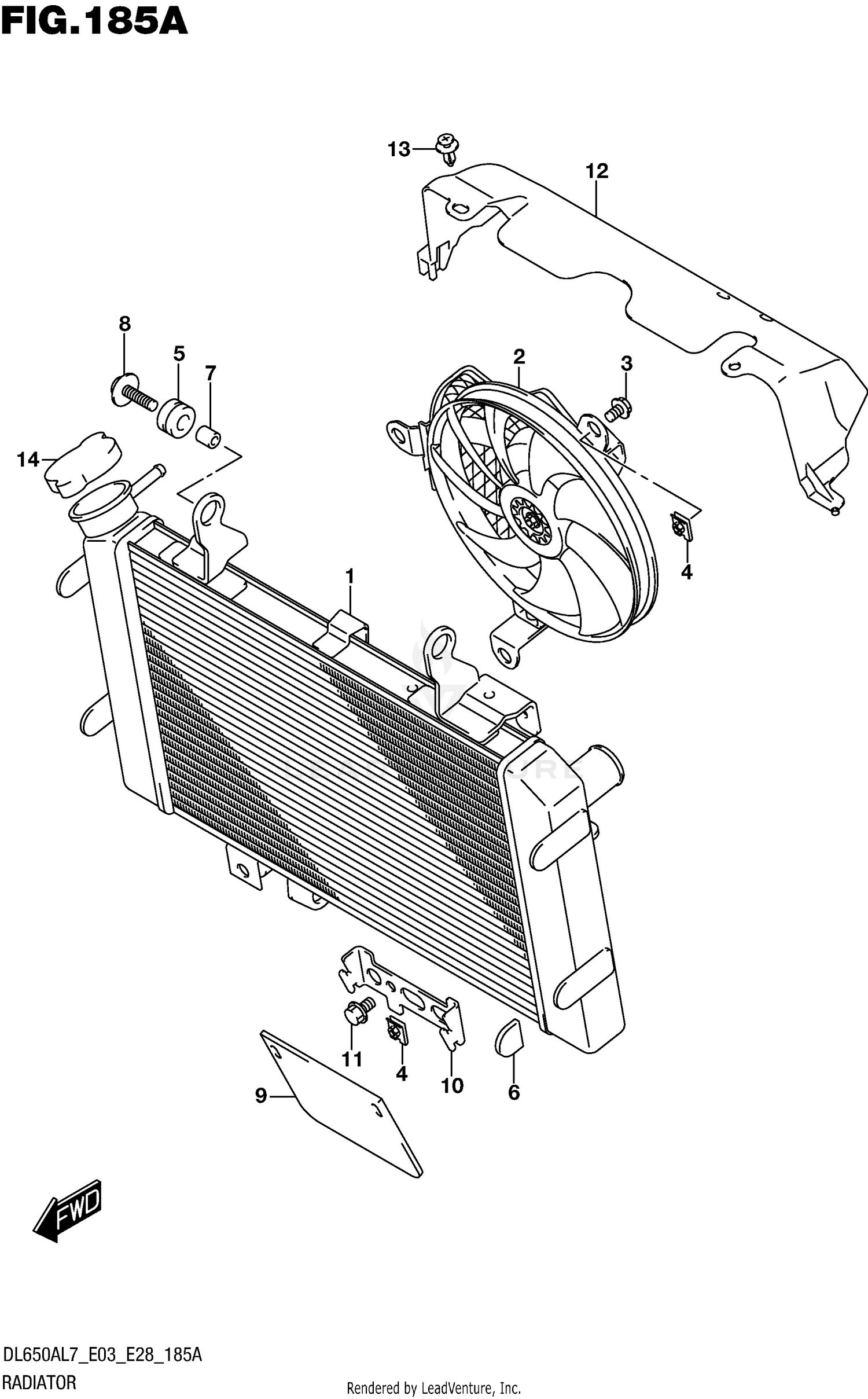

2017 Suzuki V-STROM 650 ABS RADIATOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY,WATER
17710-11J00
|
$942.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN ASSY,RADIATOR
17800-11J00
|
$645.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,FAN ASSY
17711-08J00
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,FAN ASSY
17712-40F00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION (10X20X10)
09320-10501
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09329-18001
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X10X10)
09180-06310
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X25)
09118-06097
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER,RADIATOR UNDER
17781-17G00
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET,RDTR UNDER RUBBER
17741-17G00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-0612A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIELD,RADIATOR HEAT
17771-11J00
|
$36.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP (5.9X20.5,BLACK)
09409-06322-5PK
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RADIATOR 1.1
17730-08J00
|
$47.17 | ||
|
Available to order. Add to View Price |
|||
