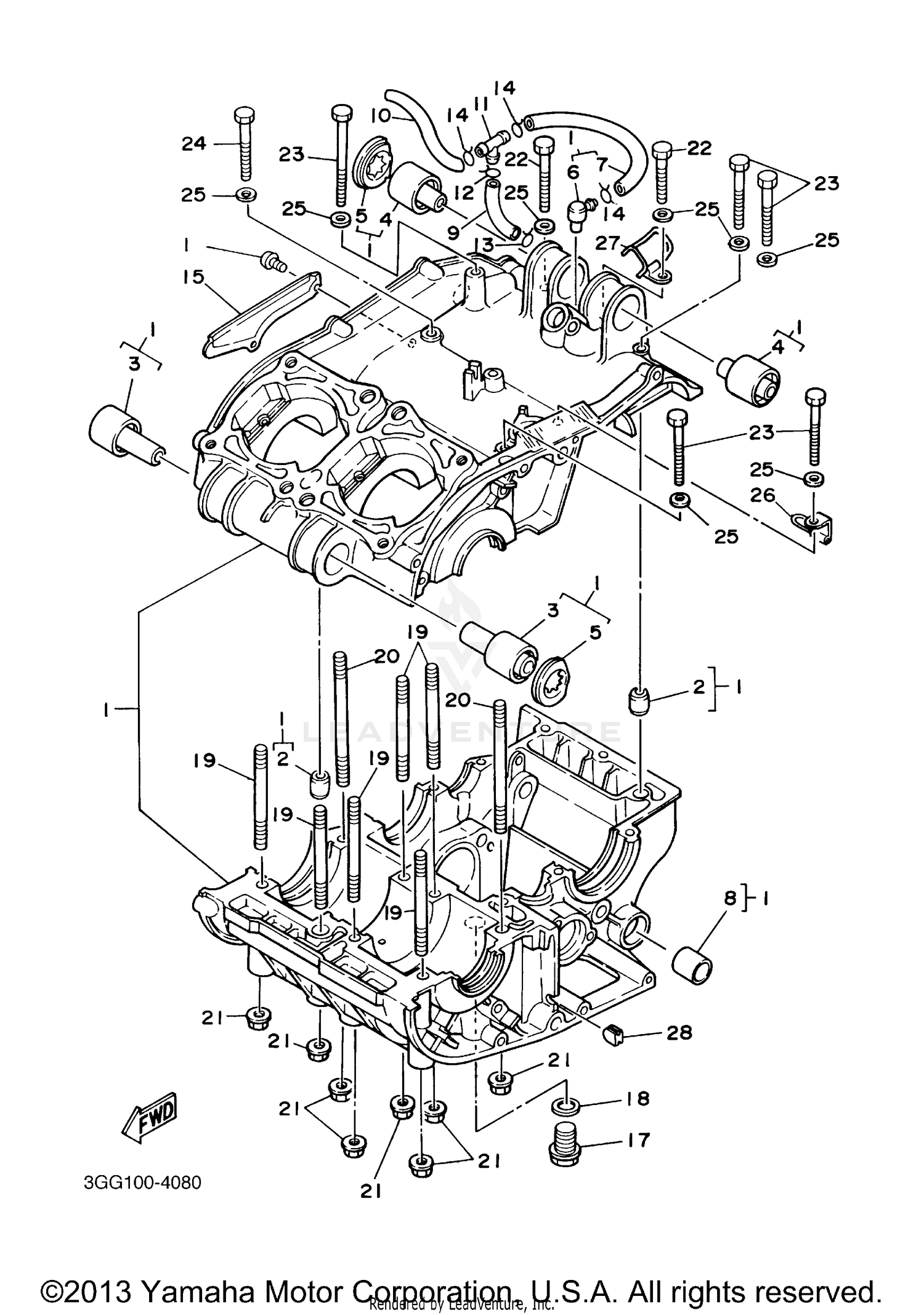

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
2GU-15100-01-00
Superseded by 2GU-15100-03-00
|
$866.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
2GU-15316-00-00
Superseded by 90388-10006-00
|
$27.99 | ||
|
Unavailable |
|||
|
#4
DAMPER
2GU-15326-00-00
Superseded by 90388-10007-00
|
$29.99 | ||
|
Unavailable |
|||
|
#5
SPACER, DAMPER
2GU-15328-00-00
Superseded by 2GU-15328-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#6
BREATHER
120-15371-00-00
Superseded by 583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 5
90445-09109-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, FORMED
90383-12022-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE (L508)
90445-081F1-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L675)
90445-09123-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WAY 3
90413-05014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
COVER
278-15492-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-14043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, STUD
90116-08064-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, STUD
90116-08232-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97017-06045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97017-06060-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
97017-06090-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90462-16130-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90465-06094-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG
90338-06190-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
