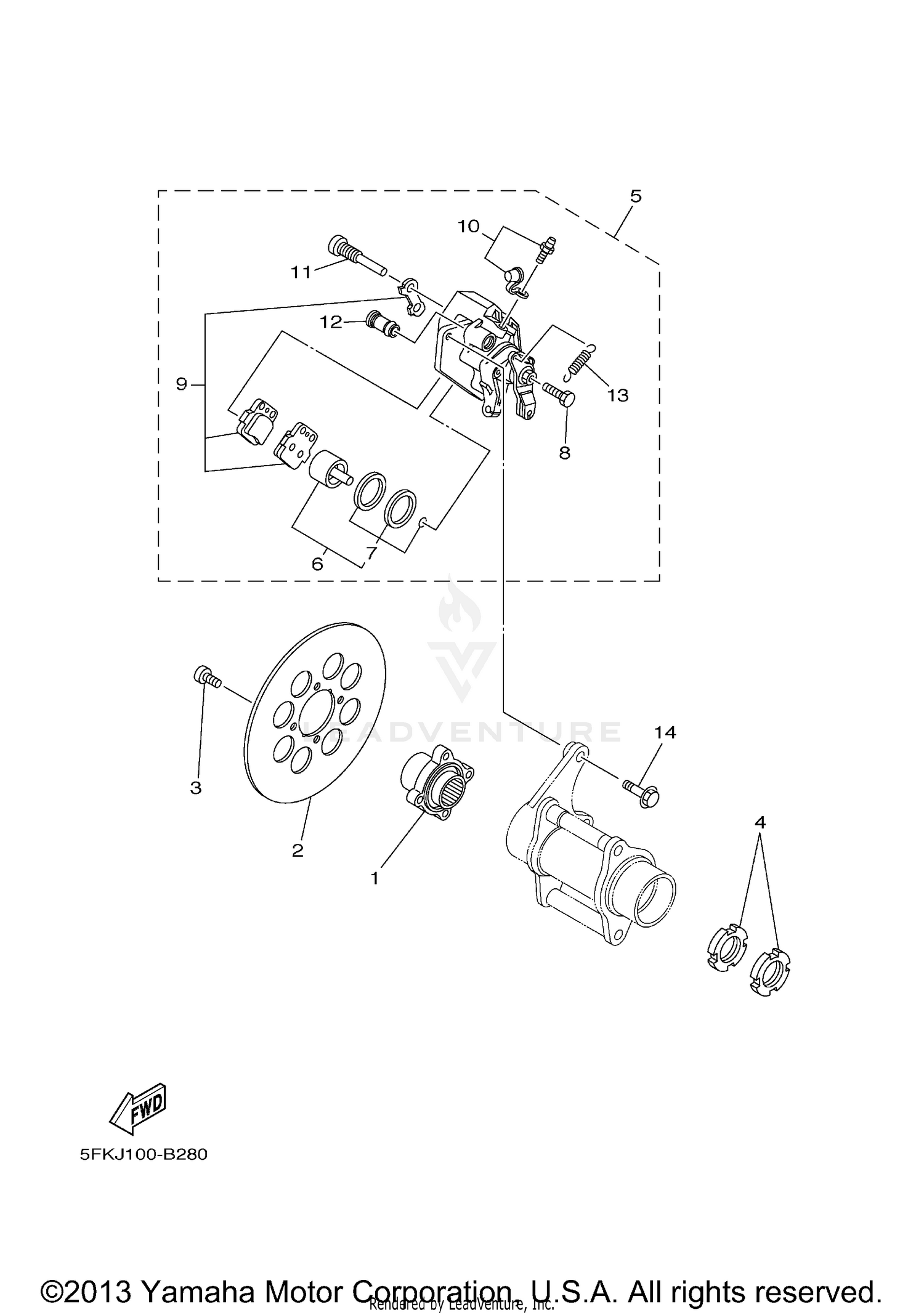

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, DISC
2GU-25712-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISK, REAR BRAKE 2
5FK-2582W-00-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,HEX. SOCKET BUT
90109-081F0-00
Superseded by 90111-08053-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90170-33376-00
Superseded by 90170-33011-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER ASSY, REAR 2
1UY-2580W-00-00
Superseded by 1UY-2580W-02-00
|
$590.99 | ||
|
Unavailable |
|||
|
#6
PISTON ASSY, CALIPER
1UY-W0057-50-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
1UY-W0047-50-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ADJUSTBOLT
1UY-25972-51-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT 2
1UY-W0046-00-00
Superseded by 1UY-W0046-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#10
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PAD
1UY-25924-51-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, CALIPER
1UY-25917-51-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, RETURN
1UY-25977-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-08440-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
