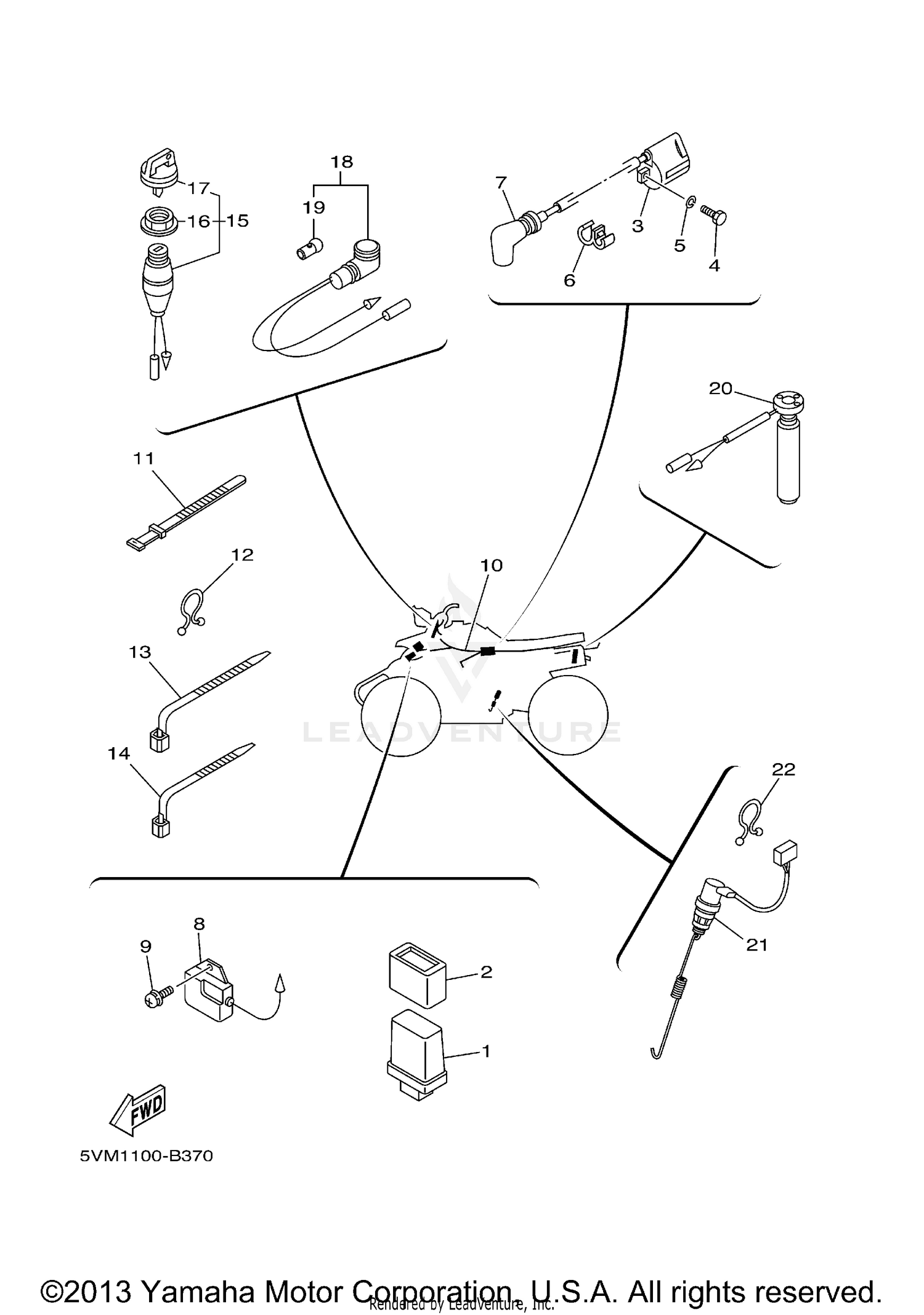

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5VM-85540-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
5HP-85546-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
3NS-82310-10-00
Superseded by 3KJ-82310-13-00
|
$45.99 | ||
|
Unavailable |
|||
|
#4
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-08002-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG CAP ASSY
1M1-82370-30-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VOLTAGE REGULATOR AS
82F-81910-A0-00
Superseded by 7XE-81910-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE HARNESS ASSY
5VM-82590-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-16039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#15
MAIN SWITCH ASSY
2XJ-82510-01-00
Superseded by 2XJ-82510-02-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PILOT LIGHT ASSY
2XJ-83530-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL LEVEL GAUGE ASSY
2XJ-85720-03-00
Superseded by 2XJ-85720-04-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STOP SWITCH ASSY
5VM-82530-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-16039-00
|
$8.49 | ||
|
Unavailable |
|||
