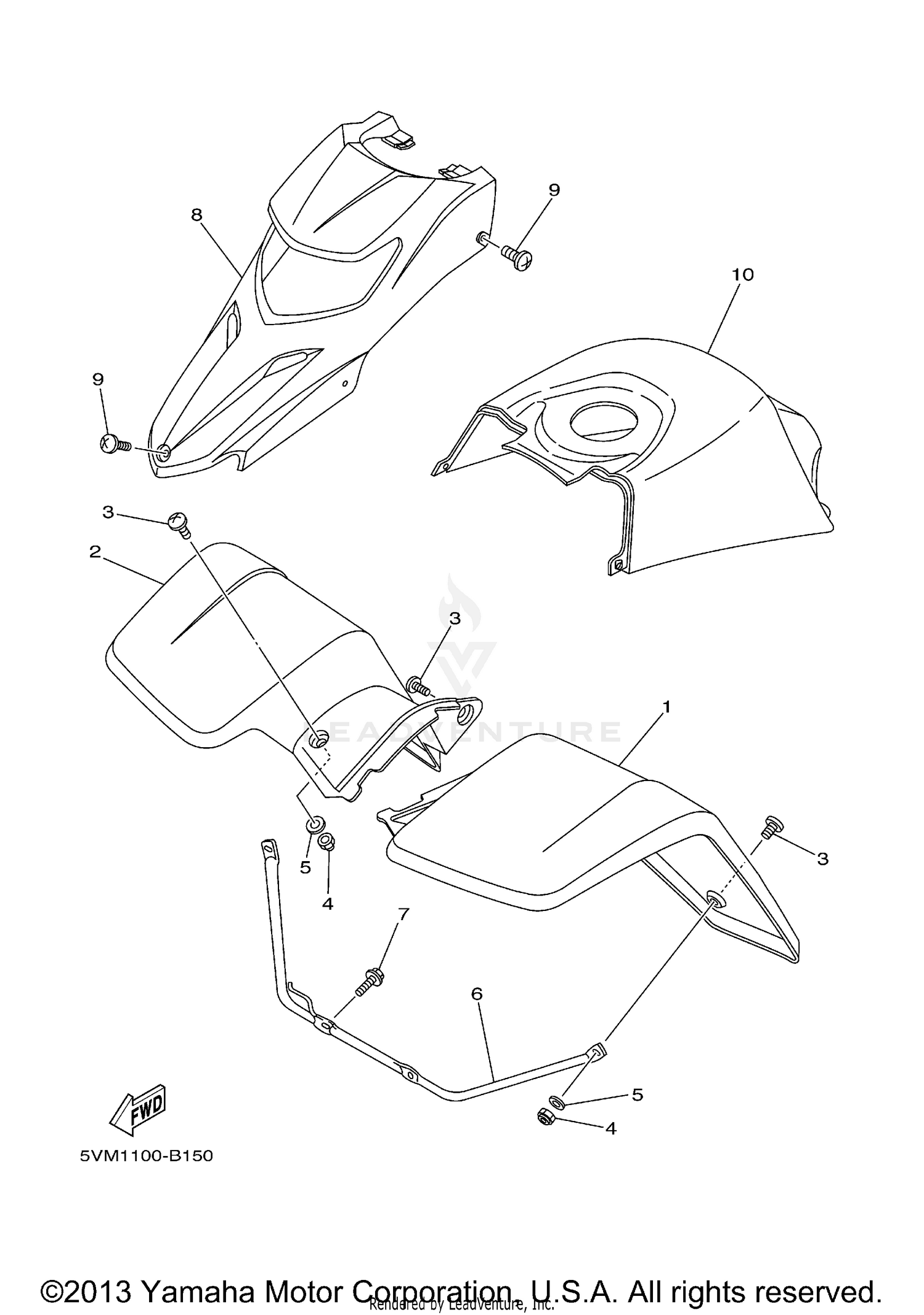

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
2XJ-W2151-C1-00
|
$113.99 | ||
|
Unavailable |
|||
|
#
FRONT FENDER COMP.
2XJ-W2151-D1-00
|
$109.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, FRONT 2
2XJ-21556-D0-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER, FRONT 2
2XJ-21556-C0-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
90149-06306-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, FENDER 1
2XJ-21513-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL, FRONT
5VM-23391-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PANEL, FRONT
5VM-23391-20-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BINDING
90154-05002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, TOP
2XJ-2171A-C0-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, TOP
2XJ-2171A-E0-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
