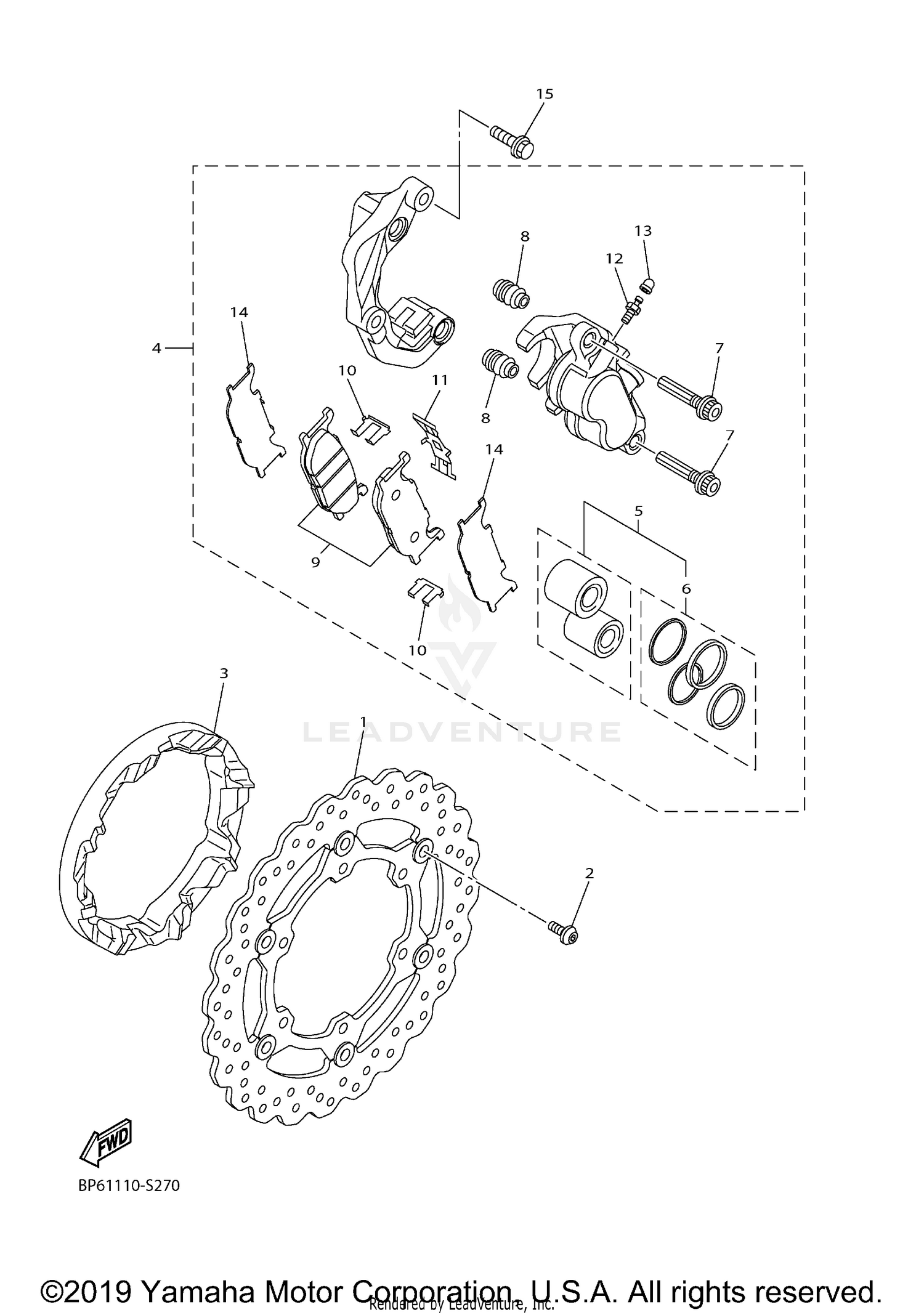

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
1TP-2581T-00-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-081F0-00
Superseded by 90111-08053-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, WHEEL 1
BP6-2514A-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY (LEFT)
27D-2580T-00-00
|
$391.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON ASSY, CALIPER
3YX-W0057-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER SEAL KIT
3JB-W0047-00-00
Superseded by 3JB-25803-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, SLIDE
5JW-25914-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT 2
4TT-25937-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT
5S7-W0045-00-00
Superseded by 5S7-25805-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#10
SUPPORT, PAD
4BP-25919-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, ANTI RATTLE
3YX-25929-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BLEED
47X-25824-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
1D7-25825-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM, CALIPER
4DN-25827-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WASHER BASED
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
