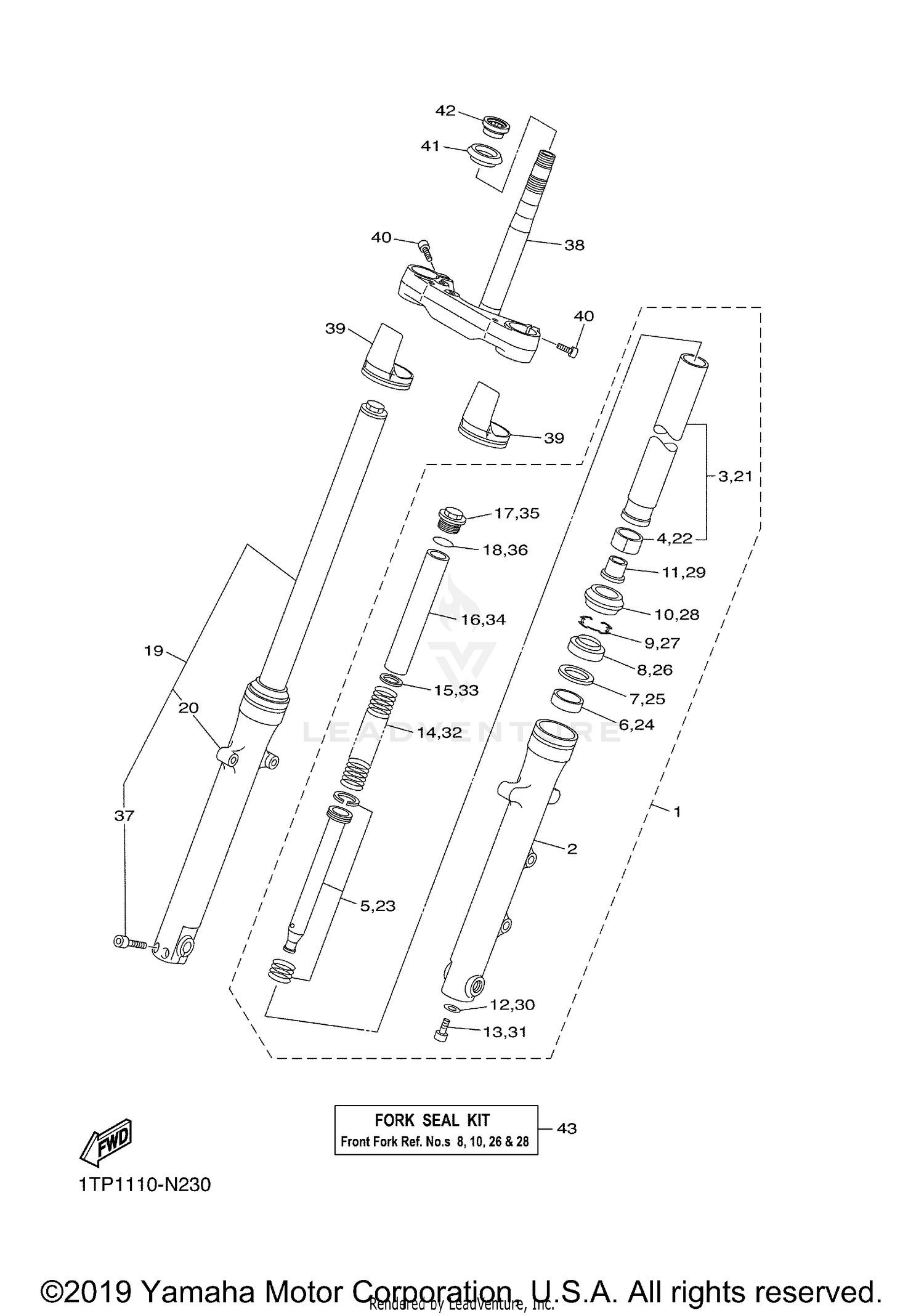

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
1TP-23102-01-00
|
$608.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (L.H)
1TP-23126-01-00
|
$328.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP. 1
1TP-23110-01-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
METAL, SLIDE
4FM-23171-40-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER COMP., FRONT FORK
1TP-23170-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
METAL, SLIDE 1
4FM-23125-40-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
1TP-23146-00-00
Superseded by 36Y-23146-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
4EB-23145-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, SNAP
1TP-23156-00-00
Superseded by 26H-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPINDLE, TAPER
1TP-23173-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
1TP-23158-00-00
Superseded by 509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
1TP-23181-00-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
1TP-23141-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING UPPER
1TP-23149-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
1TP-23118-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
1TP-23111-00-00
Superseded by 1D0-23111-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
. .O-RING
1TP-23188-00-00
Superseded by 1TP-23188-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
FRONT FORK ASSY (R.H)
1TP-23103-01-00
|
$610.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, OUTER 2
1TP-23136-01-00
|
$437.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
INNER TUBE COMP. 1
1TP-23110-01-00
|
$392.99 | ||
|
Unavailable |
|||
|
#22
METAL, SLIDE
4FM-23171-40-00
|
$22.99 | ||
|
Unavailable |
|||
|
#23
CYLINDER COMP., FRONT FORK
1TP-23170-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#24
METAL, SLIDE 1
4FM-23125-40-00
|
$31.99 | ||
|
Unavailable |
|||
|
#25
WASHER, OIL SEAL
1TP-23146-00-00
Superseded by 36Y-23146-10-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
OIL SEAL
4EB-23145-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#27
RING, SNAP
1TP-23156-00-00
Superseded by 26H-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
SPINDLE, TAPER
1TP-23173-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#30
GASKET
1TP-23158-00-00
Superseded by 509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
1TP-23181-00-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
SPRING, FRONT FORK
1TP-23141-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#33
WASHER, SPRING UPPER
1TP-23149-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#34
SPACER
1TP-23118-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#35
BOLT, CAP
1TP-23111-00-00
Superseded by 1D0-23111-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#36
. .O-RING
1TP-23188-00-00
Superseded by 1TP-23188-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
1TP-2311H-00-00
Superseded by 91314-08035-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
UNDER BRACKET COMP.
1TP-23340-00-00
Superseded by 1TP-23340-01-00
|
$383.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER
4PU-2331G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
91314-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
FORK SEAL KIT
4EB-W0003-B0-00
|
|||
|
Unavailable |
|||
