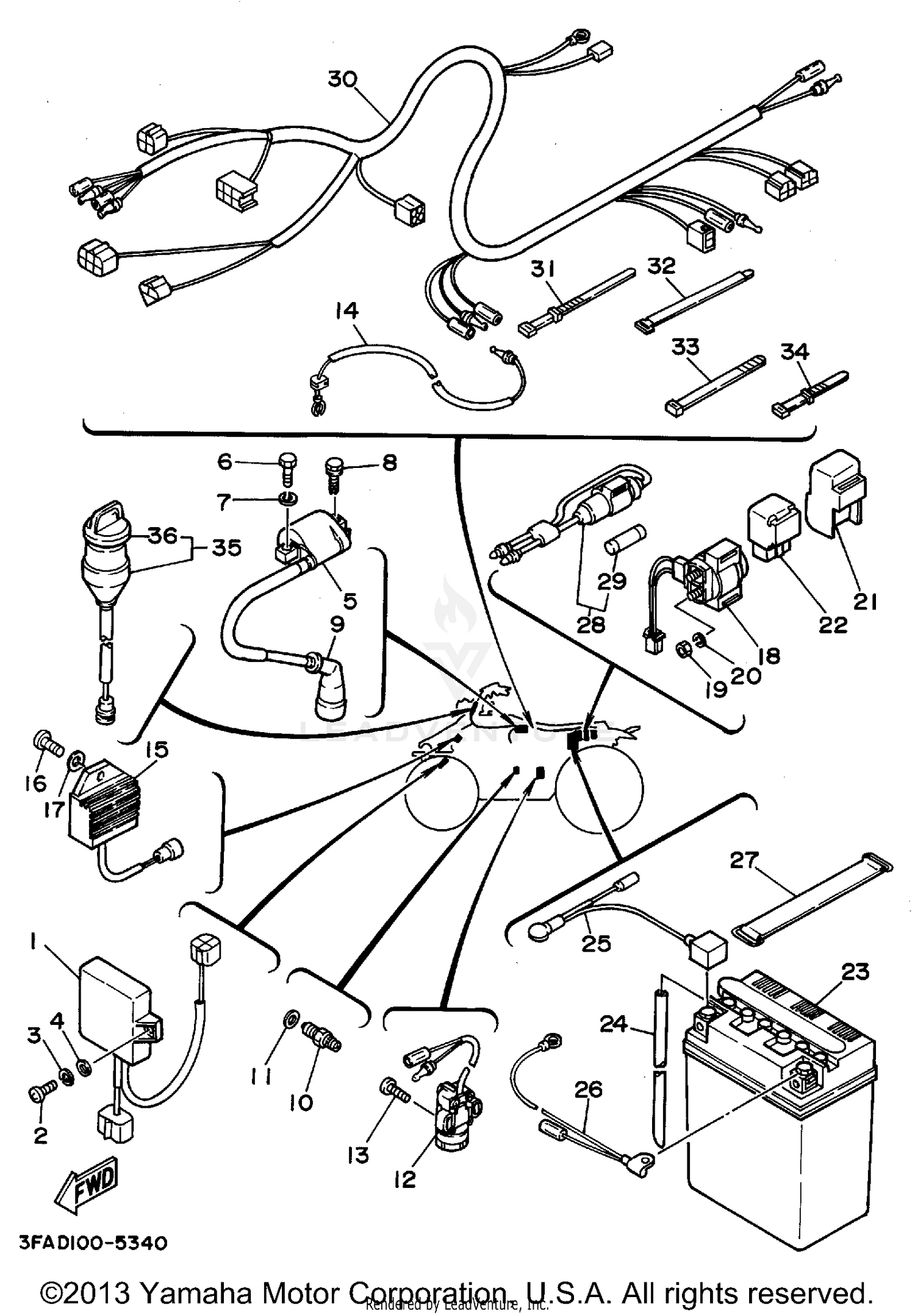

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
3FA-85540-10-00
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
4KJ-82310-00-00
Superseded by 3KJ-82310-13-00
|
$45.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#8
BOLT
90109-06723-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEUTRAL SWITCH ASSY
2H7-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH
3FA-82627-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-05283-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE, LEAD
3FA-82541-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RECTIFIER & REGULATOR ASSEMBLY
3GB-81960-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#18
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#21
RELAY ASSY (29U-93)
29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY (2NL-92)
2NL-81950-92-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ACB12CA GS BATTERY W
BTG-12N12-C4-A2
Superseded by ACB-12CA0-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#24
HOSE (L500)
90445-08338-00
|
$3.61 | ||
|
Unavailable |
|||
|
#25
WIRE, PLUS LEAD
3GH-82115-00-00
Superseded by 1YW-82115-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WIRE, MINUS LEAD
3FA-82116-00-00
Superseded by 1VJ-82116-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#27
BAND, BATTERY
133-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE HOLDER ASSY
3GB-82150-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUSE
3GB-82151-00-00
Superseded by 5G2-82151-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIRE HARNESS ASSEMBLY
3FA-82590-10-00
|
$197.99 | ||
|
Unavailable |
|||
|
#31
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
1UY-82591-00-00
|
$1.20 | ||
|
Unavailable |
|||
|
#34
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
MAIN SWITCH ASSY
4GB-82510-00-00
Superseded by 4GB-82510-12-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
