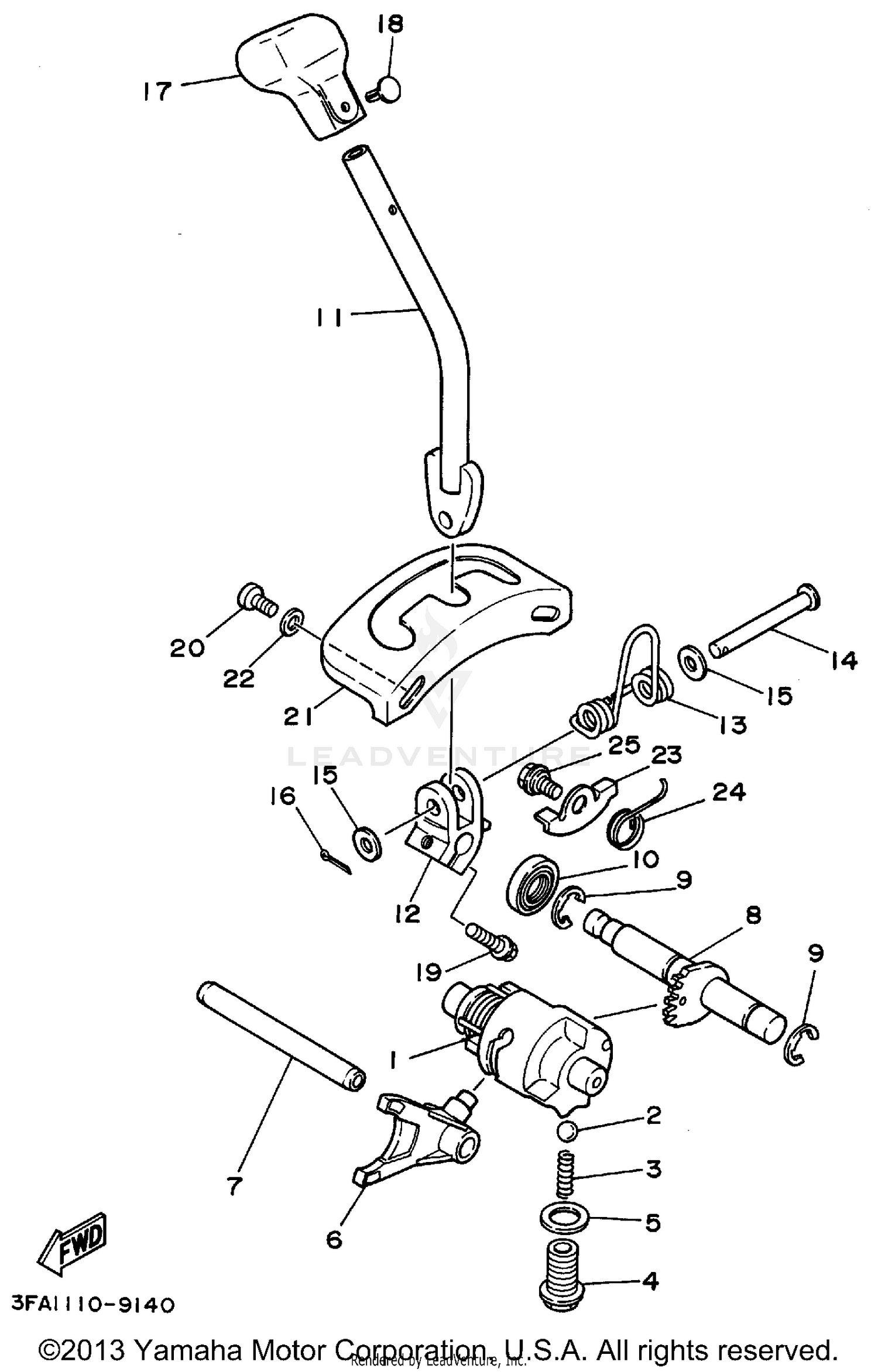

Shift Cam Shift Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSY
3FA-18540-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALL
93503-08007-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-10353-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-14367-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-14194-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FORK, SHIFT 2
4GB-18512-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, SHIFT FORK GUIDE 2
1HX-18535-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFT SHAFT ASSY
3FA-18101-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-14209-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, SHIFT 4
3FA-18152-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, SHIFT
3FA-18164-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-29760-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN
91701-08058-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
KNOB, SHIFT LEVER
3FA-18174-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET
90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95827-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-06142-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET
3FA-18128-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER
3FA-18191-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-12761-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-063F7-00
Superseded by 90109-06190-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
