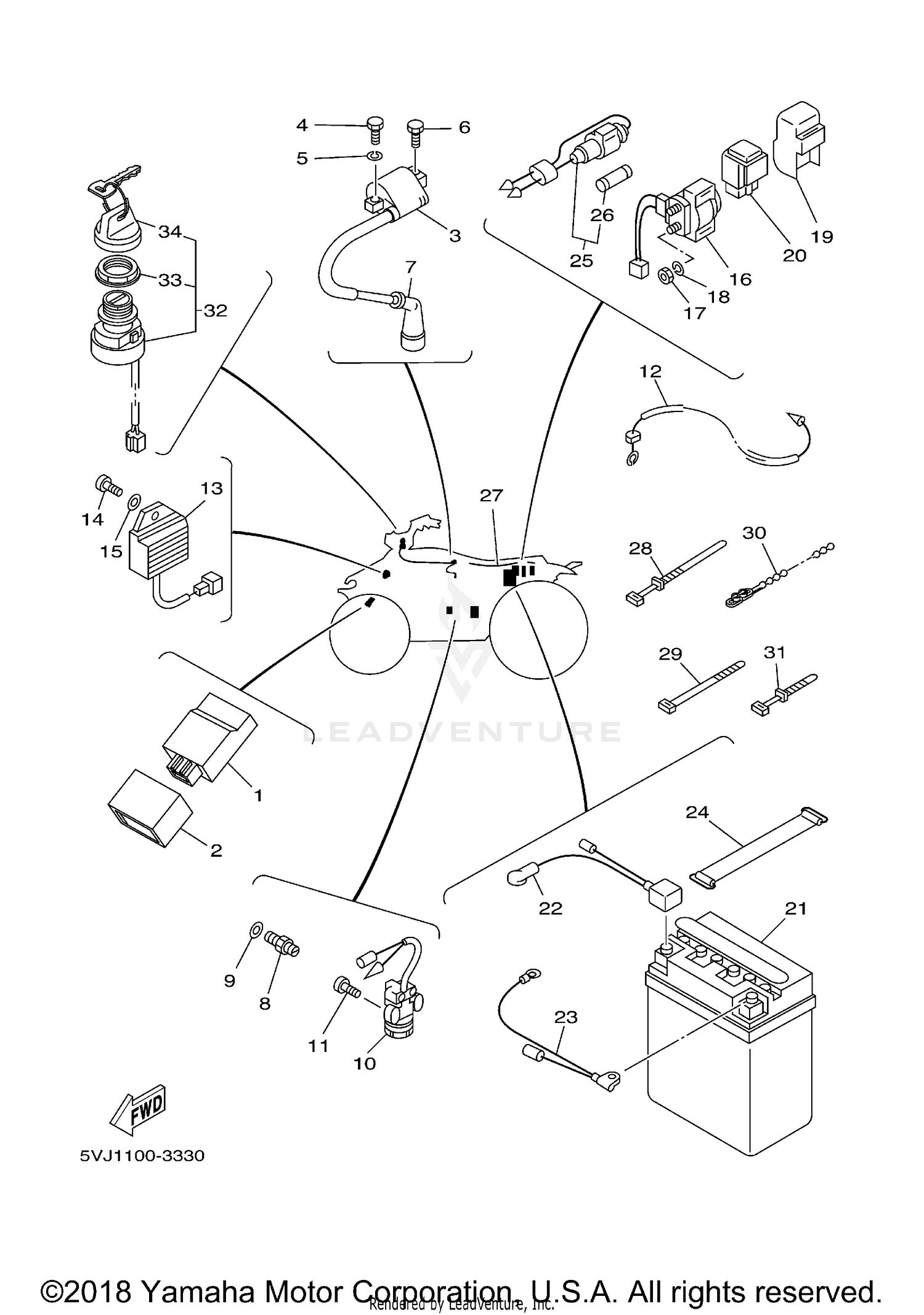

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
3FA-85540-20-00
|
$336.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
5HP-85546-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
4KJ-82310-10-00
Superseded by 3KJ-82310-13-00
|
$45.99 | ||
|
Unavailable |
|||
|
#4
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-06723-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH
3FA-82627-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-05283-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE, LEAD
3FA-82541-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
RECTIFIER & REGULATOR ASSY
3GB-81960-10-00
Superseded by 5TH-81960-01-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#19
RELAY ASSY (ACA12115-1)
29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY ASSY (2NL-92)
2NL-81950-92-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ACB12CA GS BATTERY W
3FA-82110-12-00
Superseded by ACB-12CA0-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#22
WIRE, PLUS LEAD
3FA-82115-00-00
Superseded by 1YW-82115-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRE, MINUS LEAD
3FA-82116-00-00
Superseded by 1VJ-82116-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#24
BAND, BATTERY
133-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE HOLDER ASSY
3GB-82150-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE
3GB-82151-00-00
Superseded by 5G2-82151-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
WIRE HARNESS ASSY
3FA-82590-30-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-20031-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
MAIN SWITCH ASSY
5LP-82510-00-00
Superseded by 5LP-82510-01-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
