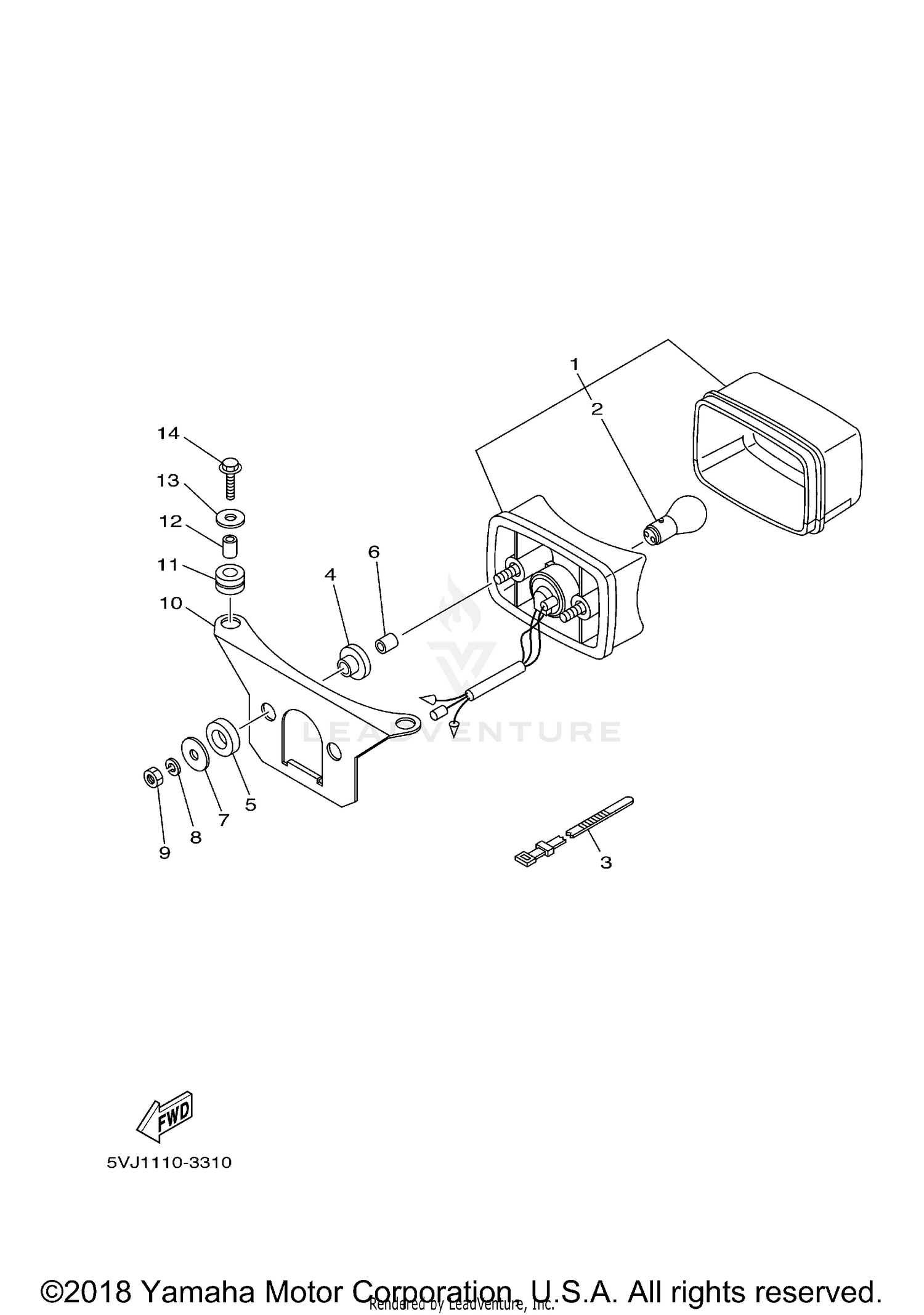

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
3FA-84710-00-00
Superseded by 3FA-84710-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-21/5W)
1A2-84714-41-00
Superseded by 1A2-84714-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-14088-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90202-14077-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
90387-06595-00
Superseded by 90560-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, TAILLIGHT
3FA-84702-10-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-14555-00
Superseded by 90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
