1986 Yamaha BW80S BIG WHEEL CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|

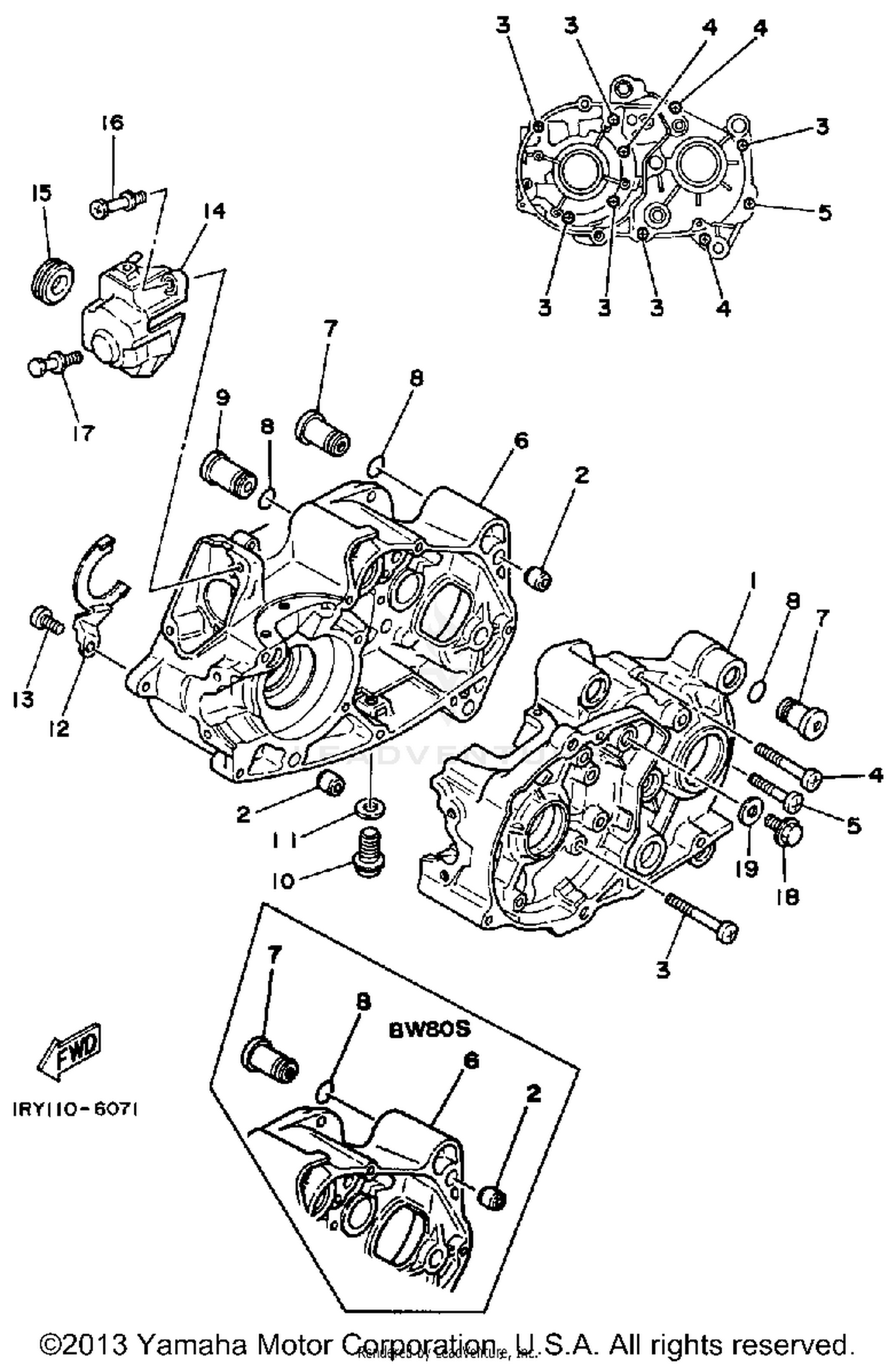

#1
CRANKCASE 1 (1W7-15111-03-00)
1W7-15111-03-00
Superseded by 1W7-15111-09-00
|
$312.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-06550-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKCASE 2
1W7-15121-03-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, ENG MOUNT
1RY-15317-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-12790-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, ENGINE MNT.
1RY-15327-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-12207-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER
300-15128-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
92501-08010-00
Superseded by 98507-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, OIL PUMP
517-15416-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-21436-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06157-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90101-06394-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-10147-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-10031-00
Superseded by 90430-10171-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
