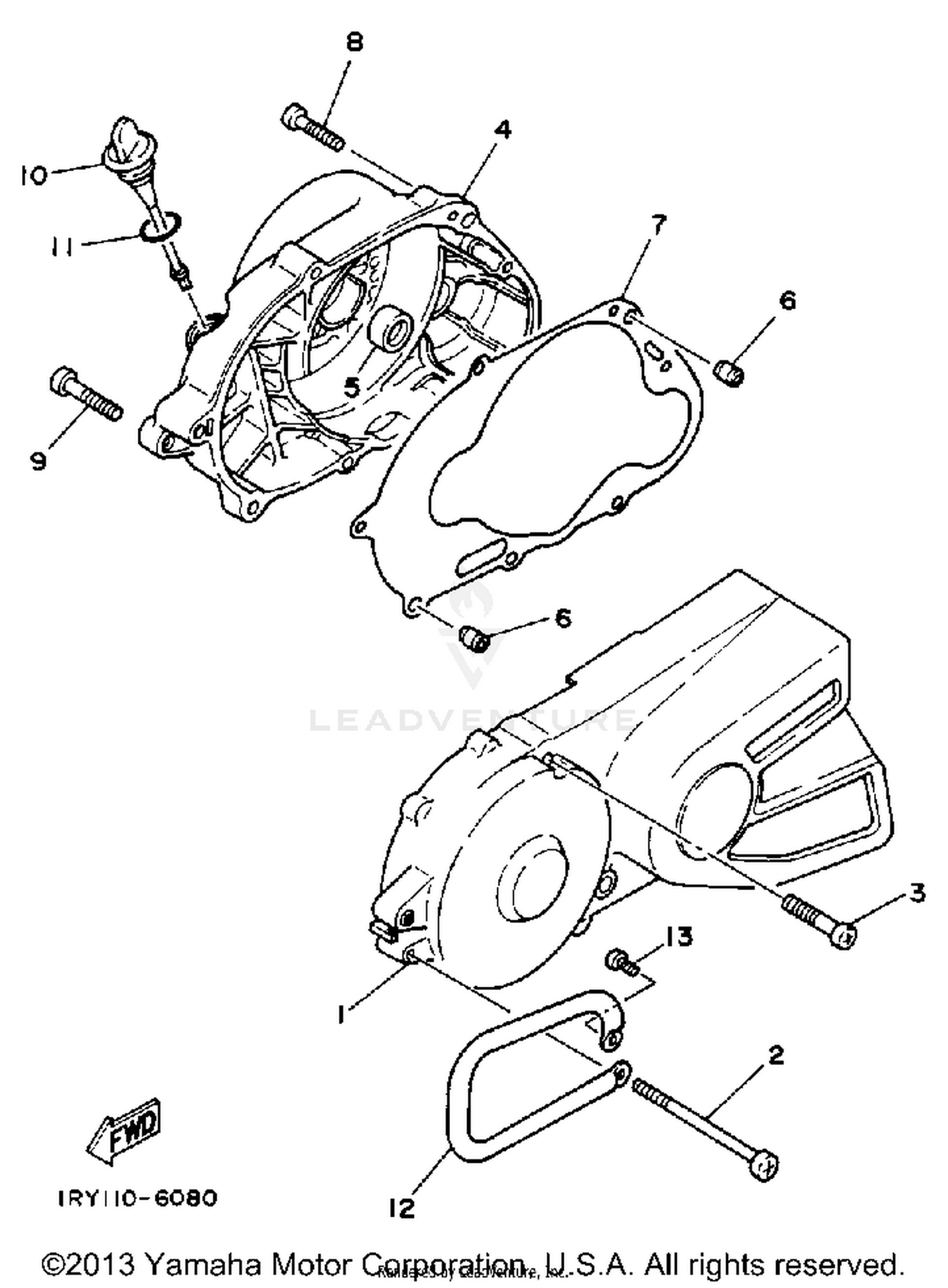

1986 Yamaha BW80S BIG WHEEL CRANKCASE COVER 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
1RY-15411-00-00
|
$184.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98506-06100-00
Superseded by 98507-06100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98506-06045-00
Superseded by 98507-06045-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CRANKCASE 2
5R7-15421-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93104-11053-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CRANKCASE COVER 1
4AW-15451-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, OIL LEVEL
517-15362-02-00
Superseded by 517-15362-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-21190-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR
21W-15491-01-00
Superseded by 4BC-15491-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
