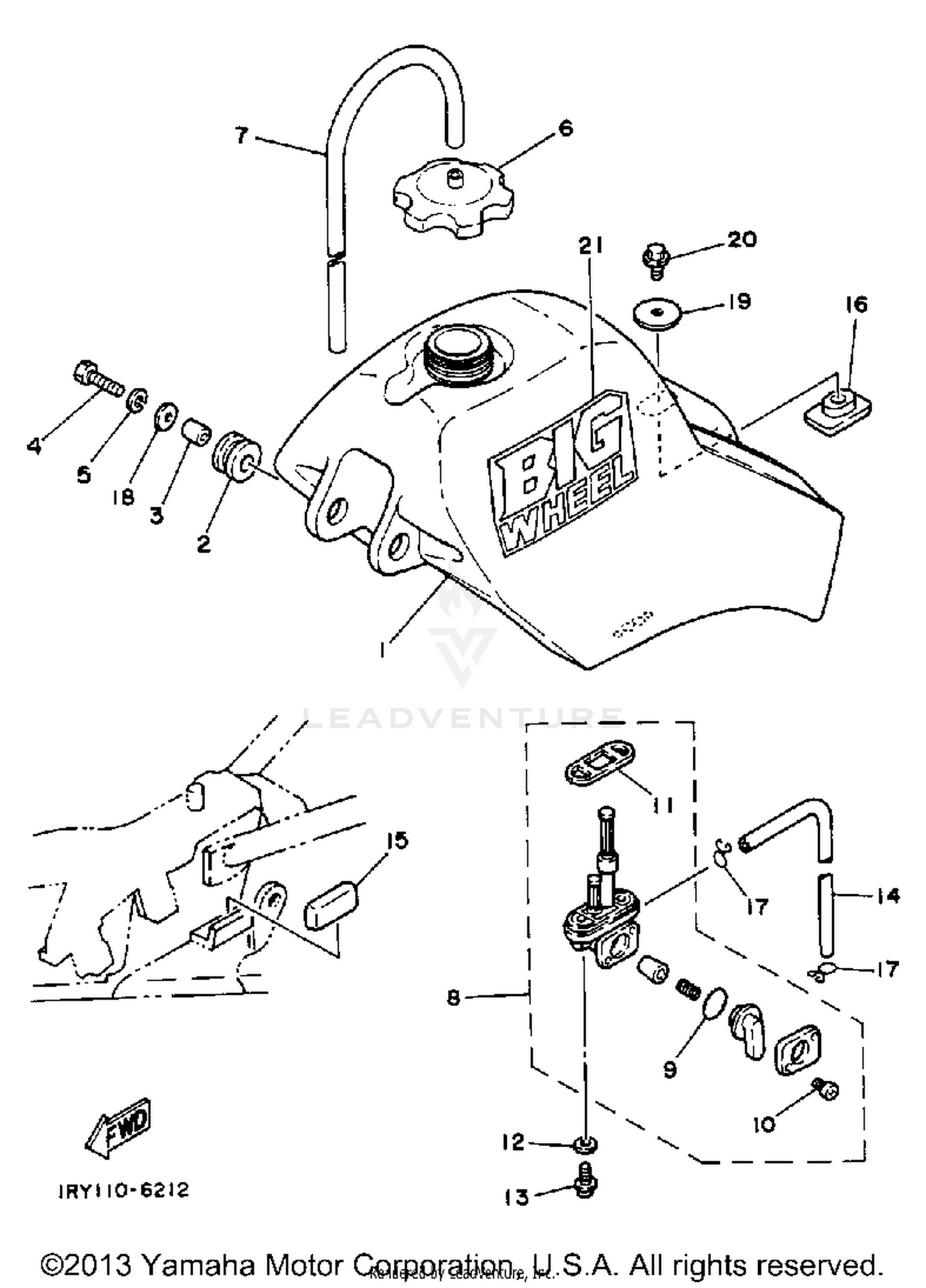

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1RY-24110-00-00
|
$464.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
2FG-24610-00-00
Superseded by 2FG-24610-10-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUEL COCK ASSEMBLY 1
36R-24500-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
1A0-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, LEVER FITTING
619-24535-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#11
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 5
90445-09083-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
DAMPER, LOCATING 1
21W-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, LOCATING 1
1A0-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-06072-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-06074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
GRAPHIC, FUEL TNK 7
1RY-24254-30-00
|
$71.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 7
1RY-24254-40-00
|
$33.24 | ||
|
Unavailable |
|||
