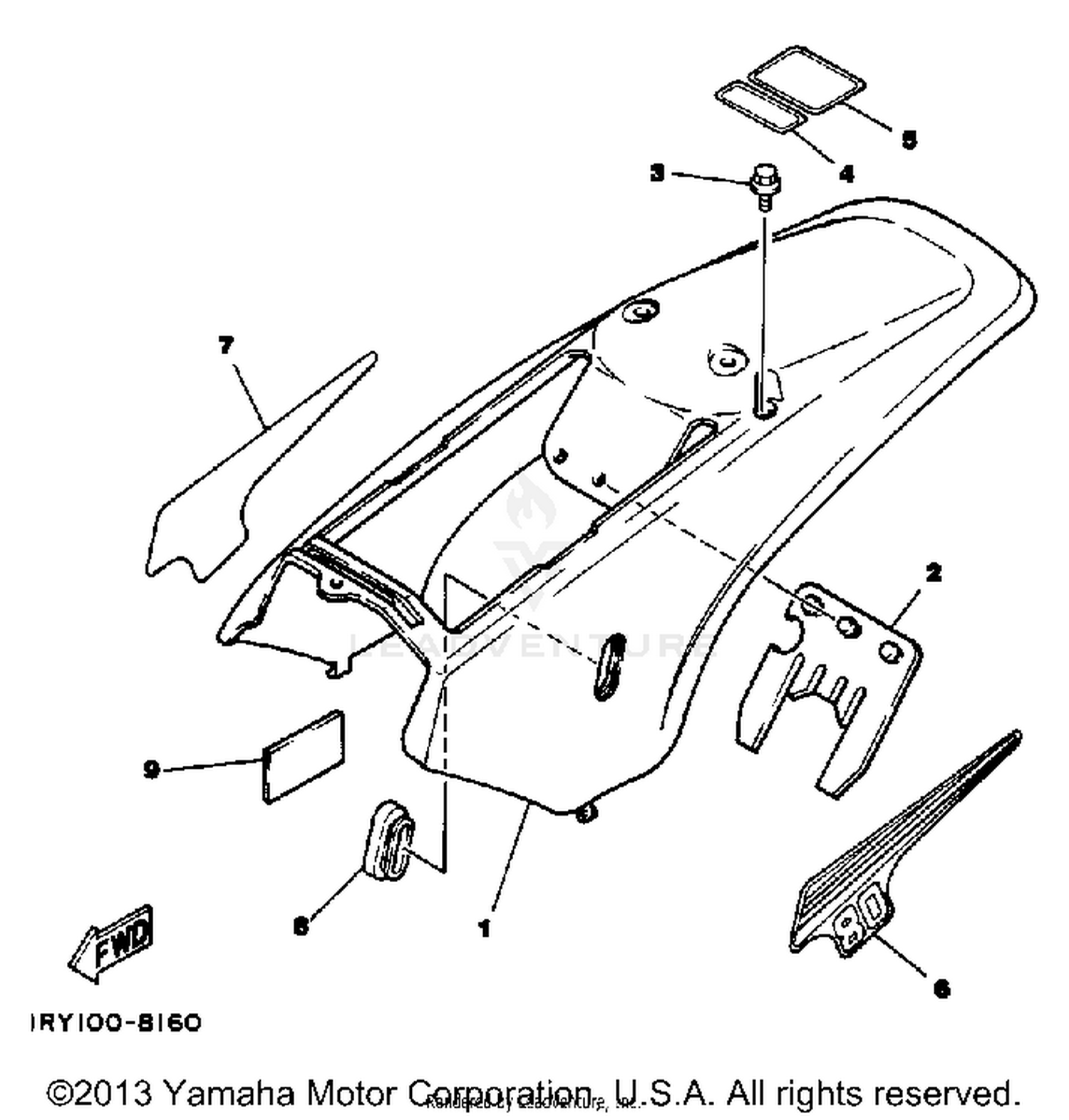

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
1RY-21711-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#2
FLAP
4V0-21621-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
SCREW, WITH WASHER
90159-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LABEL, SAFETY
288-21659-00-00
|
$1.95 | ||
|
Unavailable |
|||
|
#5
LABEL, SAFETY
21W-21659-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
EMBLEM 1
1RY-21781-30-00
|
$46.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 1
1RY-21781-40-00
|
$31.99 | ||
|
Unavailable |
|||
|
#7
EMBLEM 2
1RY-21782-30-00
|
$31.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 2
1RY-21782-40-00
|
$31.99 | ||
|
Unavailable |
|||
|
#8
GROMMET
1RY-21719-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#9
INSULATOR
1RY-2174A-00-00
Superseded by 1RY-2174A-01-00
|
$3.55 | ||
|
Unavailable |
|||
