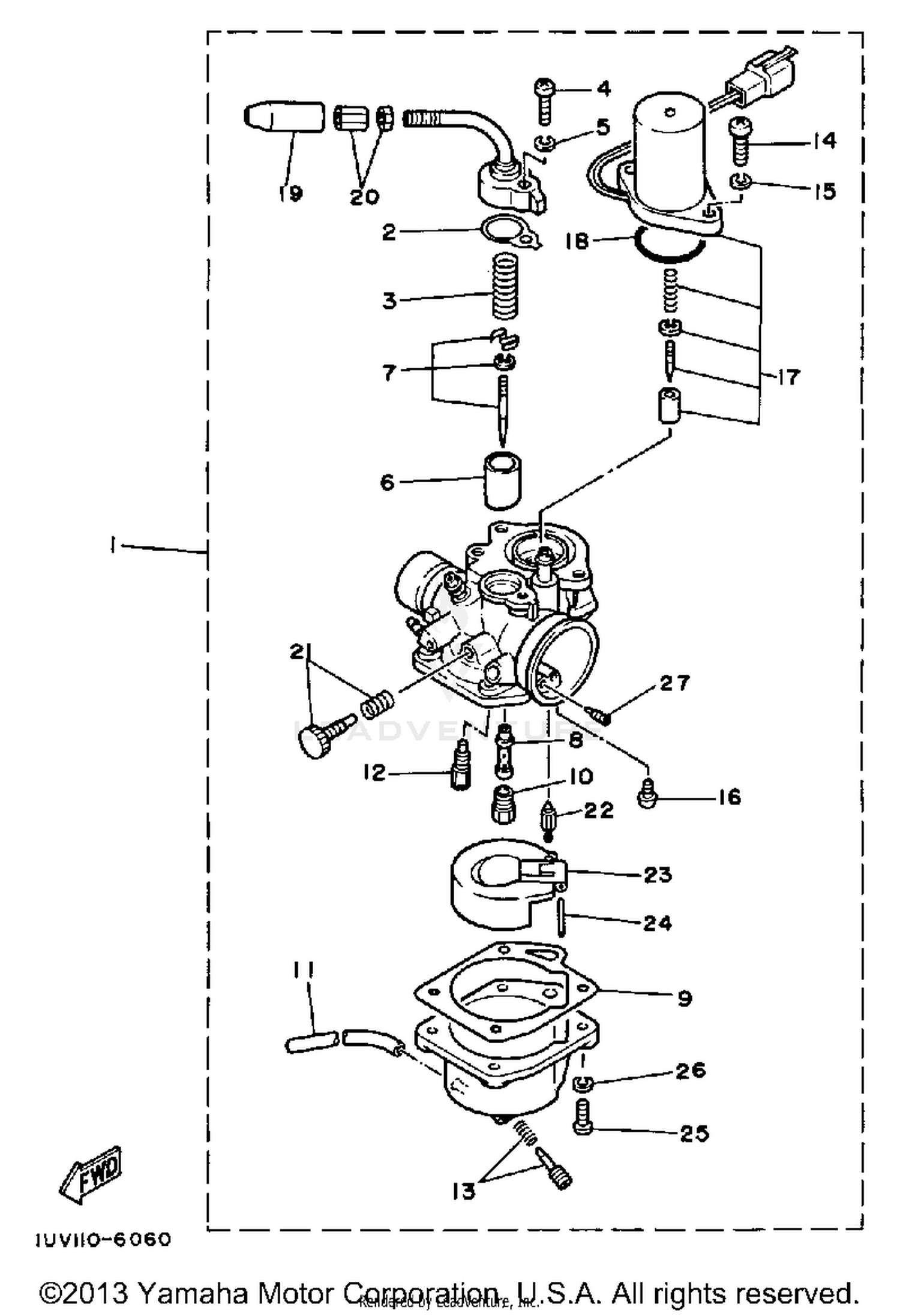

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARB. ASSEMBLY
1UV-14301-01-00
|
$204.99 | ||
|
Unavailable |
|||
|
#2
GASKET
2T4-14126-01-00
Superseded by 2T4-14126-02-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, THROTTLE VALVE
2T4-14331-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, THROTTLE 1
14T-14312-30-00
|
$33.99 | ||
|
Unavailable |
|||
|
#7
NEEDLE SET
27V-1490J-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#8
NOZZLE, MAIN
33A-14341-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#9
GASKET, FLOAT CHAMBER
14T-14384-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET, MAIN (82)
14T-14343-41-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE
36F-14396-00-00
|
$7.55 | ||
|
Unavailable |
|||
|
#12
JET, PILOT 42
14T-14353-21-00
|
$4.22 | ||
|
Unavailable |
|||
|
#13
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
STARTER SET
1KX-1410A-09-00
Superseded by 1GJ-1410A-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#18
O-RING
1HV-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP
1UV-14169-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE ADJUST SCREW SET
1UV-14106-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#21
THROTTLE SCREW SETSET
14T-14103-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#22
VALUE, NEEDLE
14T-14392-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLOAT
1HV-14385-00-00
Superseded by 1HV-14385-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, FLOAT
367-14386-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, spring
92990-10410-00
|
|||
|
Unavailable |
|||
|
#27
JET, AIR SLOW
680-14347-52-00
|
$7.99 | ||
|
Unavailable |
|||
