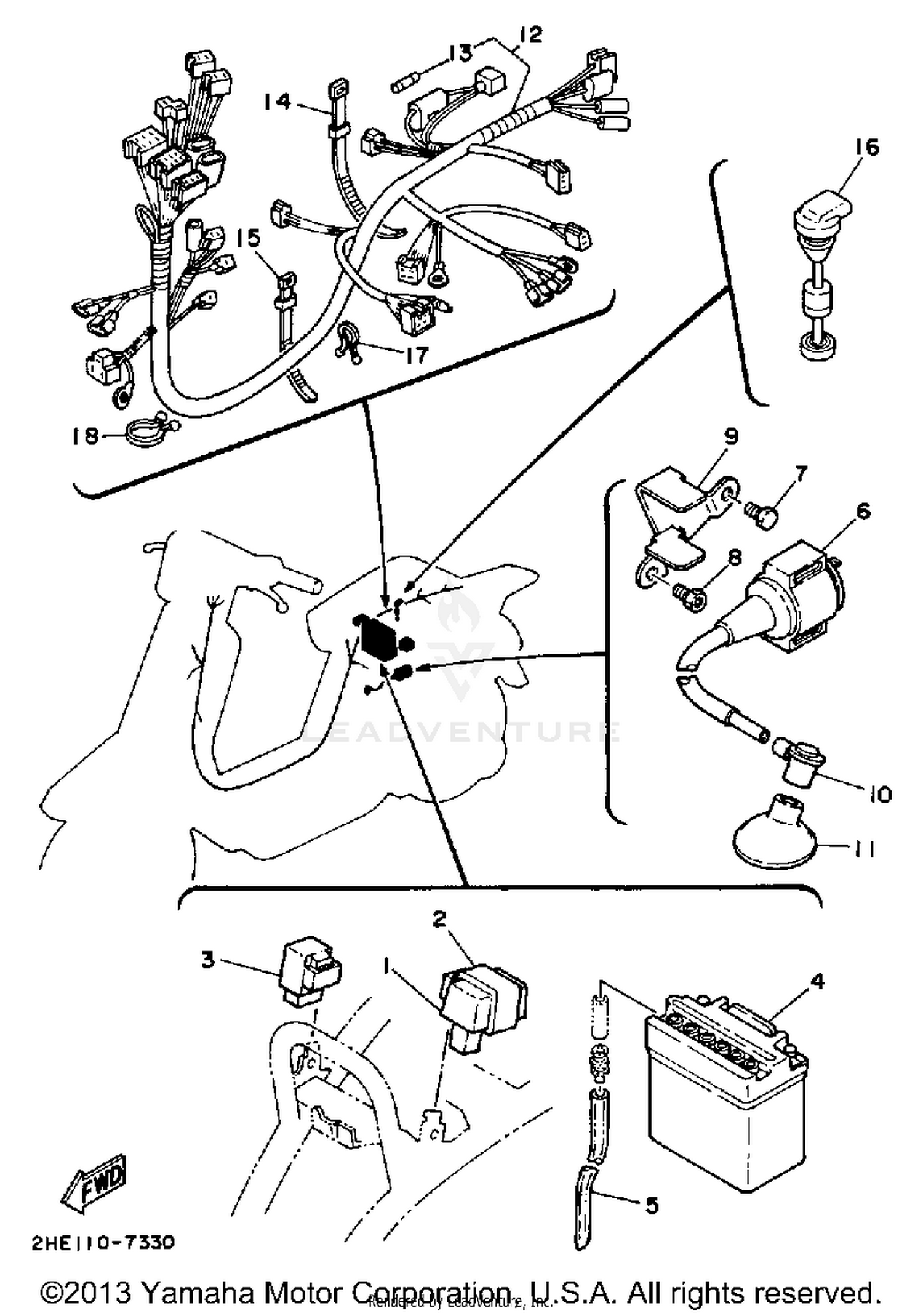

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI UNIT ASSEMBLY
25L-85540-M0-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
25K-85546-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#3
RELAY ASSY (29U-93)
53L-81940-01-00
Superseded by 29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
YB4LB YUASA BATTERY
BTG-GM43B-00-00
Superseded by YB4-LB000-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, BREATHER
27V-82112-00-00
|
$1.57 | ||
|
Unavailable |
|||
|
#6
IGNITION COIL ASSY
2EX-82310-M0-00
|
$130.99 | ||
|
Unavailable |
|||
|
#7
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, HEXAGON
90153-06044-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, IGN COIL
2EX-82316-00-00
|
$3.14 | ||
|
Unavailable |
|||
|
#10
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, PLUG CAP
27V-82372-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
WIRE HARNESS ASSEMBLY
2HE-82590-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#13
FUSE
27V-82151-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL LVL GAUGE ASSEMBLY
25K-85720-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#17
CLAMP
90465-18147-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
