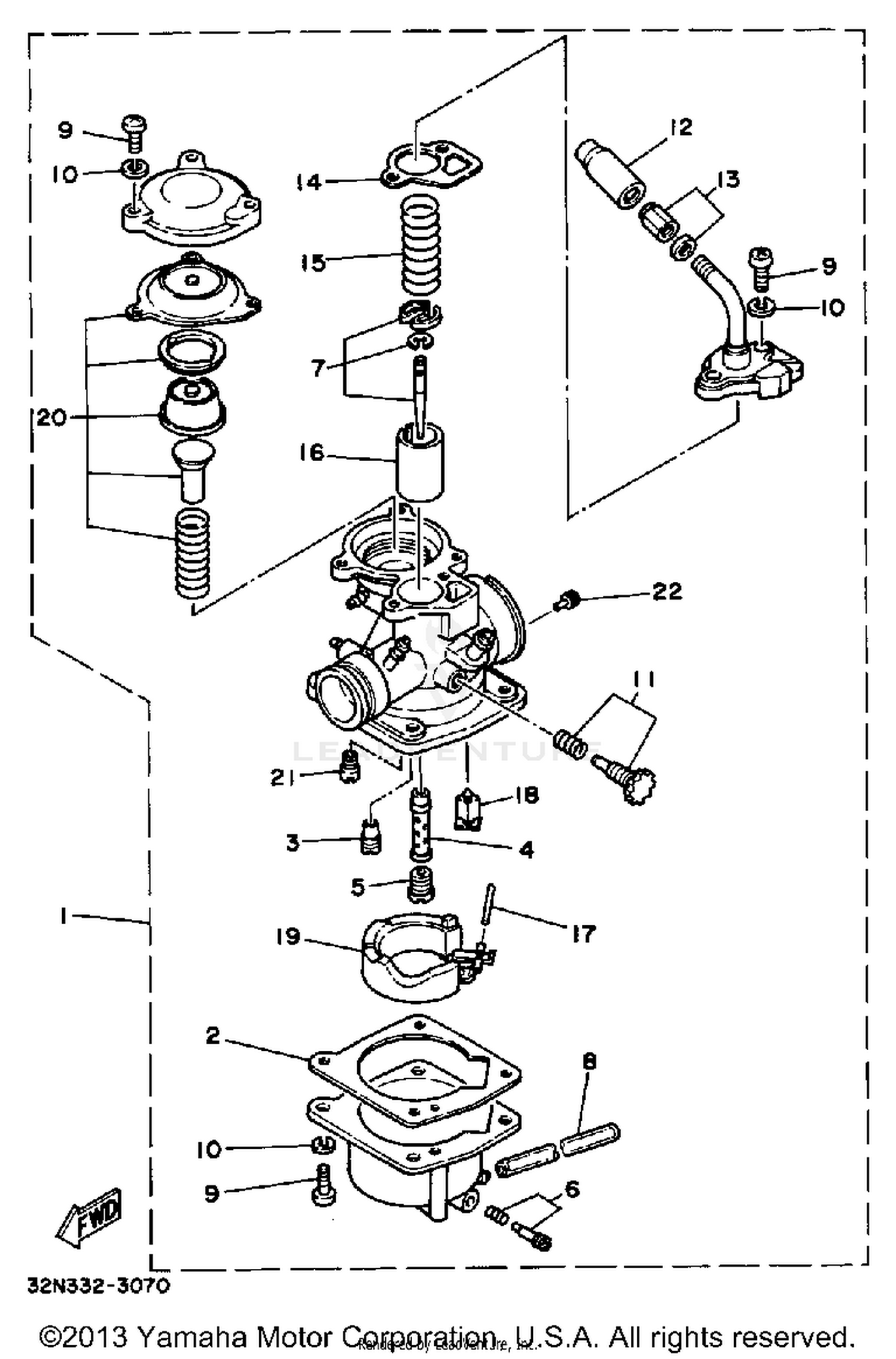

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
32Y-14101-01-00
|
$184.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHMBR
32N-14184-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#3
JET, PILOT #27.5
193-14142-27-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE, MAIN
22F-14141-10-00
|
$19.99 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#95)
18A-14143-19-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR SCREW SET
17L-14104-00-00
Superseded by 36R-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE SET
32Y-1490J-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#8
PIPE, OVERFLOW
32N-14196-00-00
|
$3.92 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
THROTTLE SCREW SET
17L-14103-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#12
CAP
1R0-14169-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE ADJUST SCREW SET
17L-14106-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
32N-14198-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#15
SPRING, THRTL VALVE
32N-14131-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#16
VALVE, THROTTLE 1
32N-14112-35-00
|
$30.99 | ||
|
Unavailable |
|||
|
#17
PIN, FLOAT
620-14186-00-00
|
$3.15 | ||
|
Unavailable |
|||
|
#18
NEEDLE VALVE ASSEMBLY
17L-14190-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
VALVE, FLOAT
517-14190-15-00
|
$37.99 | ||
|
Unavailable |
|||
|
#19
FLOAT
32N-14185-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUNGER SET
17L-1490N-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#21
JET, MAIN 45
256-14944-09-00
|
$2.54 | ||
|
Unavailable |
|||
|
#22
PILOT JET, AIR #1.1
239-14172-11-00
|
$4.05 | ||
|
Unavailable |
|||
