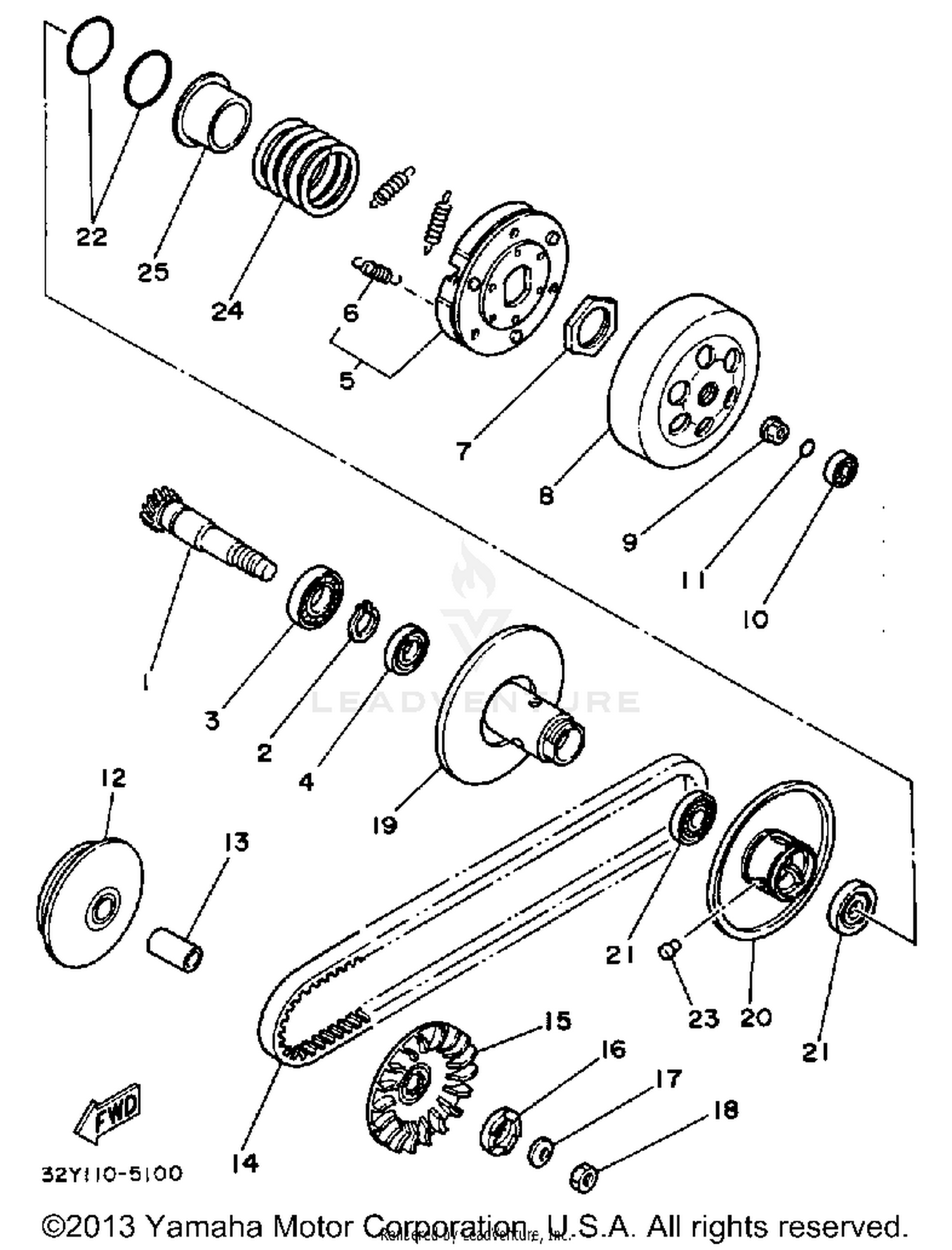

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRI DRV GEAR ASSEMBLY
32N-16110-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
93410-25010-00
Superseded by 99009-25400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00510-00
Superseded by 93306-00519-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL, SD-TYPE
93102-25395-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH CARRIER ASY
32N-16620-00-00
Superseded by 32N-16620-01-00
|
$203.99 | ||
|
Unavailable |
|||
|
#6
SPRING, CLUTCH WT 1
32N-16626-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
NUT
90170-36279-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOUSING, CLUTCH
32N-16611-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#9
NUT
90179-14427-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-00108-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-08287-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
PRIMARY SHEAVE ASSEMBLY
48N-17601-00-00
|
$236.99 | ||
|
Unavailable |
|||
|
#13
COLLAR
90387-167H4-00
|
$9.99 | ||
|
Unavailable |
|||
|
#14
V-BELT
32N-17641-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHEAVE, PRI FIXED
32N-17611-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#16
CLUTCH, ONE
5G3-15657-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#17
WASHER, CONICAL SPRING
90208-10012-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEC FXD SHV
32N-17660-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#20
SEC SLIDING SHEAVE
32N-17670-01-00
|
$79.99 | ||
|
Unavailable |
|||
|
#21
OIL SEAL
93109-41062-00
Superseded by 93104-41119-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-46593-00
|
$2.45 | ||
|
Unavailable |
|||
|
#23
PIN, GUIDE
24G-17664-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, COMPRESSION
90501-40757-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
SEAT, SEC SPRING
32N-17684-00-00
|
$21.99 | ||
|
Unavailable |
|||
