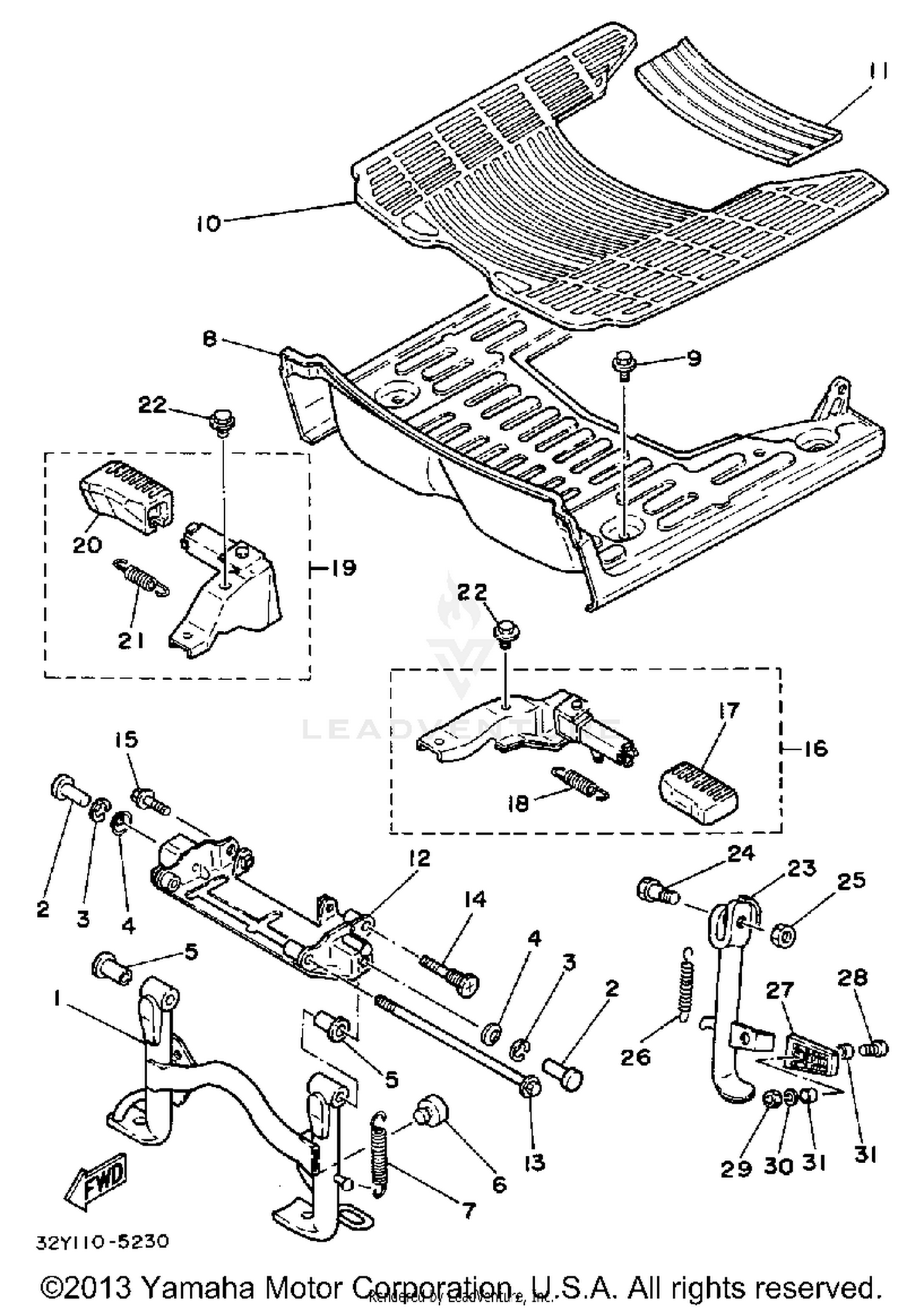

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
43U-27111-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#2
PIN, SPEC''L SHAPE
90249-12149-00
|
$1.57 | ||
|
Unavailable |
|||
|
#3
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, CONICAL SPRING
90208-12027-00
|
$2.95 | ||
|
Unavailable |
|||
|
#5
COLLAR, MAIN STAND
17L-27113-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
STOPPER, MAIN STAND
5G3-27114-00-00
Superseded by 371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-29273-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
BOARD, FOOTREST
5G3-27481-01-T2
|
$93.99 | ||
|
Unavailable |
|||
|
#9
BOLT, WITH WASHER
90119-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
MAT 1
5G3-27483-01-00
|
$63.99 | ||
|
Unavailable |
|||
|
#11
MAT 2
5G3-27484-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#12
BRACKET, MAIN STAND
5G3-27151-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#13
BOLT, WASHER BASED
90105-08296-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-08017-00
Superseded by 90105-08521-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-08121-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RR FOOTREST ASSEMBLY 1
5G3-27430-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#17
COVER, RR FOOTREST
5G3-27433-01-00
|
$3.72 | ||
|
Unavailable |
|||
|
#18
SPRING, TENSION
90506-14257-00
Superseded by 90506-14081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
RR FOOTREST ASSEMBLY 2
5G3-27440-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#20
COVER, RR FOOTREST
5G3-27444-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
SPRING, TENSION
90506-14257-00
Superseded by 90506-14081-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAND, SIDE
32Y-27311-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#24
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TENSION
90506-20362-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
COVER, FOOTREST 1
25G-27453-00-00
|
$6.56 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98506-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
95316-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER
90560-06244-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
