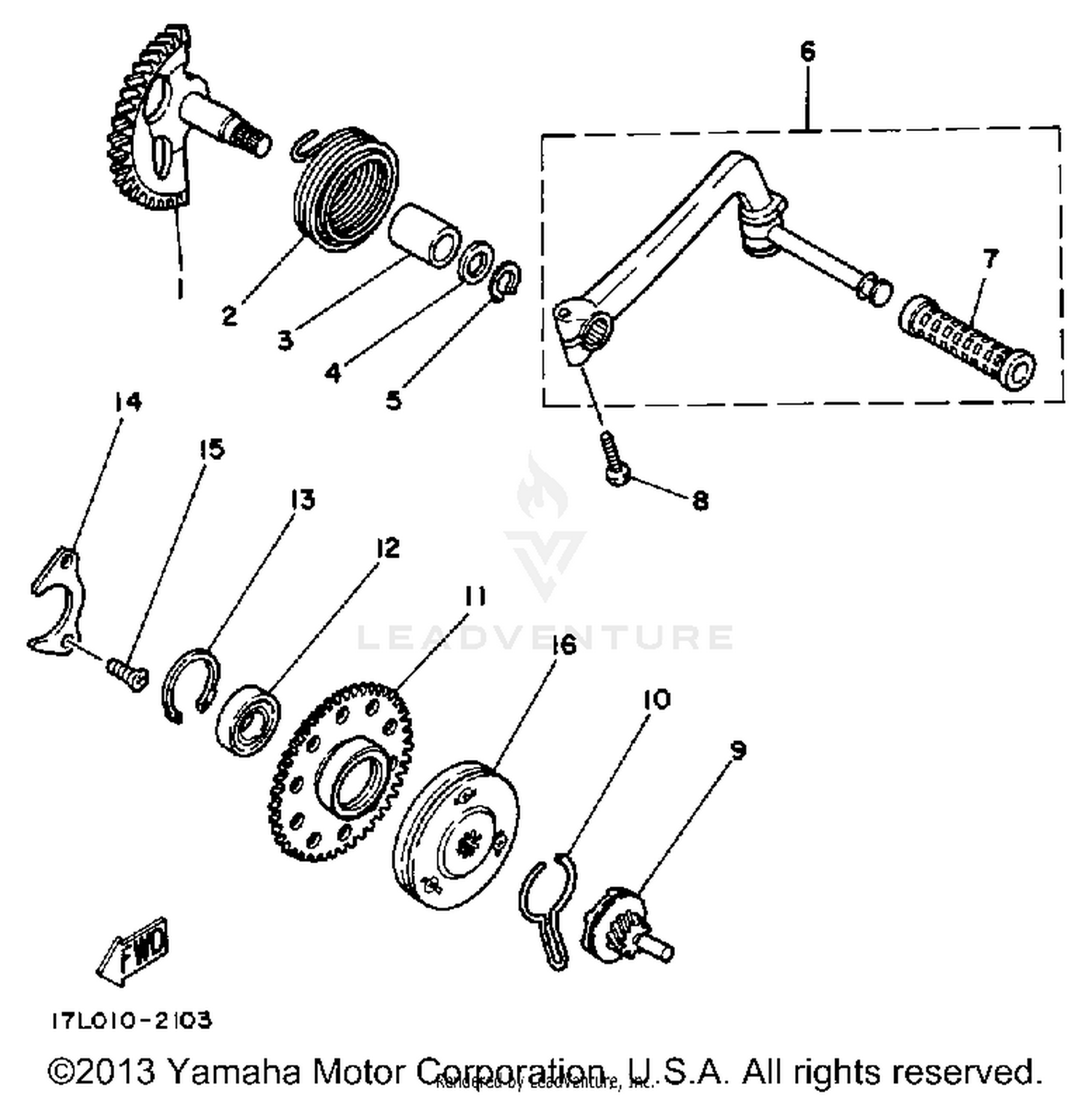

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK SHAFT ASSEMBLY. (32N-15601
2GL-15601-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-32609-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, SOLID
90380-15083-00
Superseded by 90380-15817-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-154E9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
KICK CRANK ASSEMBLY
5G3-15620-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#7
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
KICK PINION ASSEMBLY
32N-15630-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#10
CLIP
32N-15673-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL, STARTER (66T)
17M-15524-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-00319-00
Superseded by 93306-00316-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93450-35015-00
Superseded by 93450-35163-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
17M-15118-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STARTER CLUTCH ASY
24G-15570-00-00
Superseded by 24G-15570-01-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
