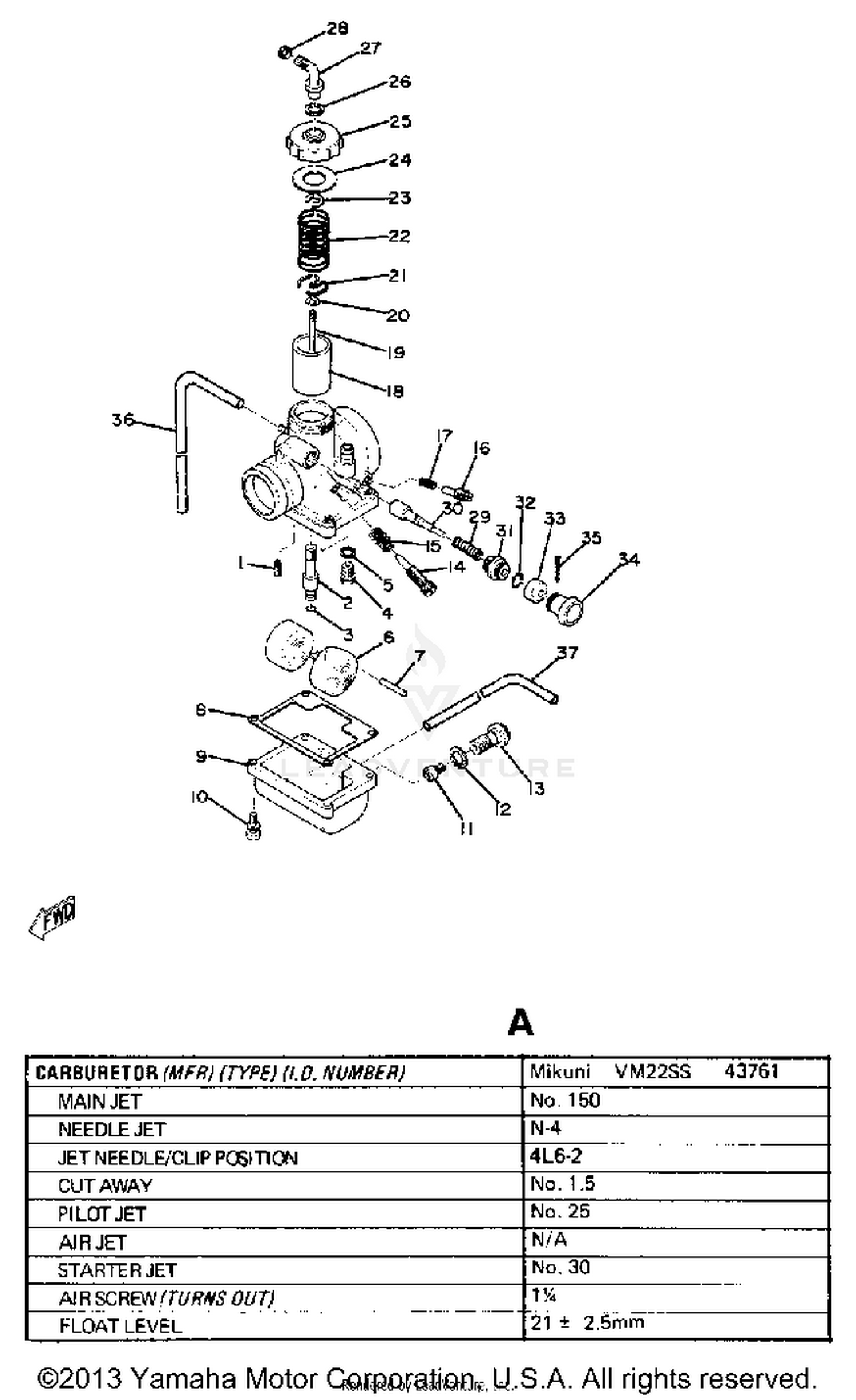

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JET, PILOT (# 25)
260-14142-25-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
540-14101-60-00
|
$47.56 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1 (437-1410
437-14101-62-00
|
$155.99 | ||
|
Unavailable |
|||
|
#2
NOZZLE, MAIN
437-14141-24-00
|
$14.42 | ||
|
Unavailable |
|||
|
#3
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE VALVE ASSEMBLY
353-14190-15-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
127-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
304-14185-00-00
Superseded by 4NR-14185-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, FLOAT CHAMBER
304-14184-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BODY, FLOAT CHMBR 1
437-14181-00-33
|
$17.49 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, MAIN (#140)
137-14143-28-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #150
137-14143-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #160
137-14143-32-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
304-14198-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BANJO
248-14166-00-00
Superseded by 479-14166-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#14
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
THROTTLE SCREW SET
23X-14103-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, THROTTLE STOP
137-14133-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AIR SCREW SET
22K-14104-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, AIR ADJUSTING
174-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE, THROTTLE 1
304-14112-15-00
|
$77.99 | ||
|
Unavailable |
|||
|
#19
NEEDLE
18L-1490J-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT, SPRING
137-14136-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#22
SPRING, THRTL VALVE
3X3-14131-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
193-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
TOP, MIXING CHAMBER
437-14158-00-33
|
$7.68 | ||
|
Unavailable |
|||
|
#26
GASKET
363-14198-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GUIDE, CABLE
363-14155-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#28
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUNGER, STARTER
304-14171-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, PLUNGER
152-14138-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
COVER, PLUNGER CAP
132-14173-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER
304-14261-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE, AIRVENT
183-14197-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE, AIRVENT
23F-14197-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
