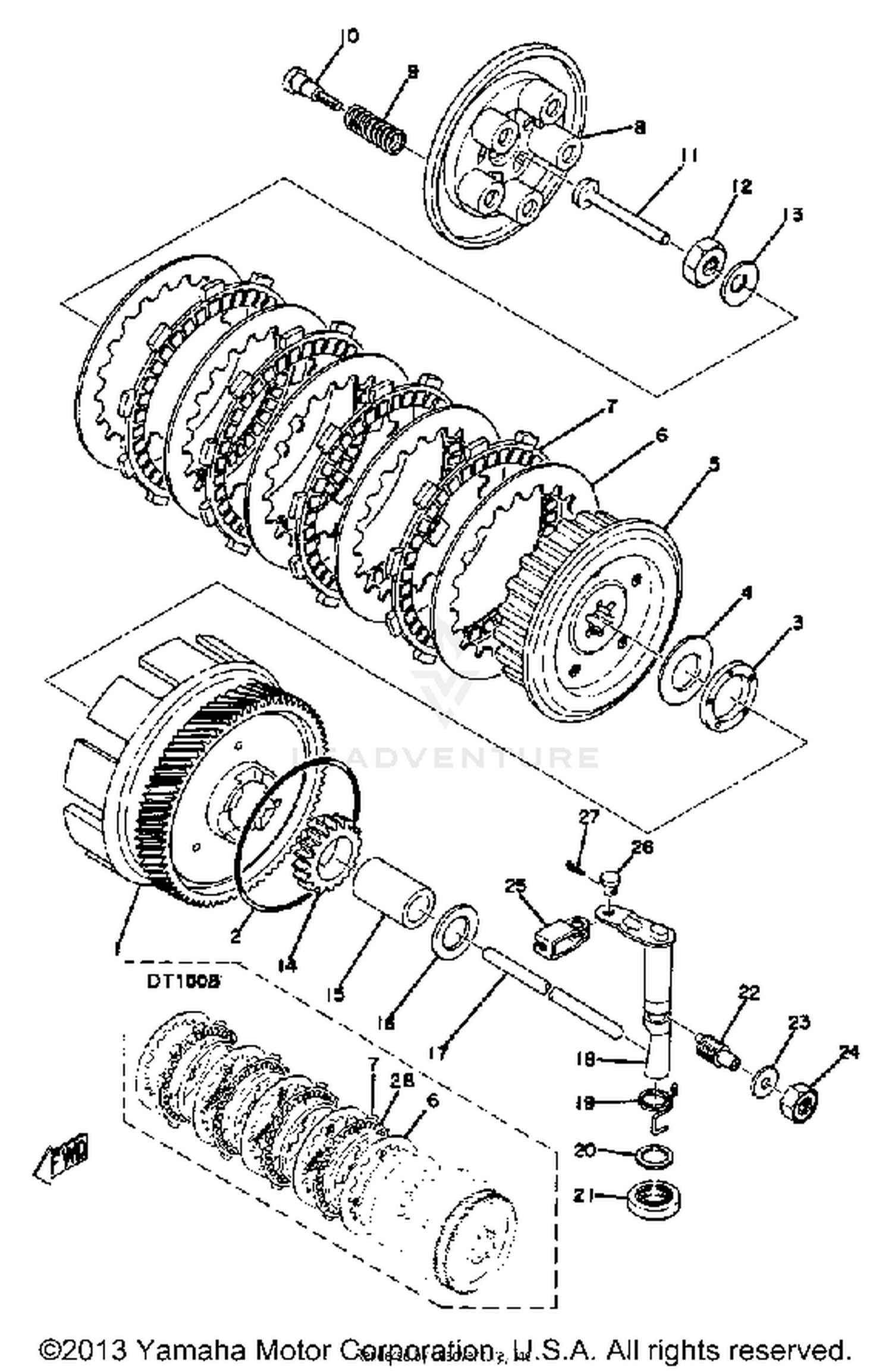

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
403-16301-01-00
|
$138.99 | ||
|
Unavailable |
|||
|
#
PRI DRVN GEAR
403-16150-00-00
|
$86.94 | ||
|
Unavailable |
|||
|
#
CLUTCH ASSEMBLY
437-16301-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#2
RING, FRICTION
132-16369-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93341-22302-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, THRUST 1
276-16154-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#5
BOSS, CLUTCH
132-16371-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH 1
137-16324-00-00
Superseded by 336-16324-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
PLATE, CLUTCH 1
336-16324-00-00
Superseded by 336-16324-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
PLATE, FRICTION
132-16321-01-00
Superseded by 3HA-16321-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLATE,FRICTION
401-16321-00-00
Superseded by 401-16321-09-00
|
$17.99 | ||
|
Unavailable |
|||
|
#8
PLATE, PRESSURE 1
132-16351-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION (137-1633
90501-20124-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SPECL SHAPE
90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#11
ROD, PUSH 1
137-16356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, KICK PINION
254-15631-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#15
SPACER
90560-17146-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, THRUST 2
122-16164-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
403-16357-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#18
AXLE, PUSH LEVER
401-16382-02-00
|
$48.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TORSION
90508-14132-00
|
$4.85 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, ADJUSTING
364-16343-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, ADJUSTING
583-16344-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#28
RING, CUSHION
137-16367-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
