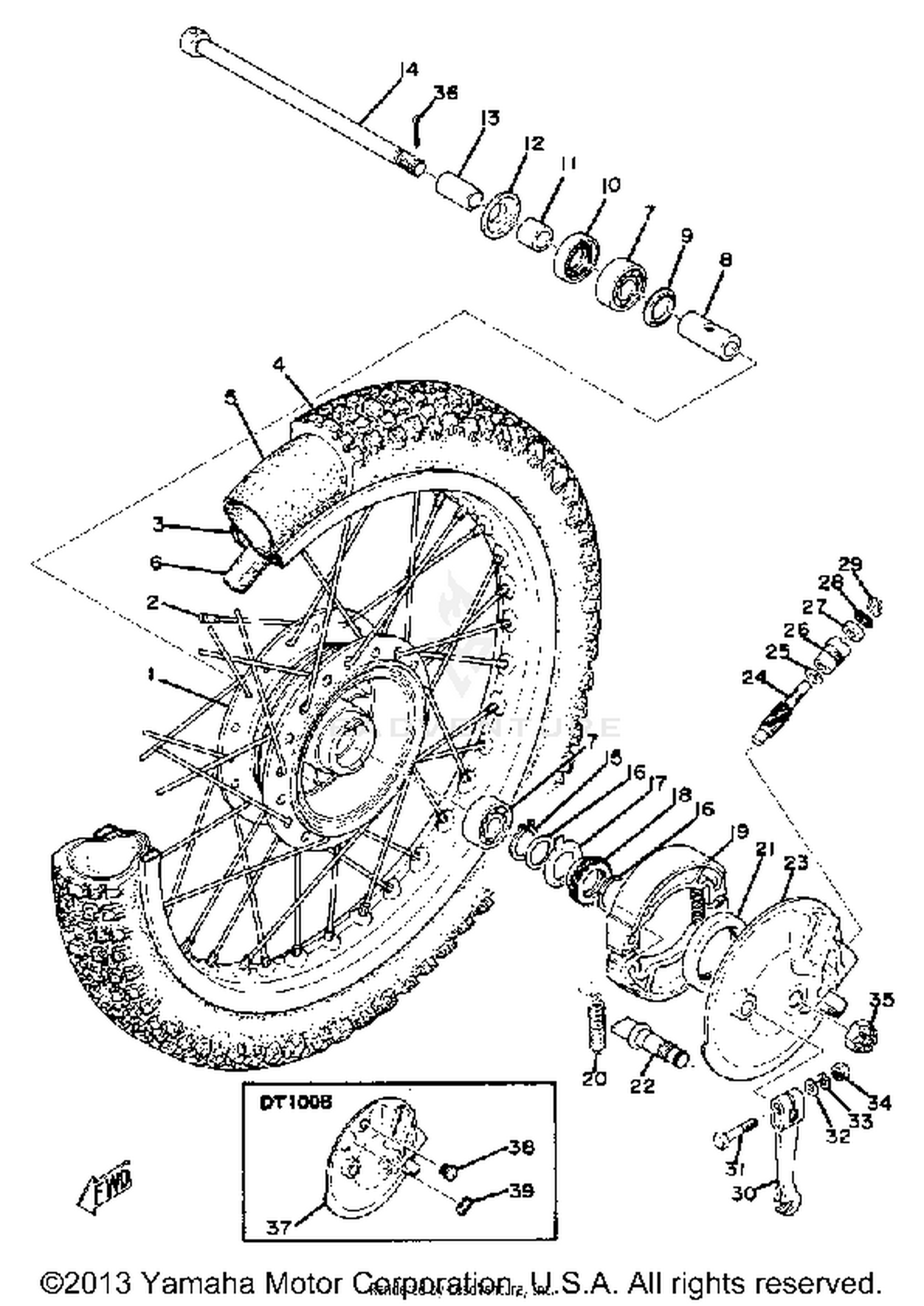

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-38
Superseded by 248-25111-10-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, INNER 1
276-25196-80-00
|
$6.04 | ||
|
Unavailable |
|||
|
#
SPOKE SET, FRONT
276-25104-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 1
276-25197-80-00
|
$6.04 | ||
|
Unavailable |
|||
|
#3
RIM (1.40-19)
94414-19056-00
Superseded by 94414-19003-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
275X19 YOKO Y620
94127-19321-00
|
$31.99 | ||
|
Unavailable |
|||
|
#5
TUBE (2.75-19)(3GX)
94227-19037-00
Superseded by 94227-19292-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (2.00-19)
94325-19027-00
Superseded by 94327-19111-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNAVAILABLE IN PRICE BOOK
109-25115-00-00
|
|||
|
Unavailable |
|||
|
#10
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-12099-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, WHEEL (427-25181-00)
427-25181-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
UNAVAILABLE IN PRICE BOOK
301-36246-00-00
|
|||
|
Unavailable |
|||
|
#19
BRAKESHOE SET-2PCS (326-25330-1
326-W2536-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#
BRAKESHOE SET
22F-W2534-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#20
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAMSHAFT
122-25351-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#
NO LONGER AVAILABLE
437-25151-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#23
BRAKE SHOE PLT ASSEMBLY
437-25120-10-00
|
$44.99 | ||
|
Unavailable |
|||
|
#24
GEAR, METER
301-25138-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER, CAMSHAFT 1
137-25155-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PIN, COTTER
91401-30075-00
|
$0.60 | ||
|
Unavailable |
|||
|
#37
BRAKE SHOE PLT ASSEMBLY
437-25120-10-00
|
$44.99 | ||
|
Unavailable |
|||
|
#38
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
