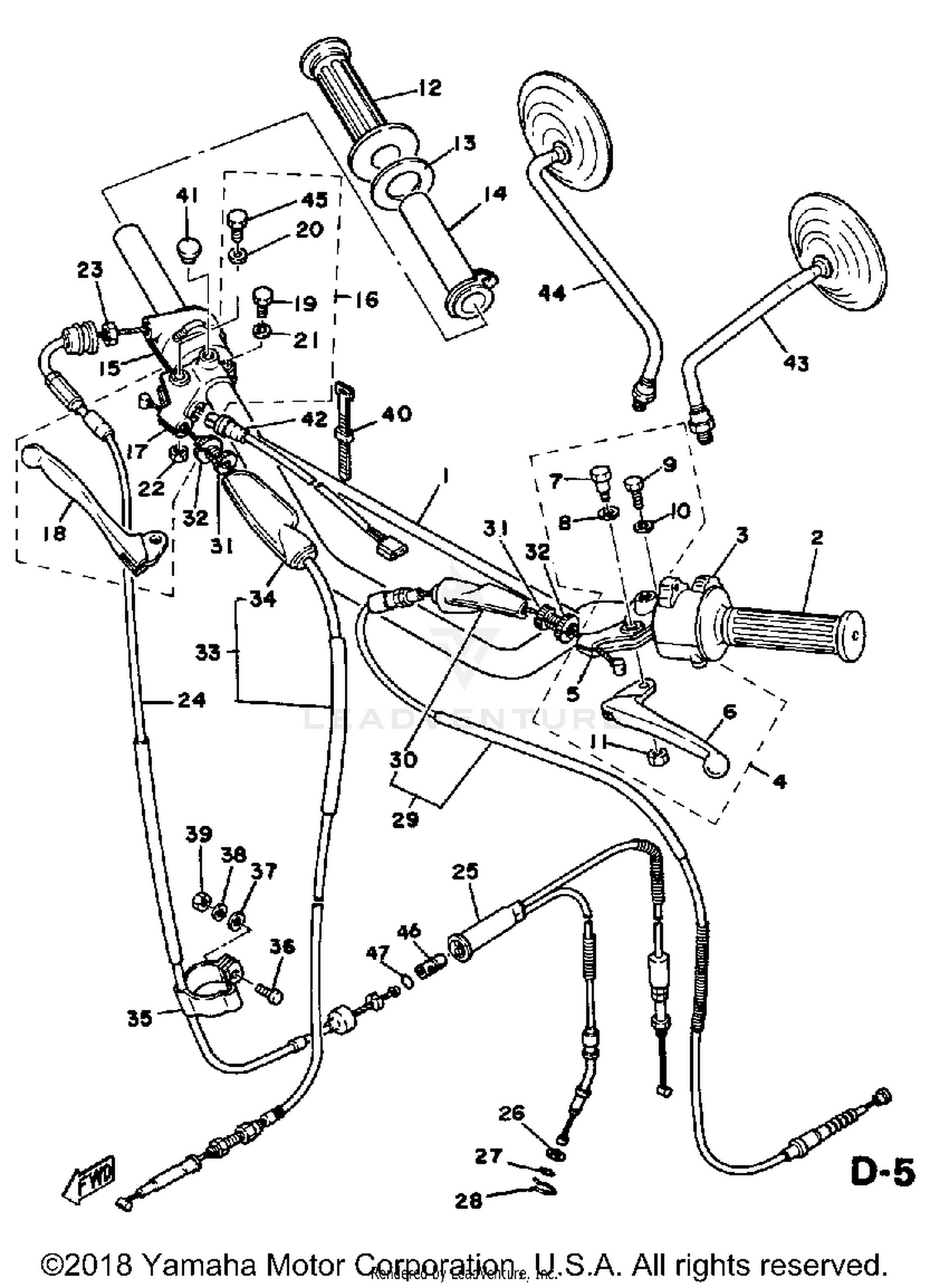

Handle-wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
2A8-26111-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP LH (L.H.)
1E6-26241-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH,HANDLE 4
1R6-83972-00-00
Superseded by 3G7-83972-01-00
|
$208.99 | ||
|
Unavailable |
|||
|
#3
SWITCH, HANDLE 3
1M1-83973-50-00
|
$120.99 | ||
|
Unavailable |
|||
|
#4
LEVER HOLDER ASSEMBLY 1
498-82910-20-00
|
$70.99 | ||
|
Unavailable |
|||
|
#5
HOLDER, LEVER 1
3Y6-82911-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER L
1J3-83912-20-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GRIP RH (R.H.)
1A0-26242-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, LEAF
1M1-26249-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, THROTTLE GUIDE
434-26243-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH, HANDLE 1
1R6-83976-01-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER HOLDER ASSEMBLY R (2A6-82
2A6-W8292-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#17
HOLDER, LEVER 2 (36182-92131-00
361-82920-93-00
|
$119.99 | ||
|
Unavailable |
|||
|
#18
LEVER R
2A6-83922-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (661)
97003-06022-00
Superseded by 97013-06022-00
|
$0.88 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#22
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
NUT, HEXAGON
90170-10038-00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE, THROTTLE 1
2A6-26311-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE, THROTTLE 2
2A6-26312-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-07100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90468-08086-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CABLE, CLUTCH
2A6-26335-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#33
CABLE, BRAKE
2A6-26341-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#34
COVER, HANDLE LEVER 1
498-26372-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#35
CLAMP
2A6-26397-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAND, SWITCH CORD
437-83936-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLUG
90338-09012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
FRONT STOP SWITCH AS
1M1-83980-30-00
Superseded by 1M1-83980-31-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
MIRROR ASSEMBLY LH
1Y1-26290-10-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
MIRROR ASSEMBLY RH
1Y1-26290-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.99 | ||
|
Unavailable |
|||
|
#46
PIECE, CONNECTING
1M1-26263-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#47
O-RING
93210-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
