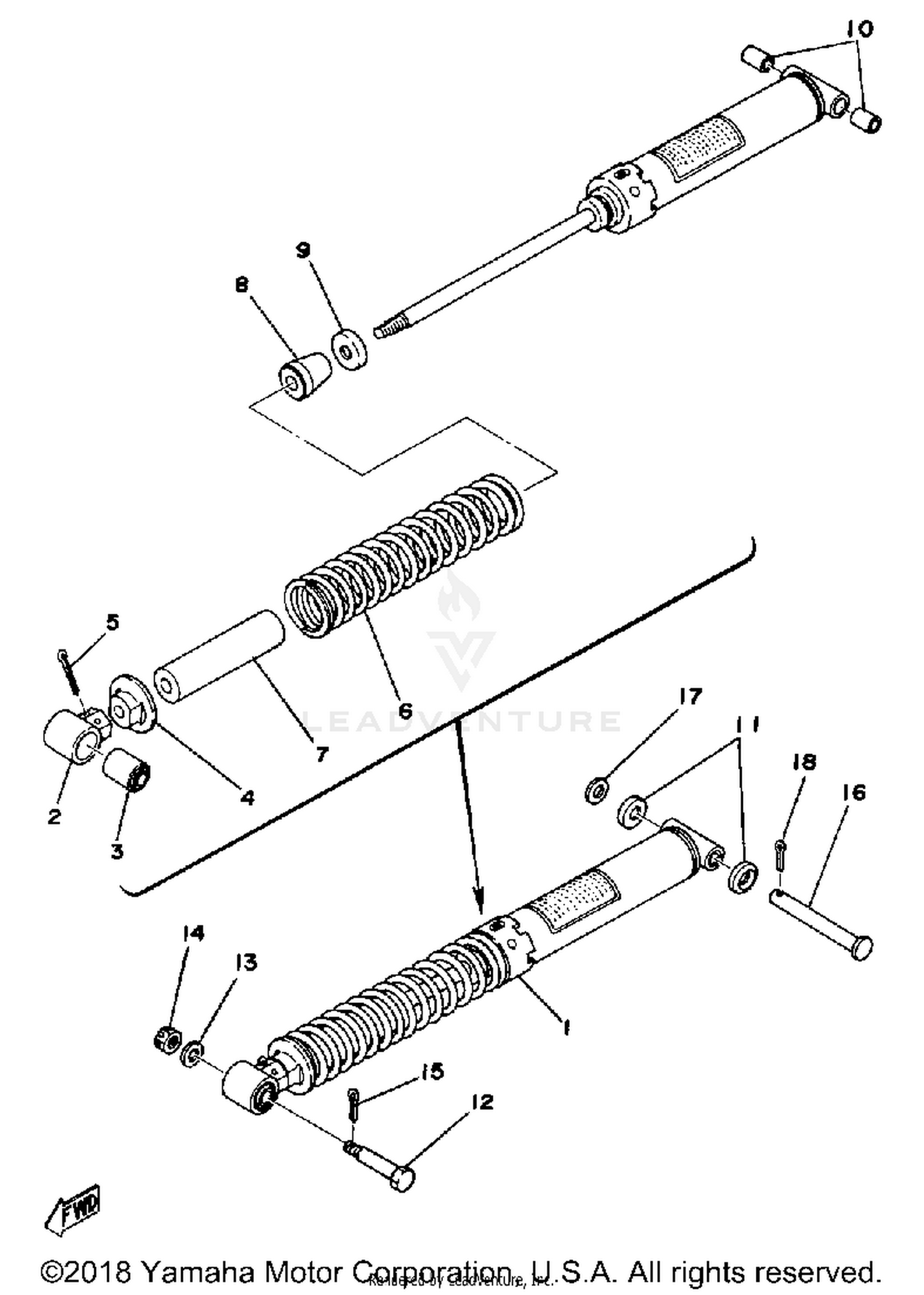

Rear Cushion Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
2N4-22210-01-00
|
$365.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, UPPER
1M1-22219-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#3
BUSH, REAR SHOCK ABSORBER
1M1-22216-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING UPPER
1M1-22213-01-00
|
$6.86 | ||
|
Unavailable |
|||
|
#5
PIN, COTTER
91401-30040-00
Superseded by 91490-30045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-90484-00
|
$25.73 | ||
|
Unavailable |
|||
|
#7
SLEEVE, ROD
1M1-22496-02-00
|
$4.11 | ||
|
Unavailable |
|||
|
#8
STOPPER, BUMP
2A6-22493-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#9
STOPPER
1M1-22482-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#10
BUSH, SOLID
90380-12051-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, THRUST 1
483-22128-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-10550-00
Superseded by 90109-10453-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-10200-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER (91490-20020-00)
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, CLEVIS
90240-12059-00
|
$9.99 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
92990-12600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
