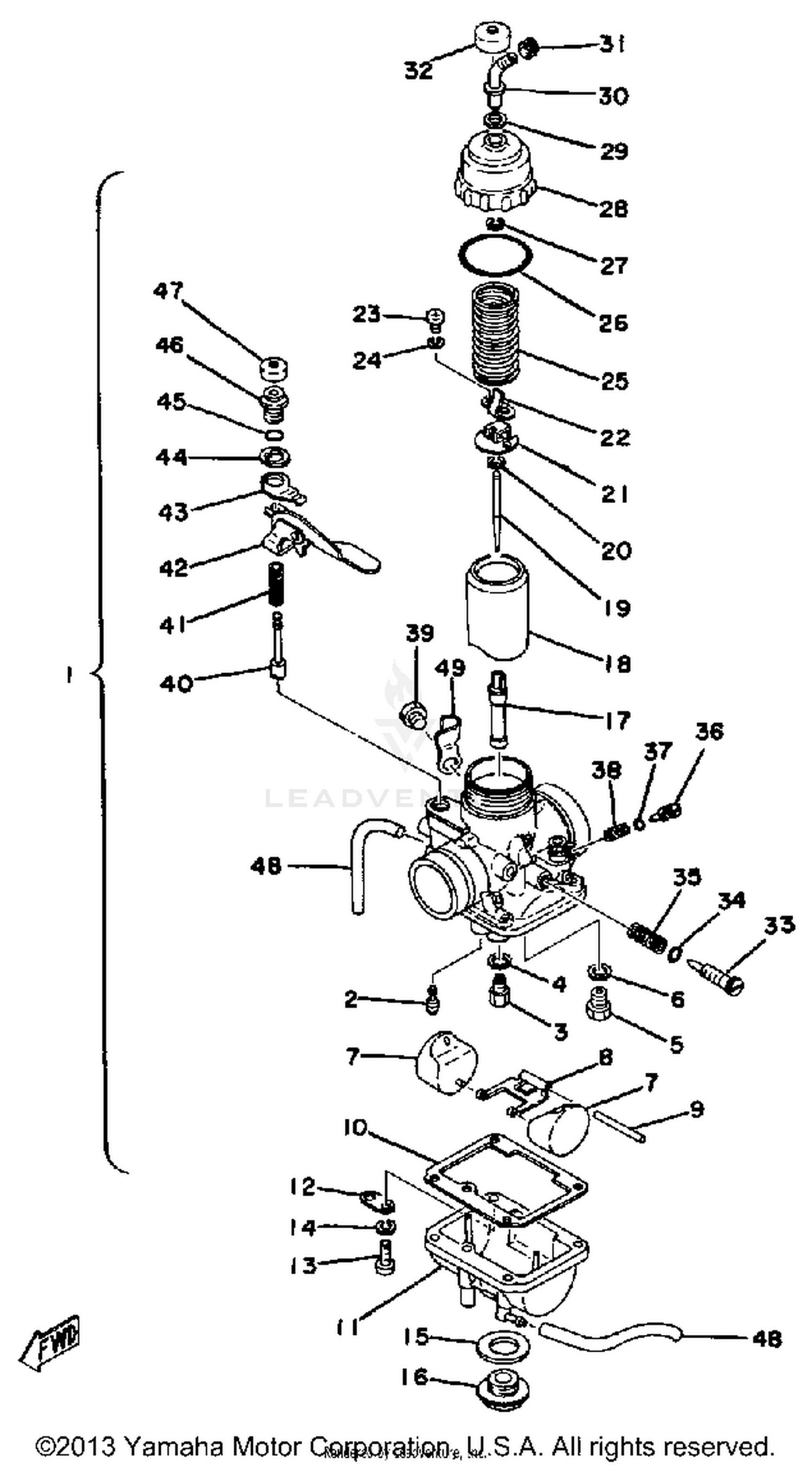

Carburetor Dt250e Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
1M1-14101-01-00
|
$134.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT #50
193-14142-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, MAIN (#140)
137-14143-28-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#135)
137-14143-27-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #150
137-14143-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE VALVE ASSEMBLY
168-14190-28-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, NEEDLE VALVE
214-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLOAT
280-14185-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#8
ARM, FLOAT
280-14187-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#9
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, FLOAT CHAMBER
360-14184-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, FLOAT CHAMBER 1
402-14181-12-00
|
$16.20 | ||
|
Unavailable |
|||
|
#12
PLATE
132-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SCREW PLUG
278-14117-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, SCREW
278-14115-00-00
|
$2.55 | ||
|
Unavailable |
|||
|
#17
NOZZLE, MAIN
278-14141-28-00
|
$10.80 | ||
|
Unavailable |
|||
|
#18
VALVE, THROTTLE 1
1M1-14112-15-00
|
$44.99 | ||
|
Unavailable |
|||
|
#19
NEEDLE
168-14116-33-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
1A0-14243-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#22
SPRING
1A0-14253-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-03010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, THROTTLE VALVE
248-14131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
361-14147-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
TOP, MIXING CHAMBER (498-1415
498-14158-00-33
|
$26.99 | ||
|
Unavailable |
|||
|
#29
GASKET
509-14198-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CABLE ADJUST SCREW SET
23X-14106-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#34
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
AIR SCREW SET
10W-14104-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
354-14147-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
1A0-14991-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#40
PLUNGER, STARTER
1A0-14171-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#41
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#42
LEVER, STARTER 1
1A0-14175-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#43
PLATE, STARTER LEVER
170-14178-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#44
WASHER, STARTER LEVER
1A0-14179-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#45
O-RING
93220-09001-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#46
CAP, PLUNGER
500-14174-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#47
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#48
PIPE, AIRVENT
439-14197-00-00
Superseded by 23F-14197-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90465-10108-00
|
$6.49 | ||
|
Unavailable |
|||
