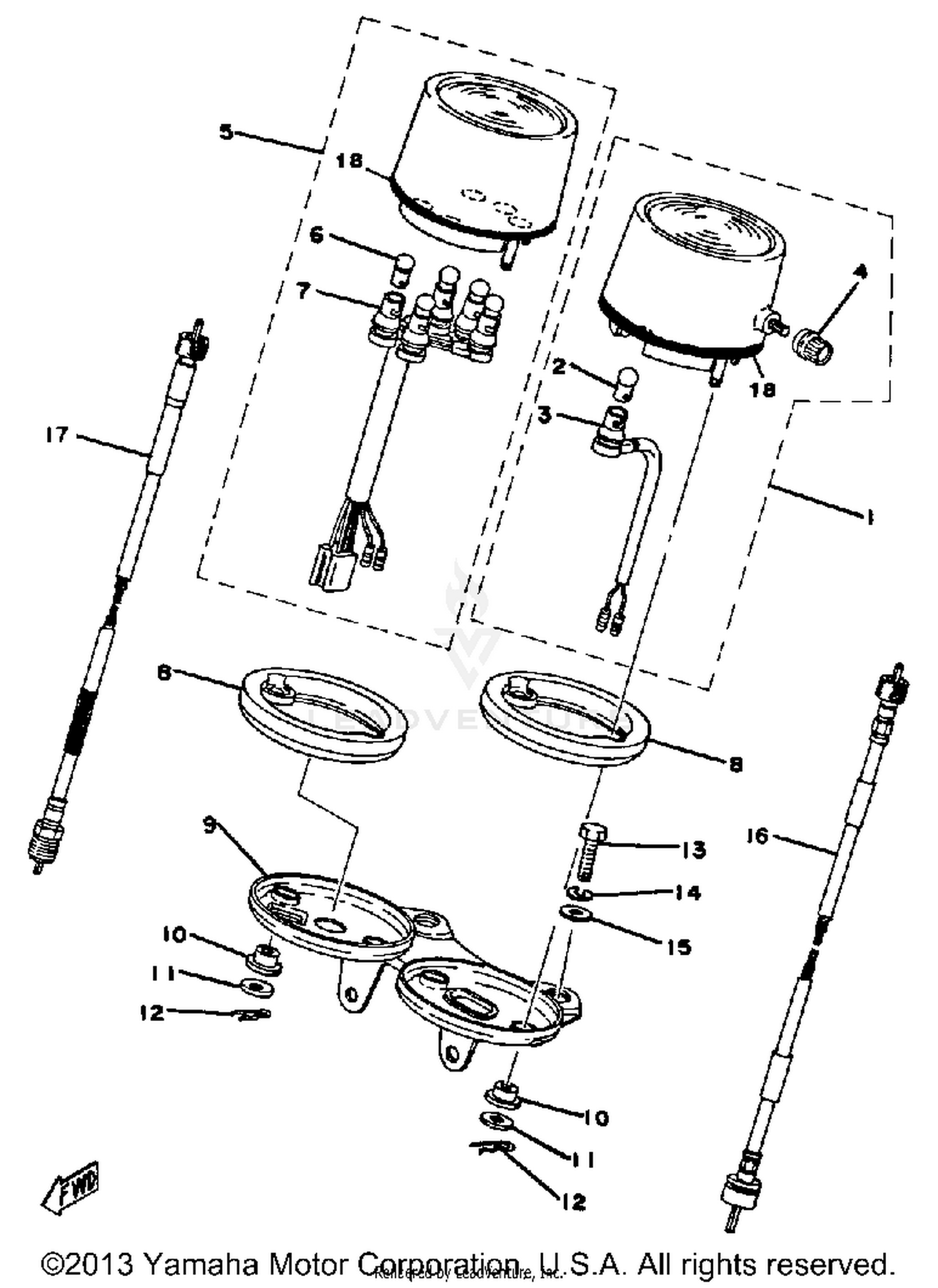

Speedometer Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
3Y3-83570-G0-00
|
$146.99 | ||
|
Unavailable |
|||
|
#2
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET, METER
1M1-83536-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#4
KNOB, TRIP METER
1E6-83578-10-00
|
$4.45 | ||
|
Unavailable |
|||
|
#5
TACHOMETER ASSEMBLY
3A6-83540-F0-00
|
$77.99 | ||
|
Unavailable |
|||
|
#6
BULB
122-83516-10-00
Superseded by 122-83516-10-XX
|
$2.40 | ||
|
Unavailable |
|||
|
#7
SOCKET CORD ASSEMBLY
1M1-83520-00-00
|
$23.94 | ||
|
Unavailable |
|||
|
#8
DAMPER
1M1-83513-00-00
|
$12.16 | ||
|
Unavailable |
|||
|
#9
BRACKET, METER
2A6-83519-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#10
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-052E2-00
Superseded by 90201-05032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
437-83525-00-00
Superseded by 90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
UNAVAILABLE IN PRICE BOOK (9290
92901-061A5-00
|
|||
|
Unavailable |
|||
|
#16
SPEEDOMETER CABLE (3H6-83550-00
1M1-83550-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TACHOMETER CABLE ASSEMBLY
1M1-83560-01-00
|
$45.99 | ||
|
Unavailable |
|||
