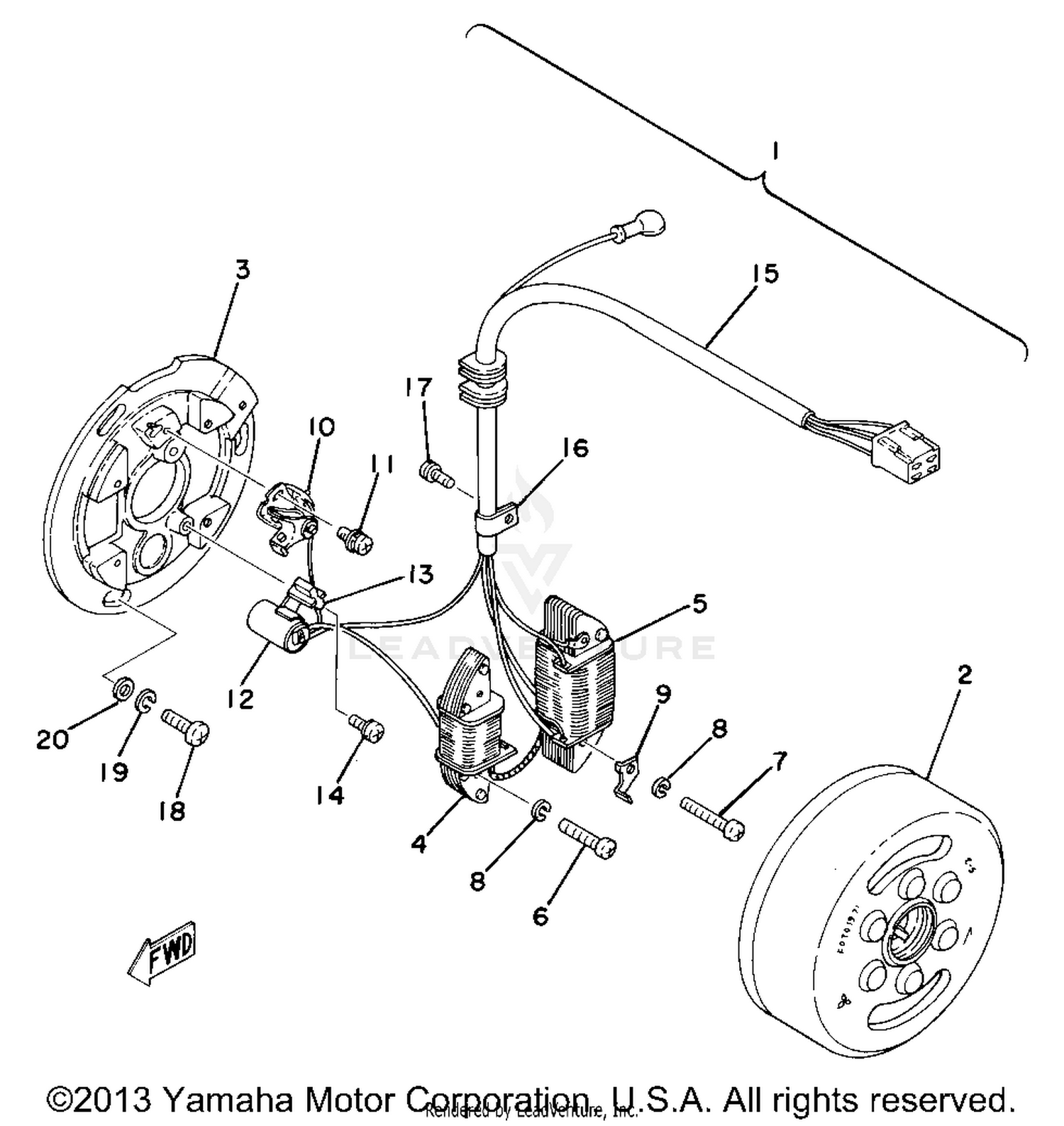

Flywheel Magneto (dt250d) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHEEL MAGNETO ASSEMBLY
1M1-81300-22-00
|
$292.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
1M1-81350-20-00
|
$472.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
438-81309-20-00
|
$34.99 | ||
|
Unavailable |
|||
|
#4
COIL, SOURCE
498-81312-22-00
|
$194.99 | ||
|
Unavailable |
|||
|
#5
COIL, LIGHTING 1
1M1-81313-21-00
|
$112.99 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98501-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, TIMING
438-81332-20-00
|
$3.50 | ||
|
Unavailable |
|||
|
#10
CONTACT BREAKER ASSEMBLY (R.H
1M1-81321-20-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CONDENSER 1
654-81325-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LUBRICATOR
116-81331-20-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
LEAD WIRE ASSEMBLY
1M1-81315-21-00
|
$22.32 | ||
|
Unavailable |
|||
|
#16
CLAMP
104-81328-20-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
