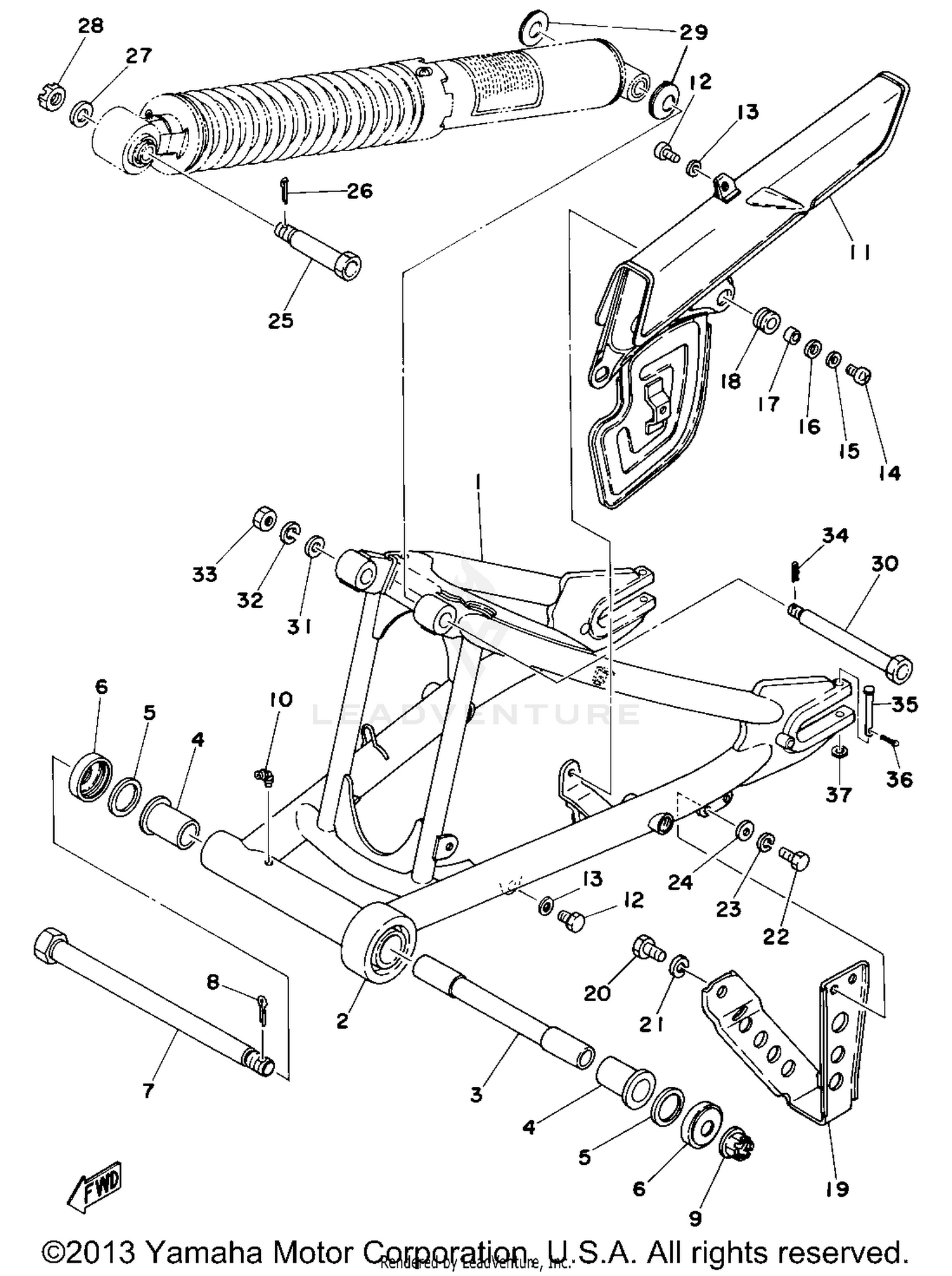

Rear Arm - Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
2N6-22110-00-33
|
$169.99 | ||
|
Unavailable |
|||
|
#2
SEAL, GUARD
1M1-22151-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#3
COLLAR (322-22124-00)
90387-16398-00
|
$55.99 | ||
|
Unavailable |
|||
|
#4
BUSH
3Y1-22184-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
1M1-22141-00-00
|
$32.14 | ||
|
Unavailable |
|||
|
#8
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CASTLE
90179-14217-00
Superseded by 90171-14031-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, CHAIN
1M1-22311-01-33
|
$14.62 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON
97313-05010-00
Superseded by 97013-05010-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-06062-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
90560-05001-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET (141-82596-00)
90480-12096-00
|
$2.40 | ||
|
Unavailable |
|||
|
#19
GUARD, CHAIN
1M1-22318-00-00
|
$12.08 | ||
|
Unavailable |
|||
|
#20
BOLT
97011-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-10550-00
Superseded by 90109-10453-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, THRUST 1
483-22128-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#30
BOLT
90109-08452-00
|
$6.71 | ||
|
Unavailable |
|||
|
#31
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
