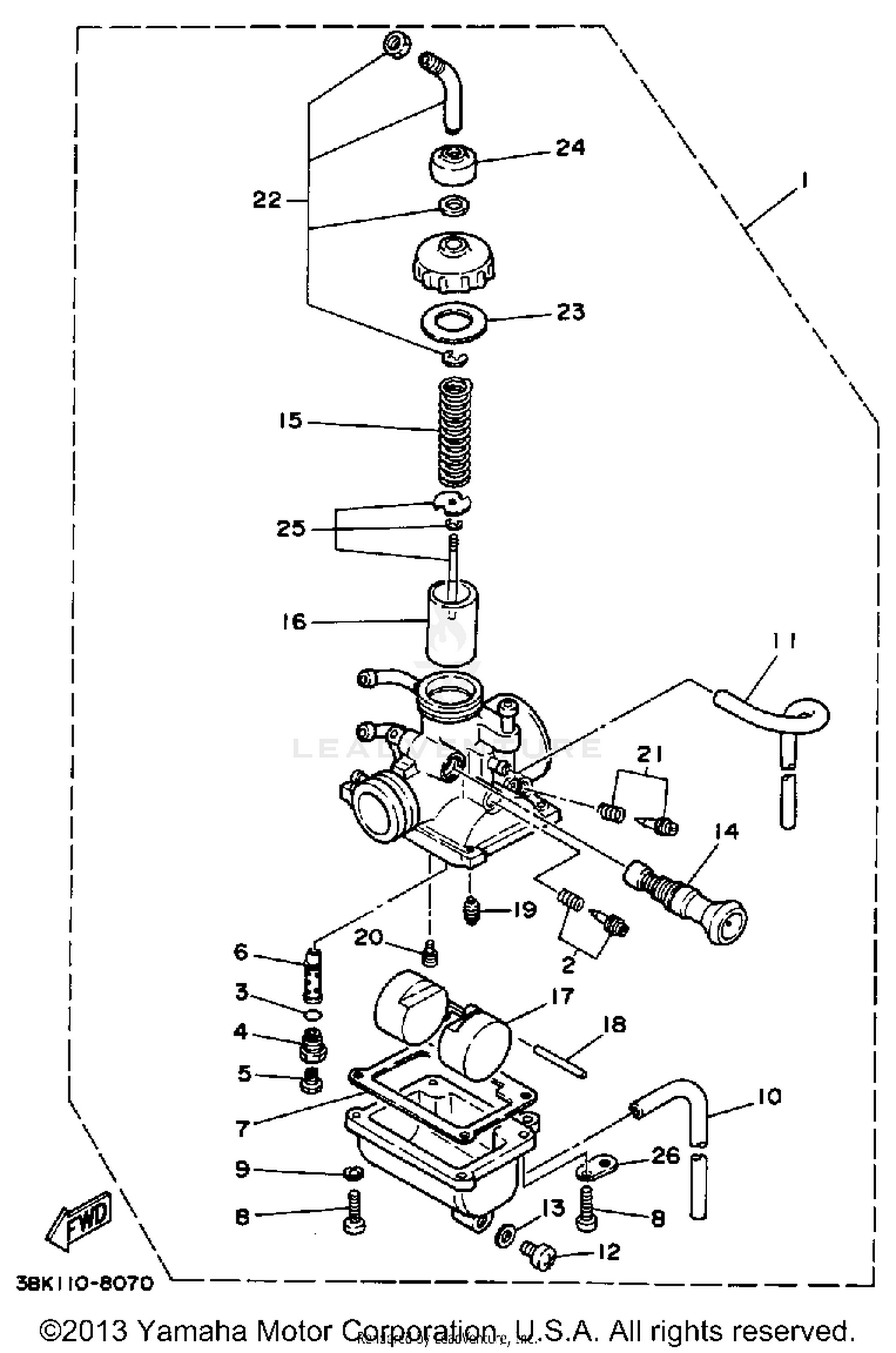

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
17W-14101-10-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THROTTLE SCREW SET
12G-14103-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SETTER, NEEDLE JET
4A5-14145-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#5
JET, MAIN #100
127-14143-20-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #95
127-14143-19-00
|
$4.10 | ||
|
Unavailable |
|||
|
#
JET, MAIN #105
127-14143-21-00
|
$4.10 | ||
|
Unavailable |
|||
|
#6
NOZZLE, MAIN
4U5-14141-78-00
|
$17.96 | ||
|
Unavailable |
|||
|
#7
GASKET, FLOAT CHMBR
353-14184-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, AIRVENT
23F-14197-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, AIRVENT
439-14197-00-00
Superseded by 23F-14197-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLUG SCREW
296-14117-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUNGER, STARTER
4U5-14171-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, THRTL VALVE
5L6-14131-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#16
VALVE,THROTTLE 1
17W-14112-20-00
Superseded by 4EU-14112-20-00
|
$62.99 | ||
|
Unavailable |
|||
|
#17
FLOAT
4U5-14185-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, FLOAT
353-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NEEDLE VALVE ASSY
3L5-14190-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, PILOT #22.5
260-14142-22-A0
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
AIR SCREW SET
12G-14104-00-00
Superseded by 36R-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE ADJUST SCREW SET
10X-14106-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
4U5-14126-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP
1M1-14169-00-00
Superseded by 3X3-14169-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NEEDLE SET
10X-1490J-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE
132-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
