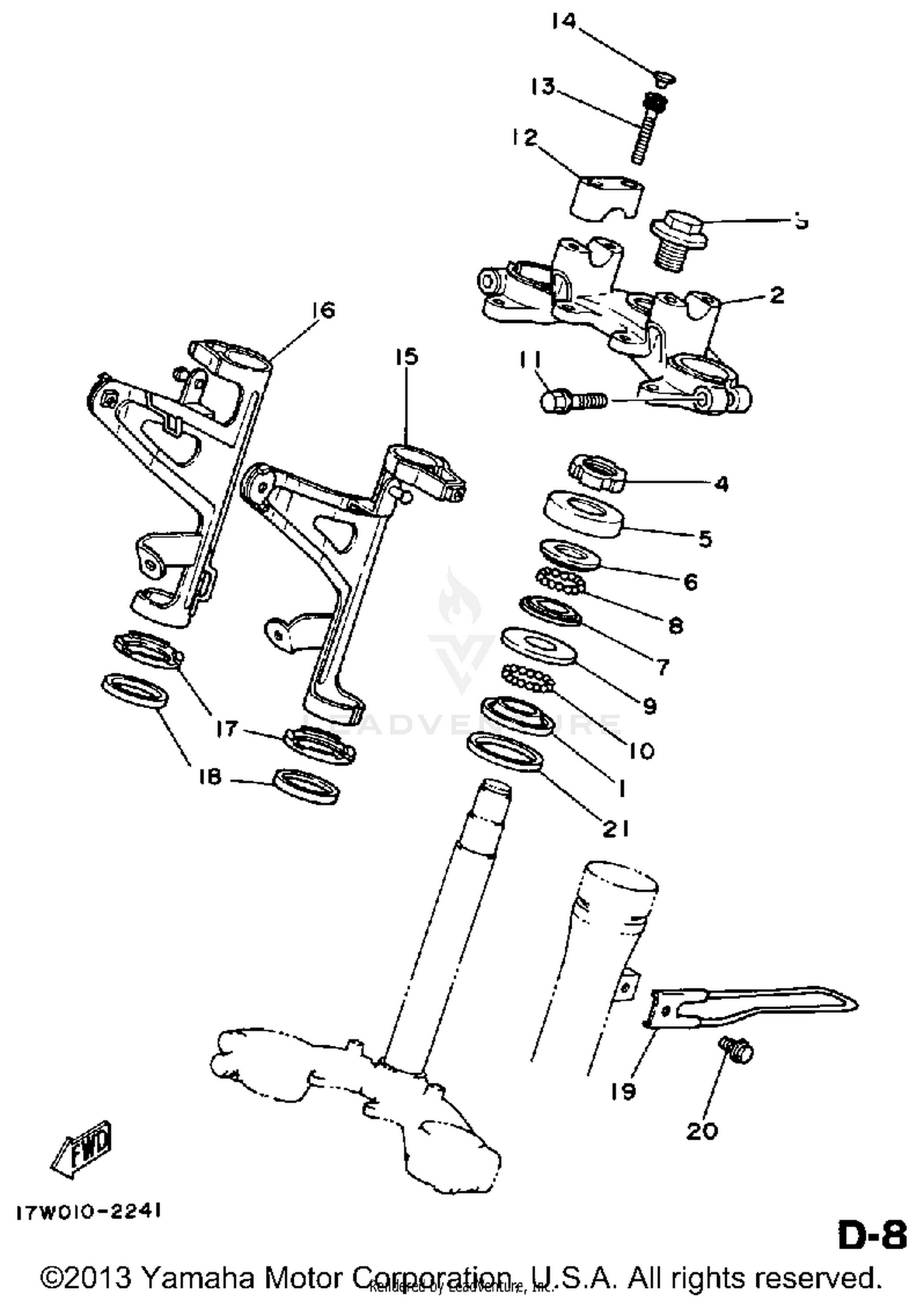

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
CROWN, HANDLE
17W-23435-00-98
|
$189.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
90105-14102-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, BALL RACE 2
122-23416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
RACE, BALL 2
156-23412-00-00
Superseded by B6E-23412-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08091-00
Superseded by 95814-08040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, HANDLE UPR
5R2-23441-00-98
|
$23.99 | ||
|
Unavailable |
|||
|
#13
BOLT
91316-06035-00
Superseded by 91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
2H9-23469-00-00
Superseded by 90338-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FLASHER
17W-23327-00-90
|
$68.99 | ||
|
Unavailable |
|||
|
#16
STAY, FLASHER
17W-23328-00-90
|
$67.99 | ||
|
Unavailable |
|||
|
#17
GASKET, UPPER CVR 1
5J0-23137-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
WASHER, SPECIAL 1
5J0-23385-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
HOLDER, CABLE 1
17W-23318-00-00
|
$8.94 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95811-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
