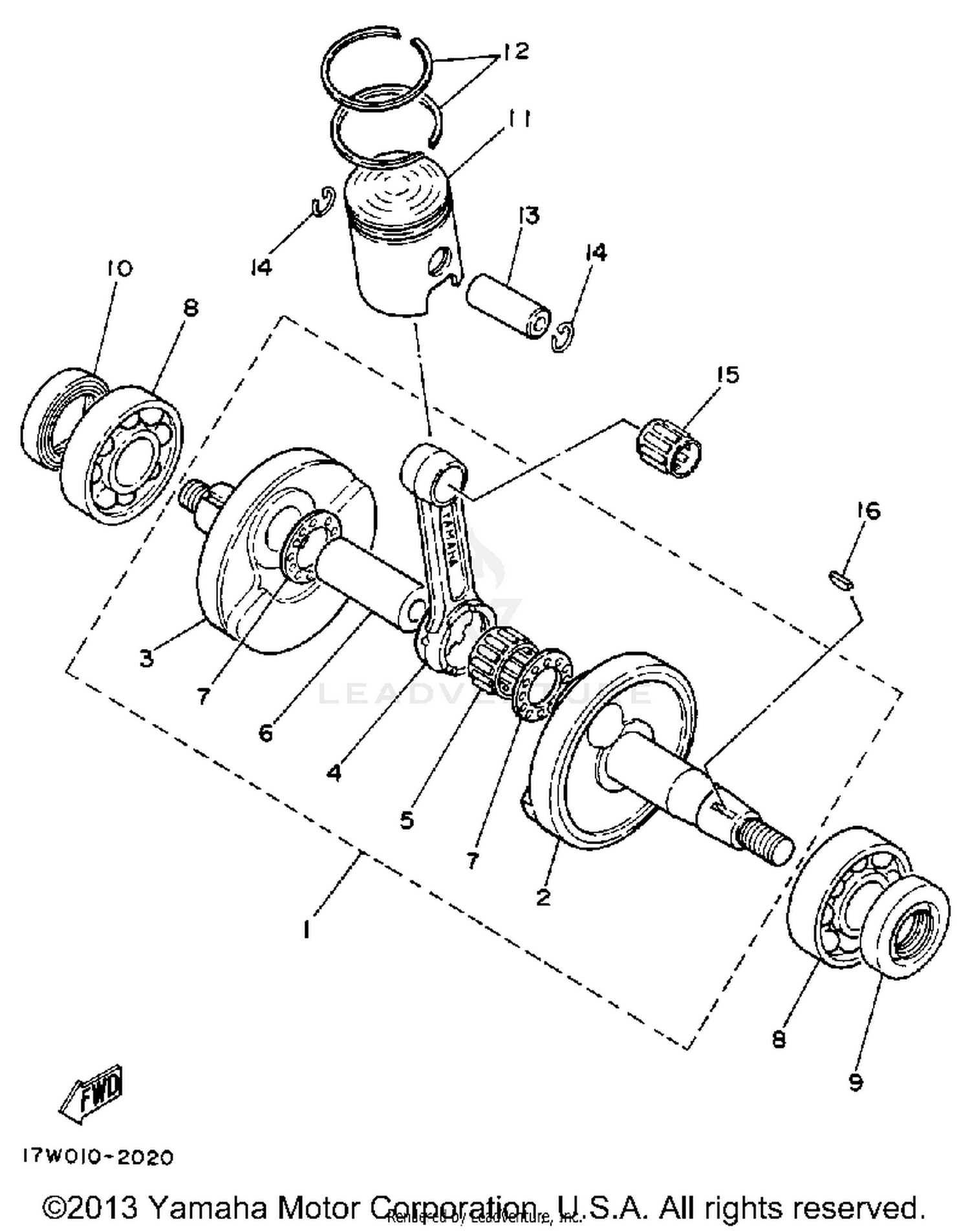

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
3BK-11400-00-00
|
$406.99 | ||
|
Unavailable |
|||
|
#2
CRANKSHAFT ASSEMBLY
3BK-11400-00-00
|
$406.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
3BK-11422-00-00
|
$61.69 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING (3R1-11651-00
3R1-11651-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING CYLINDER #10
93310-418C4-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
4V0-11681-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-18112-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20458-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-20447-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON STD
17W-11631-00-97
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON 1 O/S 0.25
17W-11635-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
17W-11636-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON RING SET
12Y-11610-50-00
Superseded by 4EU-11603-30-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET
12Y-11610-60-00
Superseded by 4EU-11604-30-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PSTN RNG SET
12Y-11610-70-00
Superseded by 4EU-11605-30-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PISTON
517-11633-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93450-13022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93310-11268-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
