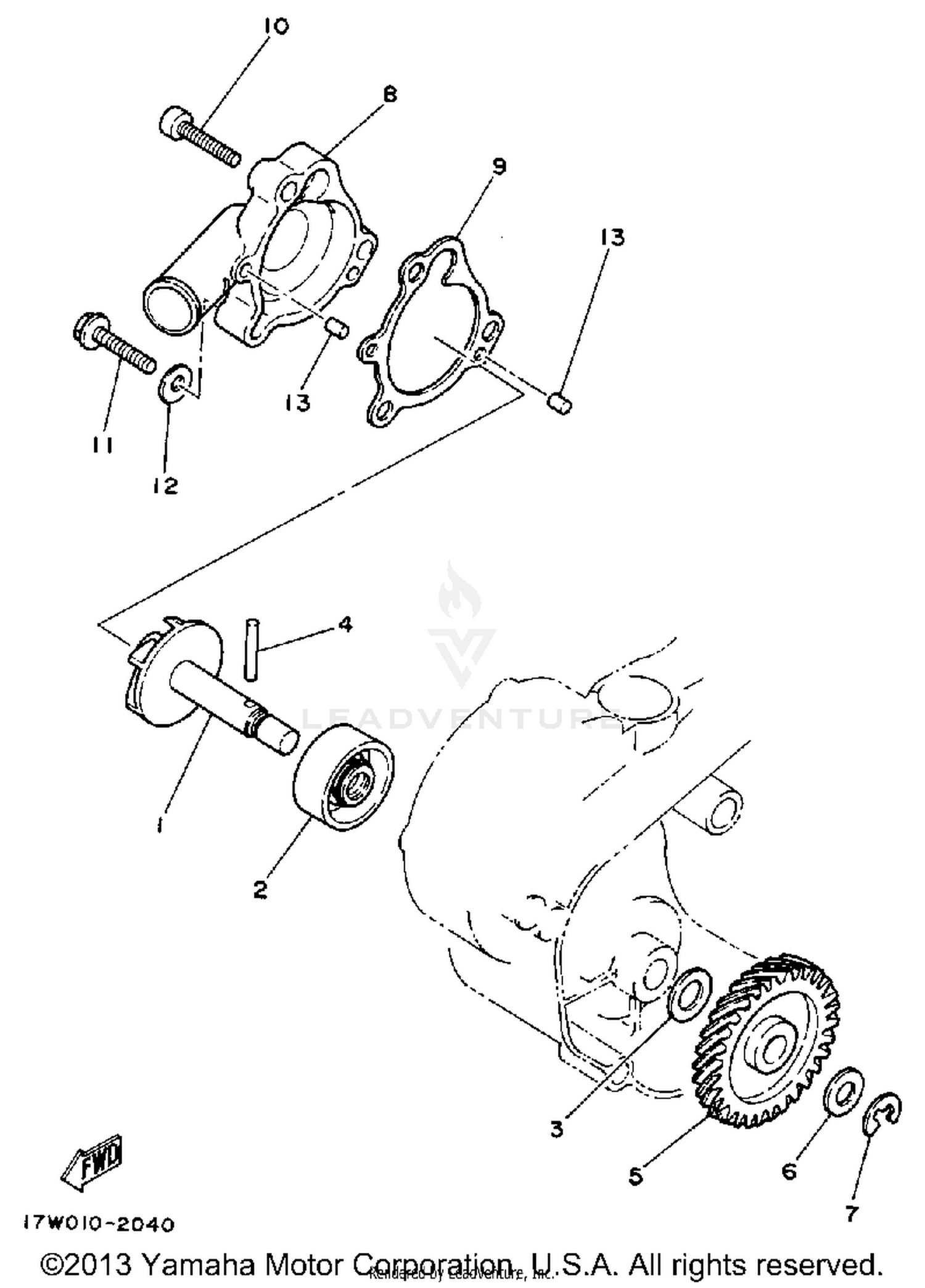

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER SHAFT ASSEMBLY
5R2-12450-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL
93103-10168-00
Superseded by 93103-10011-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-22028-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, IMPELLER SHAF
5R2-12459-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-08512-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HOUSING
5R2-12422-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#9
GASKET, HSNG CVR 2
5R2-12428-00-00
Superseded by 5R2-12428-02-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06166-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
