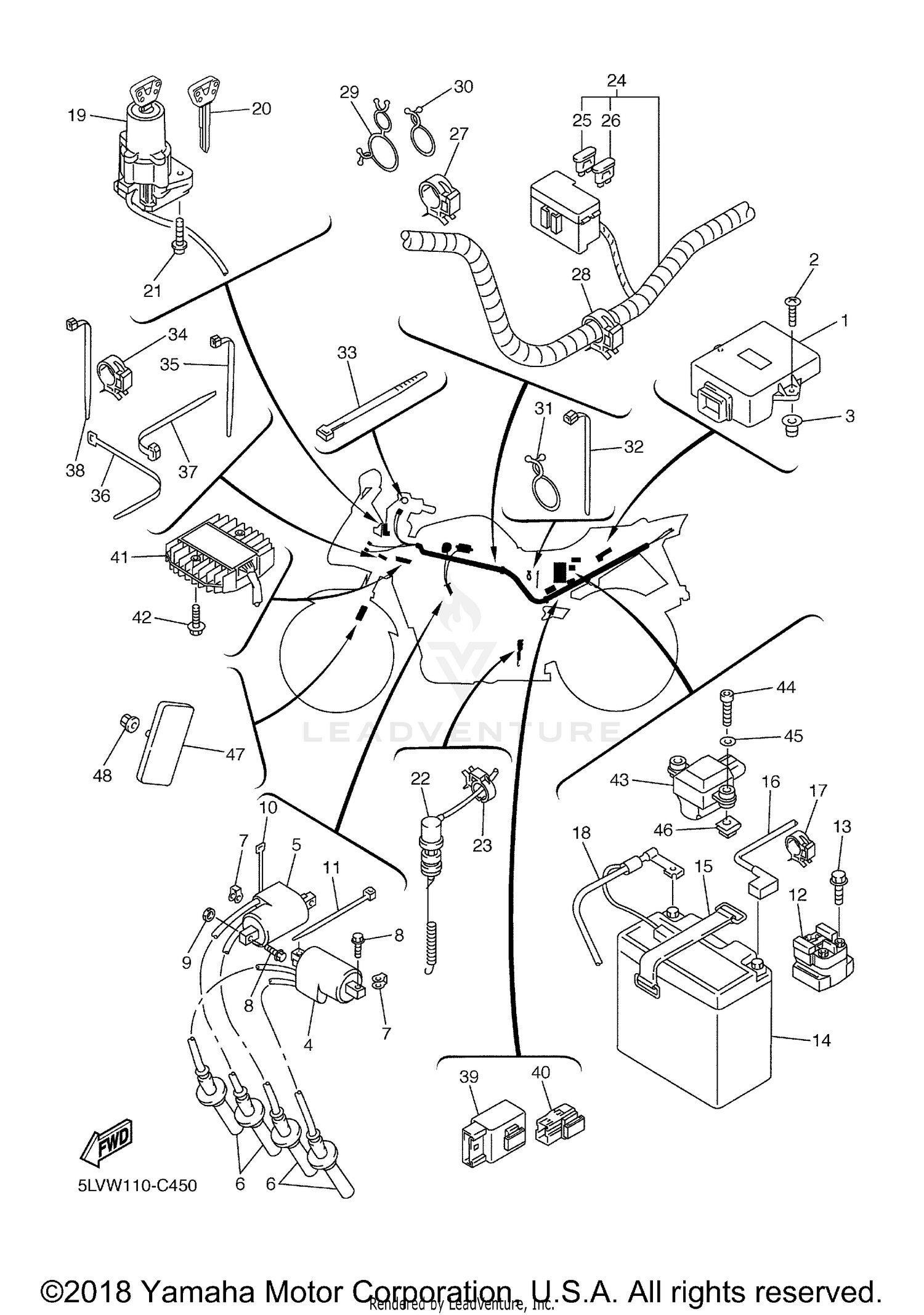

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITOR UNIT ASSY
5LV-82305-30-00
|
$912.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TAPPING
97707-50020-00
Superseded by 90167-05078-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIVET
90269-08058-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
IGNITION COIL ASSY
5LV-82310-00-00
Superseded by 5DM-82310-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
5LV-82320-00-00
Superseded by 4BH-82320-01-00
|
$217.99 | ||
|
Unavailable |
|||
|
#6
PLUG CAP ASSY
4XV-82370-01-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, IGNITION COIL
5LV-82317-00-00
|
$4.05 | ||
|
Unavailable |
|||
|
#8
BOLT
97080-06020-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
STARTER RELAY ASSY
4YR-81940-00-00
Superseded by 4YR-81940-02-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GT14B4 GS BATTERY -
5EA-82100-11-00
Superseded by GT1-4B400-00-00
|
$154.99 | ||
|
Unavailable |
|||
|
#15
BAND, BATTERY
26L-82131-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, PLUS LEAD
5LV-82115-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-10190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, MINUS LEAD
5LV-82116-10-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
MAIN SWITCH STEERING LOCK
5LV-82501-10-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BLANK KEY
4BH-82511-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOP SWITCH ASSY
5LV-82530-00-00
Superseded by 3DM-82530-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-08189-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE HARNESS ASSY
5LV-82590-10-00
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE (20A-BL)
5JJ-82151-20-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-25217-00
|
$3.90 | ||
|
Unavailable |
|||
|
#29
CLAMP
90464-25098-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-13077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#37
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-13077-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
RELAY ASSY
5EB-81950-20-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
RELAY ASSY
5JJ-81950-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
RECTIFIER & REGULATOR ASSY
5FL-81960-00-00
Superseded by 5KP-81960-00-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
EMERGENCY STOP SWITCH ASSY
5LV-82576-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
91317-04025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
90201-042E0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT, SPRING
90183-04039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
