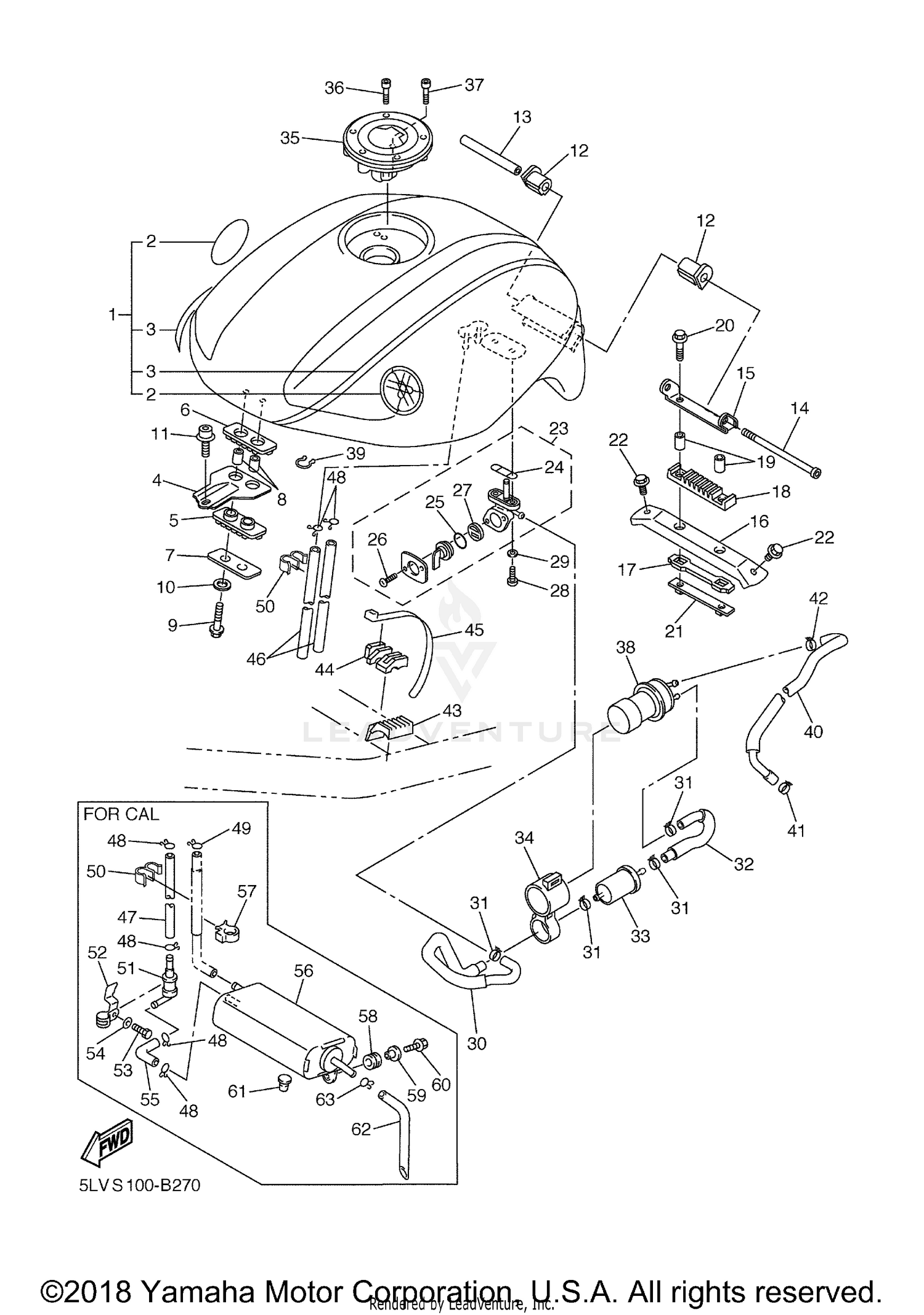

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5LV-Y2410-10-X5
|
$1,194.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
5LV-Y2410-10-X7
|
$1,168.99 | ||
|
Unavailable |
|||
|
#2
TUNING FORK MARK
5VX-2411B-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC SET
5LV-24240-20-00
|
$77.71 | ||
|
Unavailable |
|||
|
#4
BRACKET, FUEL TANK 1
5LV-24191-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 1
5LV-24181-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
5LV-24183-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
2GH-24186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-06299-00
Superseded by 90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,HEXAGON
97027-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-081G0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 1
4YR-24181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-061W9-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91317-06110-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, TANK FITTING
5DM-21346-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#16
BRACKET, TANK FITTING
5LV-21346-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
5LV-24181-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
DAMPER, LOCATING 1
5DM-24181-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-06299-00
Superseded by 90387-07598-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
5DM-21296-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUEL COCK ASSY 1
2VN-24500-01-00
Superseded by 2VN-24500-02-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE, FUEL 1
5LV-24311-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-12124-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 2
5LV-24312-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
FILTER ASSY
1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BAND 1
5LV-24398-00-00
Superseded by 5LV-24398-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP ASSY
5JJ-24602-00-00
Superseded by 39P-24602-00-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#38
FUEL PUMP COMP.
4SV-13907-02-00
Superseded by 4SV-13907-03-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-44109-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE, FUEL 1
5LV-13971-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-13114-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-12124-00
|
$3.15 | ||
|
Unavailable |
|||
|
#43
DAMPER, LOCATING 2
5LV-24182-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
DAMPER, LOCATING 3
5LV-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE
90445-10021-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE
90445-11025-00
|
$62.99 | ||
|
Unavailable |
|||
|
#48
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#50
CLAMP
90464-09M31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
ROLL OVER VALVE ASSY
5LV-24180-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
PLATE, FITTING
5LV-2411F-00-00
|
$80.81 | ||
|
Unavailable |
|||
|
#53
BOLT, HEXAGON
97007-05010-00
Superseded by 97027-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#55
PIPE 4
5LV-24314-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#56
CANISTER ASSY
5LV-24170-00-00
|
$1,365.13 | ||
|
Unavailable |
|||
|
#57
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#61
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
HOSE
90445-12003-00
|
$8.49 | ||
|
Unavailable |
|||
|
#63
CLIP
90467-12052-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
