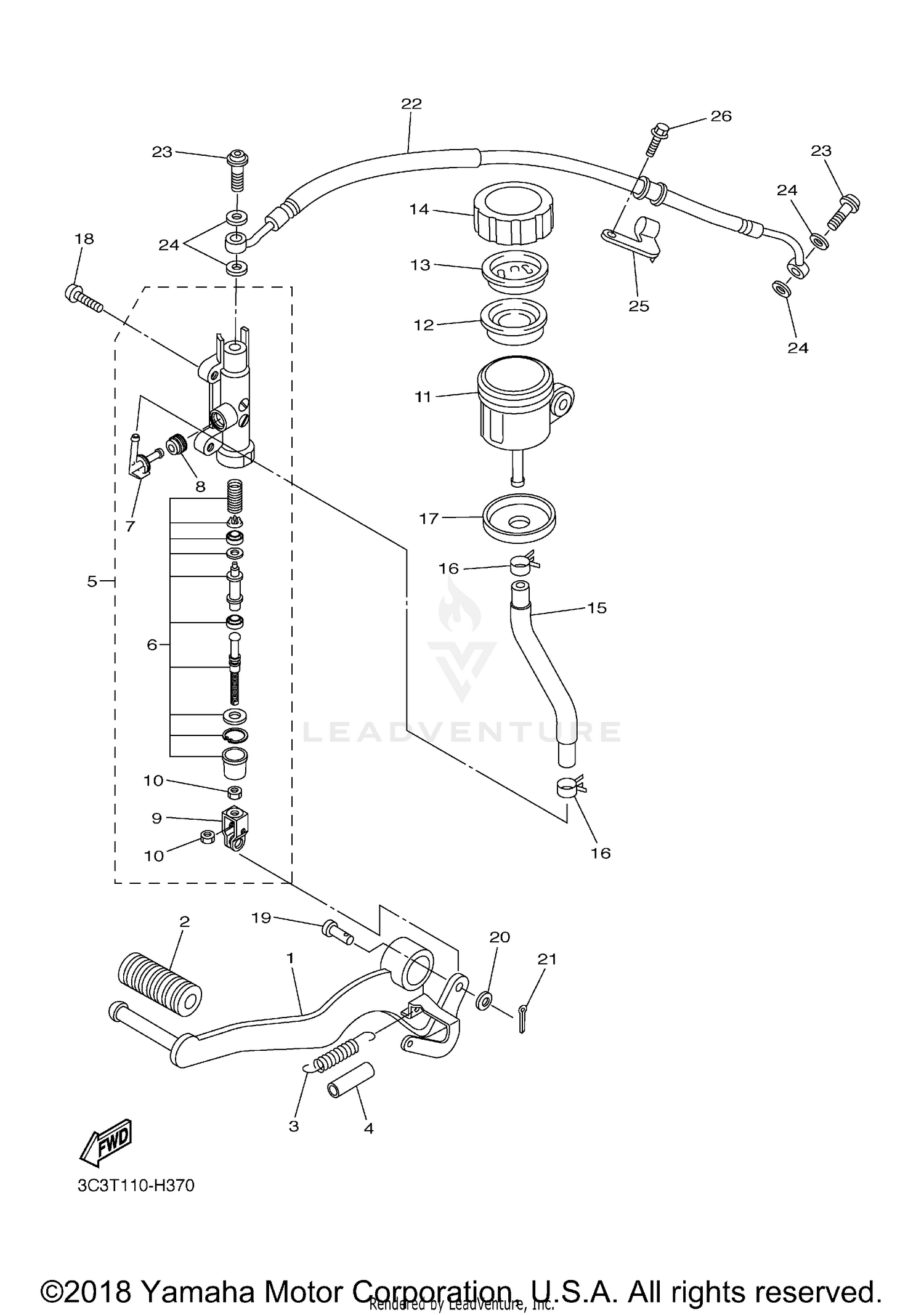

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
2D1-27211-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90506-20014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE
90446-15386-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR MASTER CYLINDER ASSY.
2D1-2583V-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CYLINDER KIT, MASTER
5VX-W0042-50-00
Superseded by 5VX-W0042-51-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
. .JOINT
2D1-2582A-00-00
Superseded by 2D1-2582A-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
O-RING
4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90170-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RESERVOIR
2D1-25894-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM, RESERVOIR
5SL-25854-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH, DIAPHRAGM
5SL-25855-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RESERVOIR
5SL-25852-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, RESERVOIR
2D1-25895-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-120A3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT
5D0-2583H-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, CLEVIS
90240-08005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-08066-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, BRAKE
2D1-25874-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, BRAKE HOSE
2D1-25886-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-05021-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
