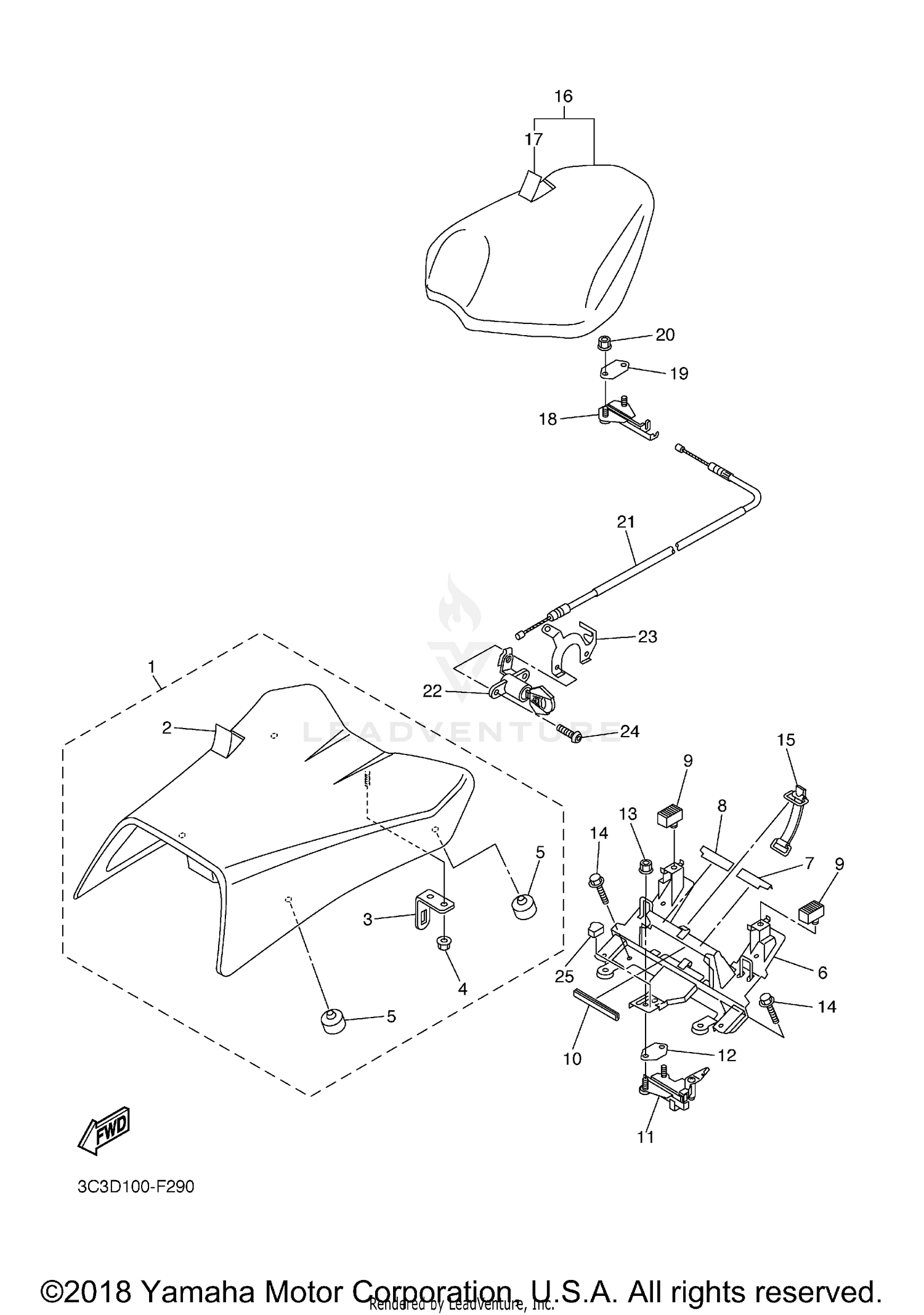

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
2D1-24710-00-00
Superseded by 2D1-24710-02-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SINGLE SEAT
2D1-24711-00-00
Superseded by 2D1-24711-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SEAT
4HM-24728-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, SEAT 1
3C3-21341-01-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR 1
2D1-2476U-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, 2
2D1-2476V-00-00
|
$1.80 | ||
|
Unavailable |
|||
|
#9
PAD, SEAT
3C3-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
MOLD, SEAT
2D1-24785-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT LOCK ASSY
2D1-24780-02-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95822-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, BATTERY
18G-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANDEM SEAT ASSY
3C3-24750-00-00
Superseded by 3C3-24750-03-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, TANDEM SEAT
3C3-24751-00-00
Superseded by 3C3-24751-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#18
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Unavailable |
|||
|
#21
CABLE, SEAT LOCK
2D1-2478E-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY, LOCK
4XV-2117K-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
90149-06134-00
Superseded by 90149-06135-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER
2D1-24665-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
