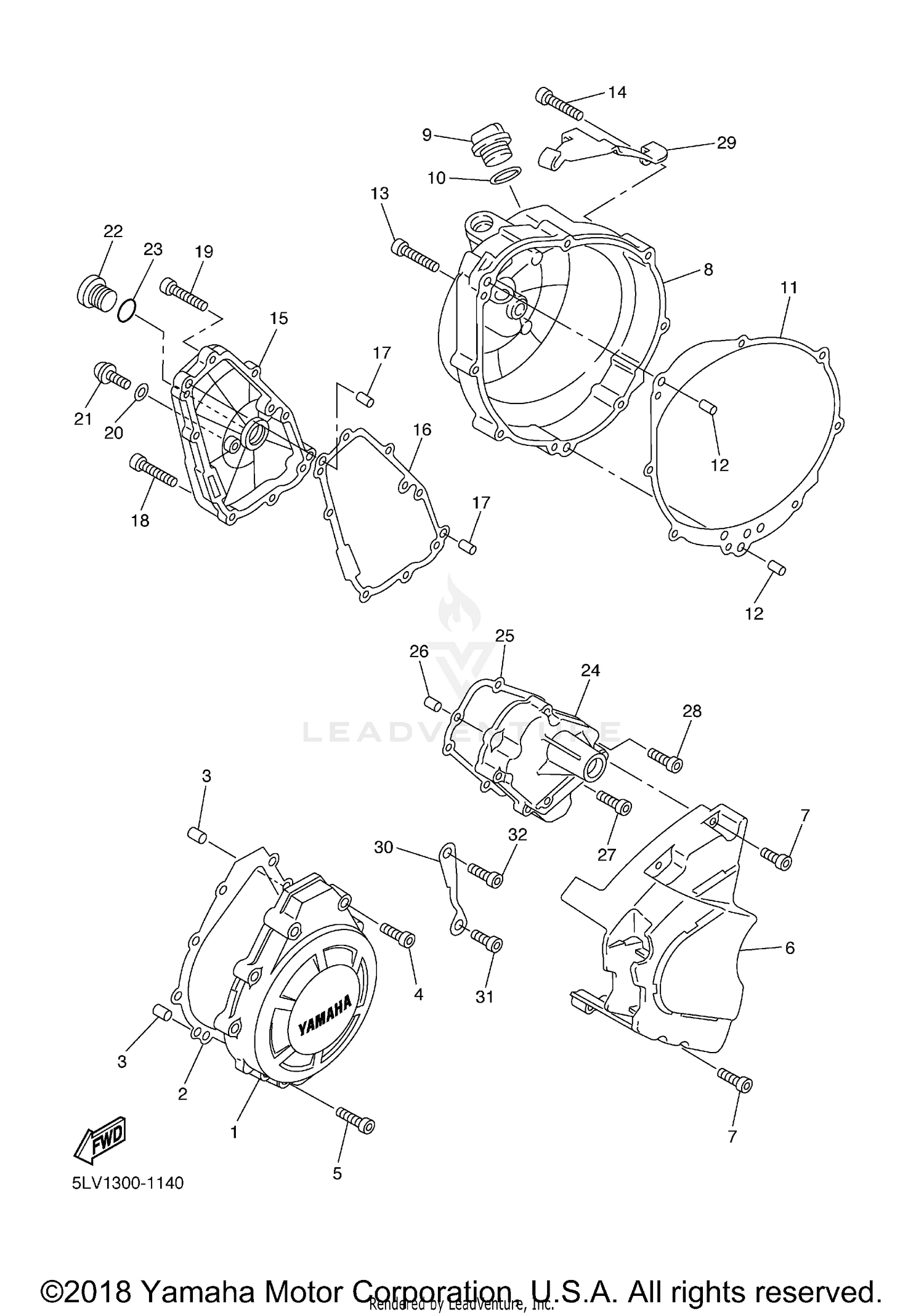

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
5LV-15411-10-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
4XV-15451-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CHAIN CASE
5LV-15418-10-00
|
$78.99 | ||
|
Unavailable |
|||
|
#7
BOLT
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE 2
5LV-15421-10-00
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, OIL LEVEL
3F9-15362-00-00
Superseded by BAT-15362-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#10
O-RING
93210-27194-00
Superseded by 93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, CRANKCASE COVER 2
4XV-15461-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93608-21002-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91314-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91314-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, OIL PUMP
5LV-15416-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, OIL PUMP COVER 1
5LV-15456-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Unavailable |
|||
|
#18
BOLT
91314-06020-00
|
$1.40 | ||
|
Unavailable |
|||
|
#19
BOLT
91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
GASKET
90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92014-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, STRAIGHT SCREW
90340-32002-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, GENERATOR 2
5LV-15425-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#25
GASKET, CARBURETOR
4XV-15463-00-00
Superseded by 5JJ-15463-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Unavailable |
|||
|
#27
BOLT
91314-06020-00
|
$1.40 | ||
|
Unavailable |
|||
|
#28
BOLT
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, CLUTCH CABLE
5LV-15441-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE
5LV-15113-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90110-06224-00
Superseded by 90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT (4MY)
90110-06124-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
