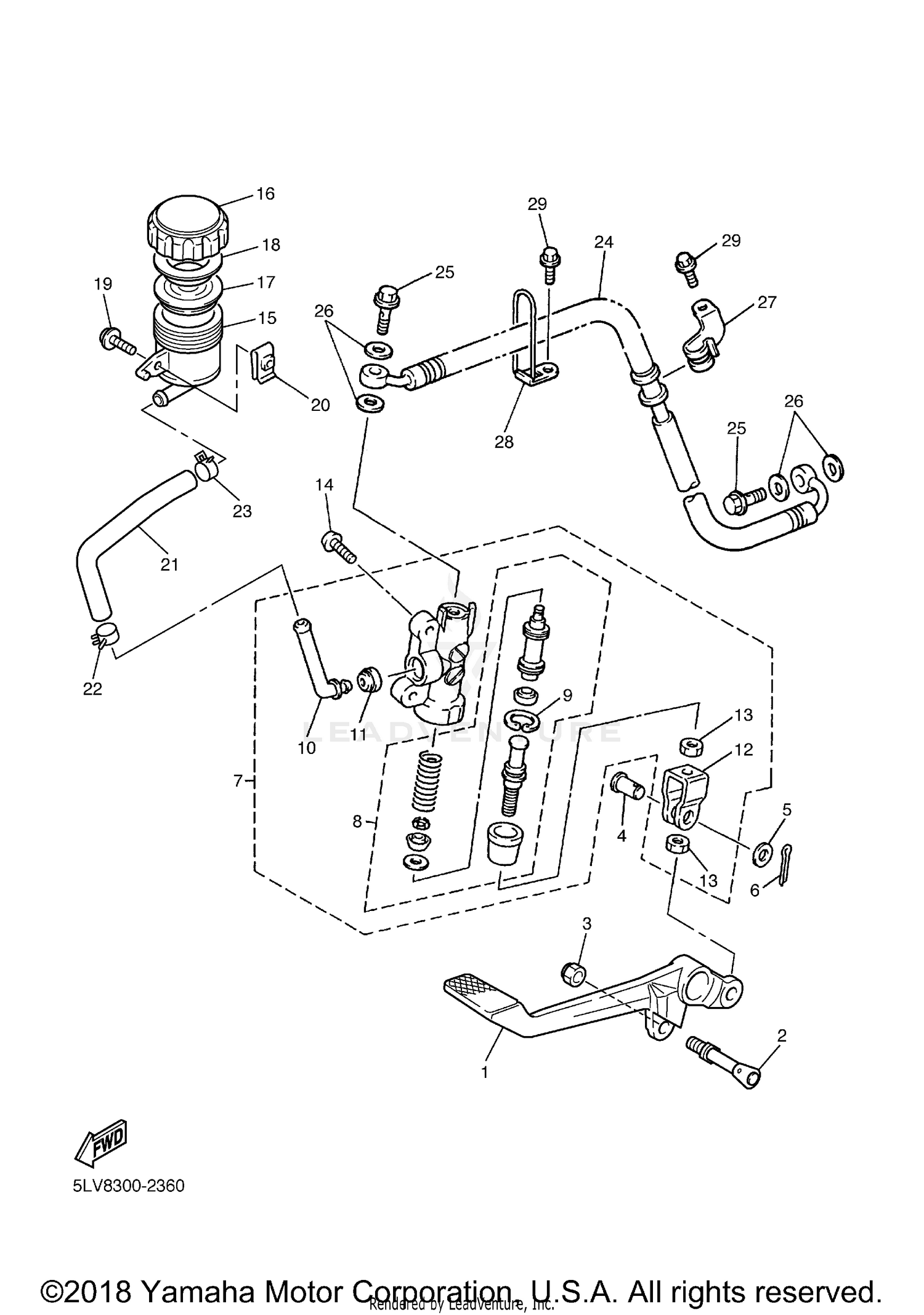

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5LV-27211-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, PEDAL CRANK
5LV-27813-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#3
NUT, U
95604-08100-00
Superseded by 95680-08100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
RR. MASTER CYLINDER ASSY.
4BP-2583V-01-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER KIT, MASTER
4BP-W0042-50-00
Superseded by 3TU-W0042-51-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
3LN-2585G-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
4BP-2582A-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
4BP-2585F-00-00
Superseded by 4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT
4BP-27222-01-00
Superseded by 4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK, RESERVOIR
47X-25894-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,WITH WASHER
90119-06M50-00
Superseded by 99999-04000-00
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, RESERVOIR
5LV-25895-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-130A3-00
|
$2.15 | ||
|
Unavailable |
|||
|
#24
HOSE, BRAKE 5
5LV-2581K-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, BRAKE HOSE 2
4FM-25876-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, BRAKE HOSE
4BH-25886-02-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
