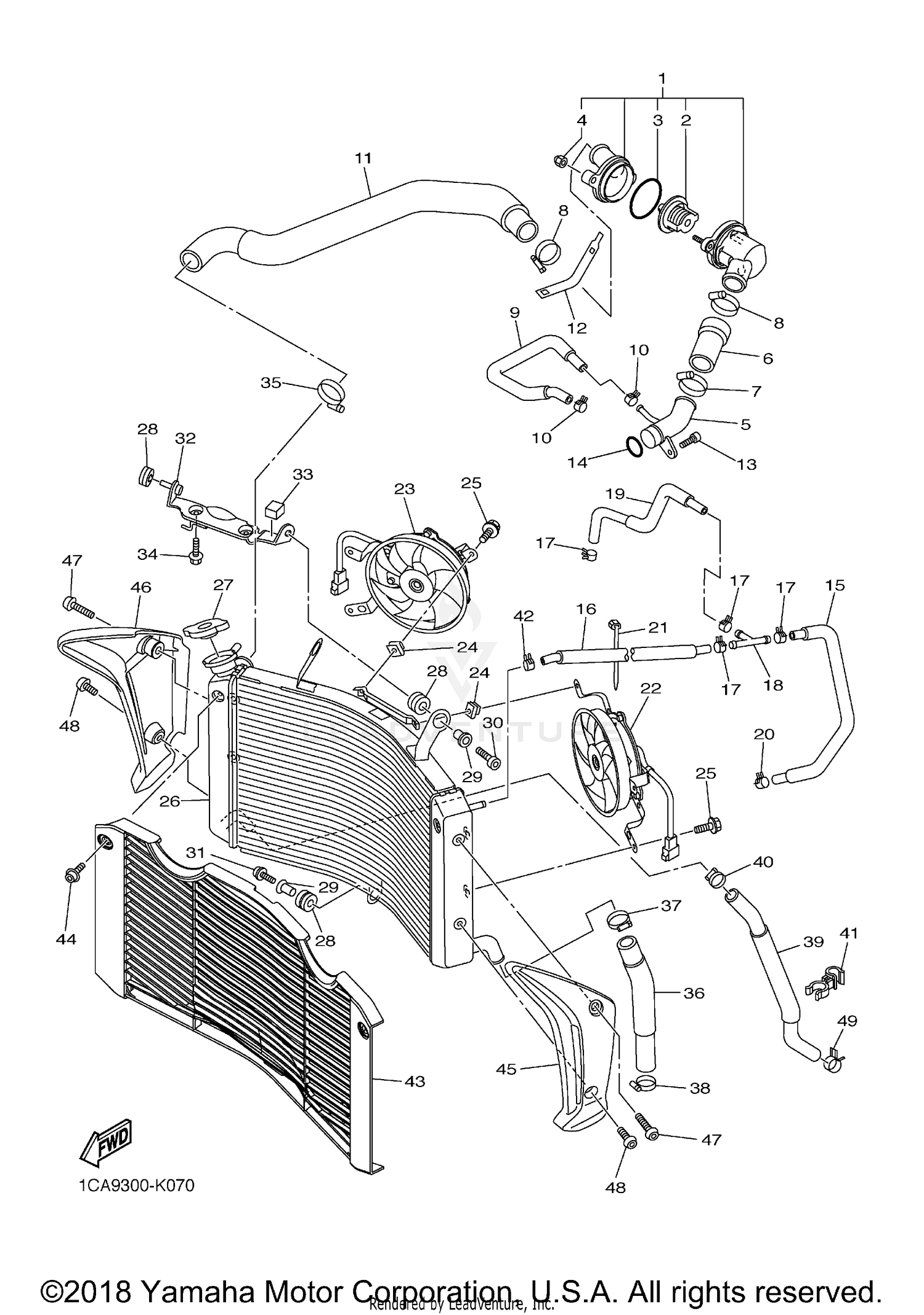

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
2D1-12410-00-00
Superseded by 2D1-12410-01-00
|
$91.99 | ||
|
Unavailable |
|||
|
#2
THERMOSTAT
5LP-12411-00-00
Superseded by 5LP-12411-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, CROWN
90176-06014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 5
5VY-12485-10-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE 4
5VY-12579-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, 3
5VY-1243F-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE 3
2D1-12578-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER 1
5GV-1246A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-235A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE 1
5VY-1243A-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, 4
2D1-1244G-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
WAY 3
90413-07023-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE 2
2D1-1243E-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BLOWER ASSY
2D1-12405-01-00
|
$343.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BLOWER ASSY
2D1-12405-11-00
|
$312.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE
1AA-12535-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BLOWER HOLDING
2D1-12675-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
RADIATOR COMP
2D1-12461-00-00
|
$575.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-15363-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90109-06015-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-06232-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAY, RADIATOR
2D1-12464-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER 2
2D1-2139U-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
HOSE 7
2D1-12551-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#38
HOSE CLAMP ASSY
90450-32001-00
Superseded by 90450-32003-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE 6
39P-12589-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-20011-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
COVER, RADIATOR
2D1-12467-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEX. SOCKET BUTTON
90111-06031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
RADIATOR COVER ASSY1
3C3-1240J-00-P0
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
RADIATOR COVER ASSY 2
3C3-1240K-00-P0
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT,HEX. SOCKET BUT
90111-06080-00
Superseded by 90111-06066-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, HEX. SOCKET BUTTON
90111-06079-00
Superseded by 90111-06031-00
|
$7.49 | ||
|
Unavailable |
|||
|
#49
CLIP
90467-200A0-00
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
