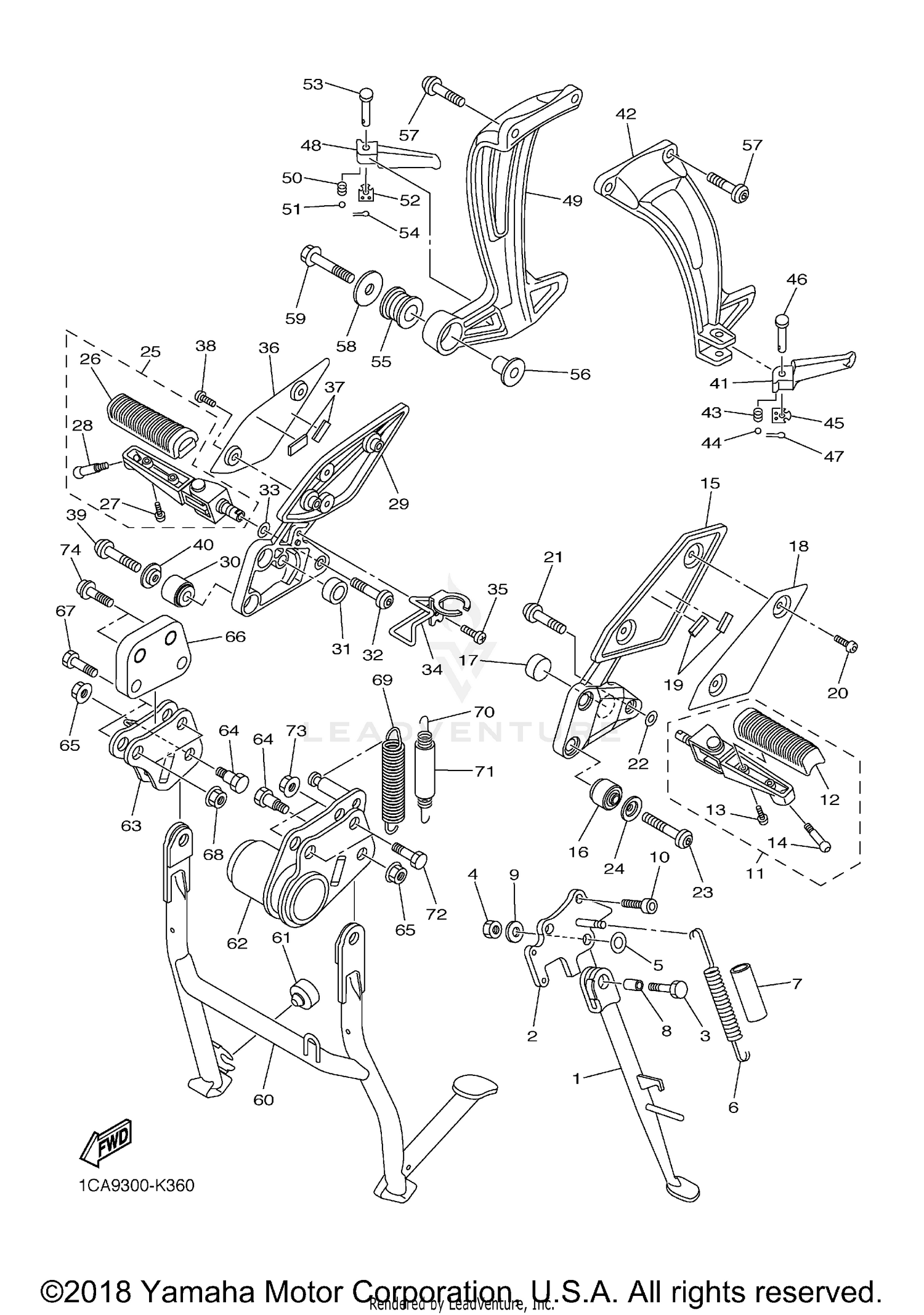

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
39P-27311-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
2D1-27321-00-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-16027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-18020-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE (L60)
90445-19002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-10050-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-10028-00
Superseded by 91312-10030-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRONT FOOTREST ASSY (LEFT)
2D1-27410-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-08174-00
Superseded by 90109-08177-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 2
2D1-27442-11-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, FOOTREST 2
1NL-27424-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, MAIN STAND
5VX-27114-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 1
2D1-27486-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
90111-05015-00
Superseded by 92014-05008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,HEX. SOCKET BUT
90111-10039-00
Superseded by 90111-10040-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-08295-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FRONT FOOTREST ASSY (RIGHT)
2D1-27420-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, FOOTREST
4BP-27413-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90109-08174-00
Superseded by 90109-08177-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
BRACKET 3
2D1-27443-11-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, FOOTREST 2
1NL-27424-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#31
STOPPER, MAIN STAND
5VX-27114-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
BOLT,HEX. SOCKET BUT
90111-10039-00
Superseded by 90111-10040-00
|
$4.50 | ||
|
Unavailable |
|||
|
#33
WASHER, WAVE
90206-17084-00
|
$10.49 | ||
|
Unavailable |
|||
|
#34
STAY, STOP SWITCH
2D1-2144G-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
95802-06008-00
Superseded by 95817-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER 2
2D1-27487-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#38
BOLT, BUTTON HEAD
90111-05015-00
Superseded by 92014-05008-00
|
$3.85 | ||
|
Unavailable |
|||
|
#39
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Unavailable |
|||
|
#40
WASHER
90209-08295-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
FOOTREST, REAR 1
3VR-27431-01-00
Superseded by 3VR-27431-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BRACKET 4
2D1-2741L-10-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#44
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#48
FOOTREST, REAR 2
3VR-27441-01-00
Superseded by 3VR-27441-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET 5
2D1-2742L-10-00
|
$227.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#51
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#52
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#54
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#55
DAMPER, FOOTREST 2
36Y-27424-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
COLLAR
90387-10636-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT
90109-085G6-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#58
WASHER, PLATE
90201-10669-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
BOLT, FLANGE
95814-10040-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#60
STAND, MAIN
3C3-27111-00-00
|
$393.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
BRACKET, MAIN STAND
3C3-27151-01-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRACKET, MAIN STAND 2
5D0-27152-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT
90109-10029-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
NUT, U FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#66
BRACKET, ADAPTER 1
3C3-274A3-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
BOLT
90101-10033-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#68
NUT, U FLANGE
95602-10200-00
|
$4.55 | ||
|
Unavailable |
|||
|
#69
SPRING, TENSION
90506-40007-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
SPRING, TENSION
90506-23010-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
HOSE
90445-19003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
BOLT
90101-10033-00
|
$3.35 | ||
|
Unavailable |
|||
|
#73
NUT, U FLANGE
95602-10200-00
|
$4.55 | ||
|
Unavailable |
|||
|
#74
BOLT, HEXAGON SOCKET
90110-10025-00
Superseded by 90110-10026-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
