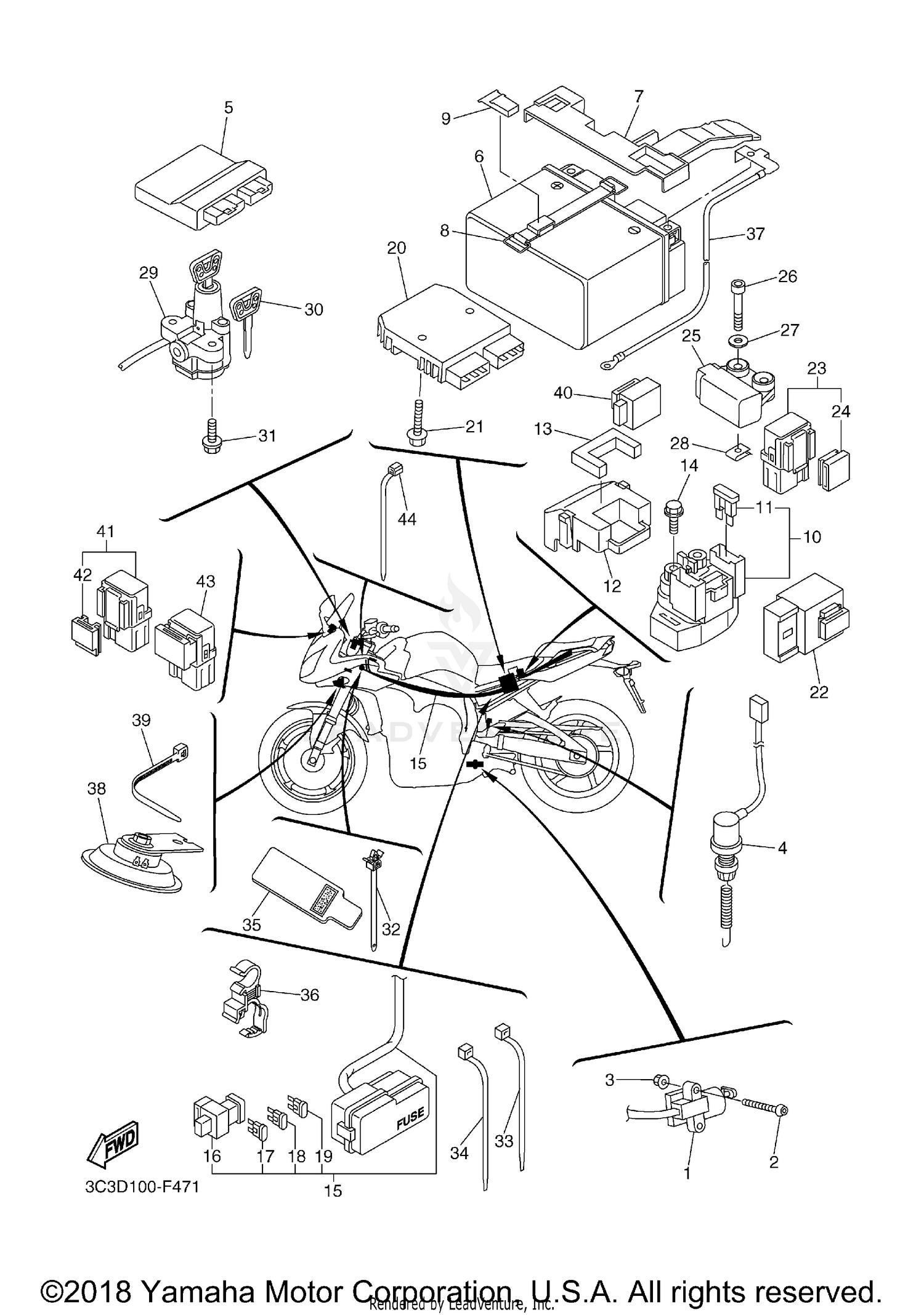

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, SIDE STAND
5VS-82566-61-00
Superseded by 5VS-82566-62-00
|
$75.99 | ||
|
Unavailable |
|||
|
#2
BOLT, BUTTON HEAD
92012-05030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOP SWITCH ASSY
2D1-82530-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ENGINE CONTROL UNIT ASSY
3C3-8591A-80-00
|
$1,211.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
YTZ14S YUASA BATTER
2D1-82100-00-00
Superseded by YTZ-14S00-00-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, BATTERY
2D1-82129-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, BATTERY
2D1-82131-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOOK
5YU-2162A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER RELAY ASSY (RC19-054)
2C0-81940-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE (15A-BLUE)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, LEAD WIRE
5SL-82119-10-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
2D1-82176-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE HARNESS ASSY
1CA-82590-10-00
|
$740.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE (50A)
5JW-82151-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE (20A-BL)
5JJ-82151-20-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
RECTIFIER & REGULATOR ASSY
1D7-81960-00-00
Superseded by 1D7-81960-01-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95822-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY (G8R-30Y-W4)
5VK-81950-40-00
Superseded by 5VK-81950-43-00
|
$62.99 | ||
|
Unavailable |
|||
|
#23
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, RELAY
5JJ-81952-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91312-04025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-04030-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SPRING
90183-04039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
MAIN SWITCH STEERING LOCK
3C3-82501-10-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BLANK KEY
4BH-82511-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTER, WIRE HARNESS
2D1-82589-00-00
Superseded by 2D1-82589-02-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
CLAMP
90464-12012-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
WIRE, MINUS LEAD
2D1-82116-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
HORN
2D1-83371-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BAND
3MA-82591-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
FLASHER RELAY ASSY
4MY-83350-01-00
Superseded by 4MY-83350-03-00
|
$49.99 | ||
|
Unavailable |
|||
|
#41
RELAY ASSY (5EA-02)
5EA-81950-20-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOLDER, RELAY
5EA-81952-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
90464-13077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
