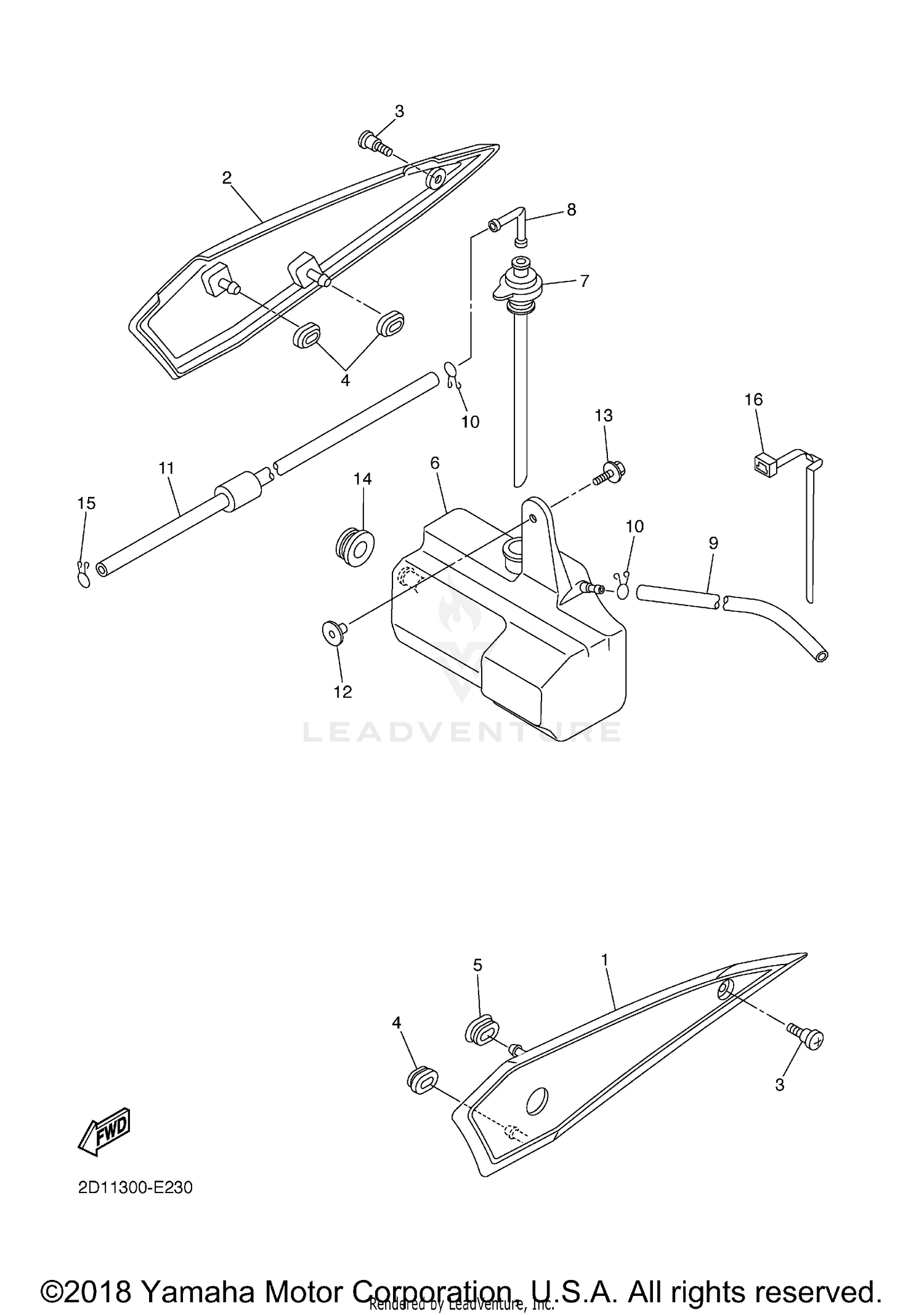

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2D1-21711-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SIDE 2
2D1-21721-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
90149-06165-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
2D1-21719-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK, RECOVERY
2D1-21871-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP
5VY-21875-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ELBOW
26H-21828-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
90445-08022-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (L700)
90445-087K6-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-062M9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-06230-00
Superseded by 90119-06212-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-20001-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
CLAMP
90464-07M40-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
