2005 Yamaha FZ 6 Front Fork OEM Parts

Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
< Back to Assembly Types

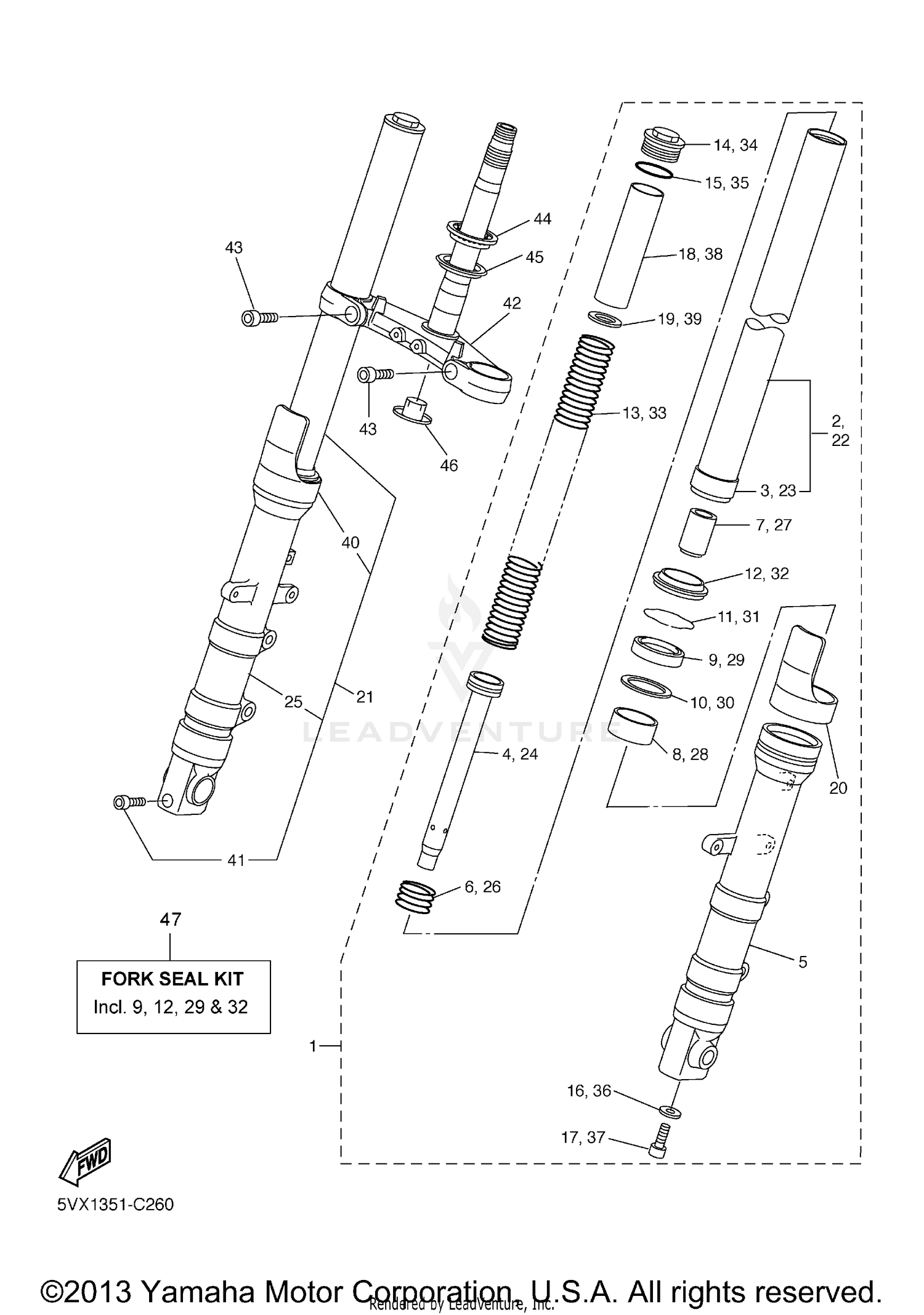

Front Fork Diagram

Item MSRP Qty
#1 FRONT FORK ASSY (L.H)
5VX-23102-00-00
 $612.99
Available to order.
Add to View Price
#2 INNER TUBE COMP.1
5VX-23110-00-00
Superseded by 4S8-23110-00-00
 $269.99
Available to order.
Add to View Price
#3 METAL, SLIDE 2
4TX-23135-A0-00
Superseded by 4TX-23135-B0-00
 $19.99
Available to order.
Add to View Price
#4 CYLINDER COMP., FRONT FORK
5VX-23170-00-00
 $148.99
Available to order.
Add to View Price
#5 TUBE, OUTER (LEFT)
5VX-23126-00-00
 $391.99
Available to order.
Add to View Price
#6 SPRING, REBOUND
4TX-23151-00-00
 $5.49
Available to order.
Add to View Price
#7 SPINDLE, TAPER
4TX-23173-00-00
 $24.99
Available to order.
Add to View Price
#8 METAL, SLIDE 1
4TX-23125-A0-00
Superseded by 4TX-23125-B0-00
 $17.99
Available to order.
Add to View Price
#9 OIL SEAL
5VX-23145-00-00
 $26.99
Available to order.
Add to View Price
#10 GUIDE, COVER UPPER
4TX-23115-00-00
 $8.49
Available to order.
Add to View Price
#11 RING, SNAP
4TX-23156-00-00
 $9.49
Available to order.
Add to View Price
#12 SEAL, DUST
4TX-23144-00-00
Superseded by 4TX-23144-01-00
 $22.99
Available to order.
Add to View Price
#13 SPRING, FRONT FORK
5VX-23141-00-00
 $45.99
Available to order.
Add to View Price
#14 FORK BOLT
5VX-2311H-00-00
 $26.99
Available to order.
Add to View Price
#15 O-RING (2HF)
93210-34504-00
Superseded by 93210-34633-00
 $8.49
Available to order.
Add to View Price
#16 GASKET
90430-10171-00
 $3.00
Available to order.
Add to View Price
#17 BOLT, HEXAGON SOCKET HEAD
90110-10N52-00
 $6.49
Available to order.
Add to View Price
#18 SPACER
5VX-23118-00-00
 $9.49
Available to order.
Add to View Price
#19 WASHER, PLATE
90201-231E1-00
 $5.00
Unavailable
#20 COVER
4TX-2331G-00-00
 $16.99
Available to order.
Add to View Price
#21 FRONT FORK ASSY (R.H)
5VX-23103-00-00
Superseded by 5VX-23103-01-00
 $612.99
Unavailable
#22 INNER TUBE COMP.1
5VX-23110-00-00
Superseded by 4S8-23110-00-00
 $269.99
Unavailable
#23 METAL, SLIDE 2
4TX-23135-A0-00
Superseded by 4TX-23135-B0-00
 $19.99
Unavailable
#24 CYLINDER COMP., FRONT FORK
5VX-23170-00-00
 $148.99
Unavailable
#25 TUBE, OUTER (RIGHT)
5VX-23136-00-00
Superseded by 5VX-23136-01-00
 $540.99
Unavailable
#26 SPRING, REBOUND
4TX-23151-00-00
 $5.49
Unavailable
#27 SPINDLE, TAPER
4TX-23173-00-00
 $24.99
Unavailable
#28 METAL, SLIDE 1
4TX-23125-A0-00
Superseded by 4TX-23125-B0-00
 $17.99
Unavailable
#29 OIL SEAL
5VX-23145-00-00
 $26.99
Unavailable
#30 GUIDE, COVER UPPER
4TX-23115-00-00
 $8.49
Unavailable
#31 RING, SNAP
4TX-23156-00-00
 $9.49
Unavailable
#32 SEAL, DUST
4TX-23144-00-00
Superseded by 4TX-23144-01-00
 $22.99
Unavailable
#33 SPRING, FRONT FORK
5VX-23141-00-00
 $45.99
Unavailable
#34 FORK BOLT
5VX-2311H-00-00
 $26.99
Unavailable
#35 O-RING (2HF)
93210-34504-00
Superseded by 93210-34633-00
 $8.49
Unavailable
#36 GASKET
90430-10171-00
 $3.00
Unavailable
#37 BOLT, HEXAGON SOCKET HEAD
90110-10N52-00
 $6.49
Unavailable
#38 SPACER
5VX-23118-00-00
 $9.49
Unavailable
#39 WASHER, PLATE
90201-231E1-00
 $5.00
Unavailable
#40 COVER
4TX-2331G-00-00
 $16.99
Unavailable
#41 BOLT, HEXAGON SOCKET HEAD
91314-08045-00
 $7.49
Available to order.
Add to View Price
#42 UNDER BRACKET COMP.
5VX-23340-00-00
 $277.99
Available to order.
Add to View Price
#43 BOLT
91317-10025-00
 $7.49
Available to order.
Add to View Price
#44 BEARING
93399-99932-00
 $58.99
Available to order.
Add to View Price
#45 SEAL, STEERING
3FV-23462-00-00
 $23.99
Available to order.
Add to View Price
#46 COVER, UNDER 1
4KM-23123-01-00
 $13.99
Available to order.
Add to View Price
