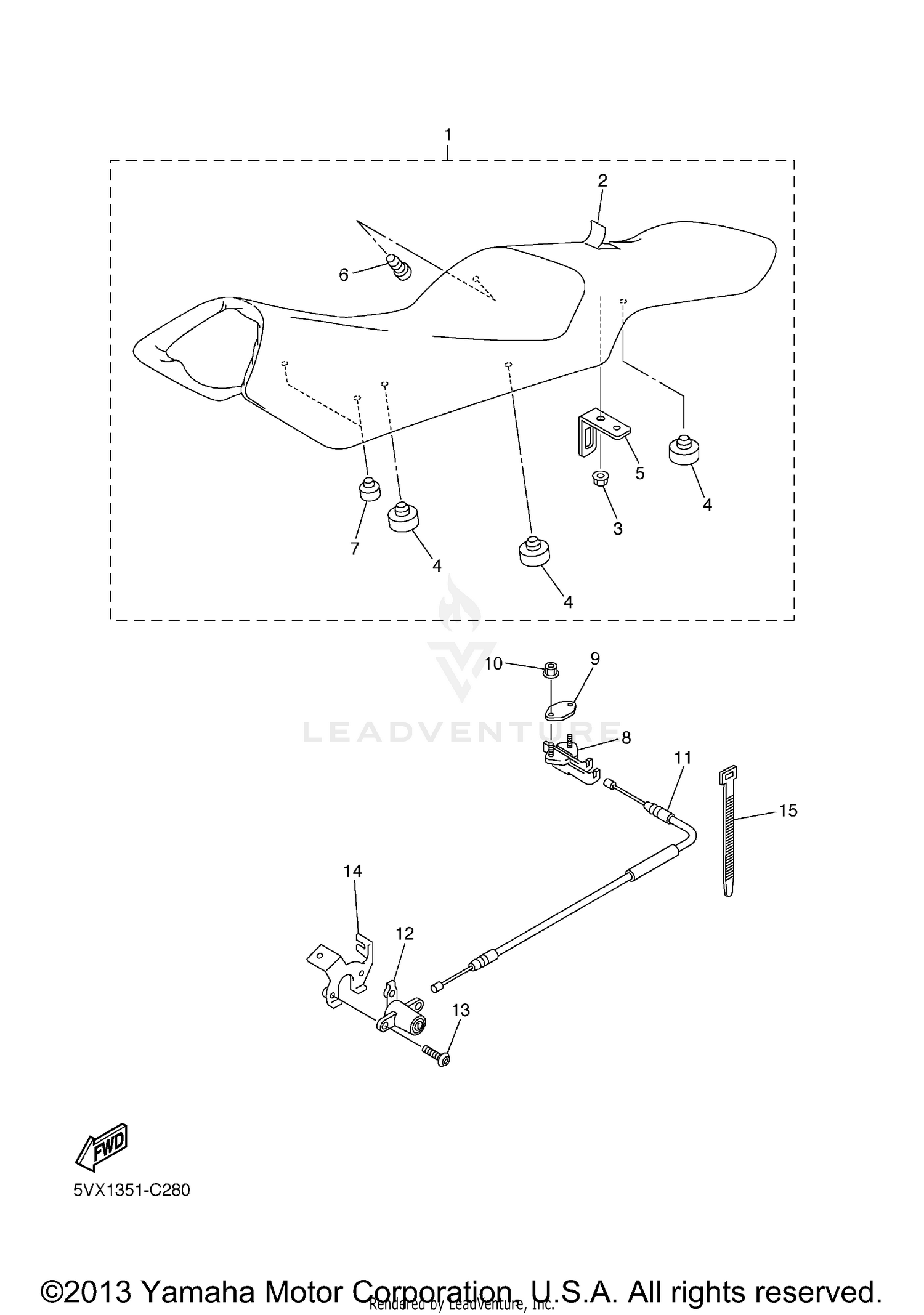

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
5VX-24730-01-00
Superseded by 4S8-24730-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SINGLE SEAT
5VX-24711-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT
4NK-24728-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, SEAT
5VX-24724-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Unavailable |
|||
|
#11
CABLE, SEAT LOCK
5VX-2478E-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06308-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, LOCK
5PW-2117K-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-16061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
