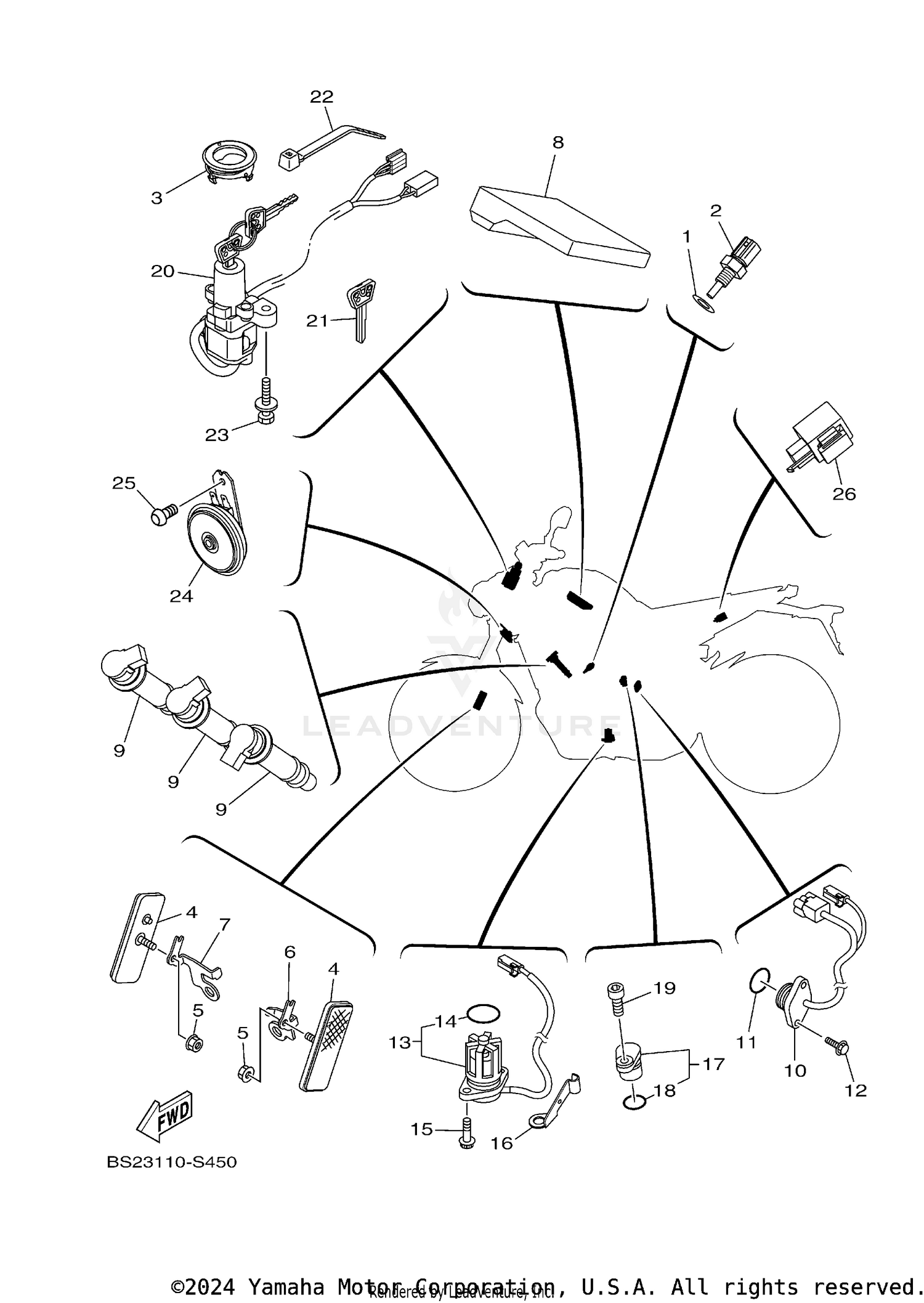

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET
90430-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, SWITCH
B90-82552-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WITH WASHER
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, REFLECTOR 1
1RC-85112-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, REFLECTOR 2
1RC-85122-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ENGINE CONTROL UNIT ASSY
BS2-8591A-10-00
Superseded by BS2-8591A-11-00
|
$940.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSY
1RC-82310-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEUTRAL SWITCH ASSY
1RC-82540-00-00
Superseded by 1RC-82540-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#11
O-RING
93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL LEVEL GAUGE ASSY
5S7-85720-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
5VY-8A8E0-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90465-08053-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, BLIND
3P6-15399-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
MAIN SWITCH STEERING LOCK
BS2-82501-00-00
Superseded by BS2-82501-01-00
|
$199.99 | ||
|
Unavailable |
|||
|
#21
BLANK KEY
4BH-82511-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-14010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HORN
BS2-83371-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BUTTON HEAD
92017-06010-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
FLASHER RELAY ASSY
4C8-83350-10-00
Superseded by 4C8-83350-12-00
|
$64.99 | ||
|
Unavailable |
|||
