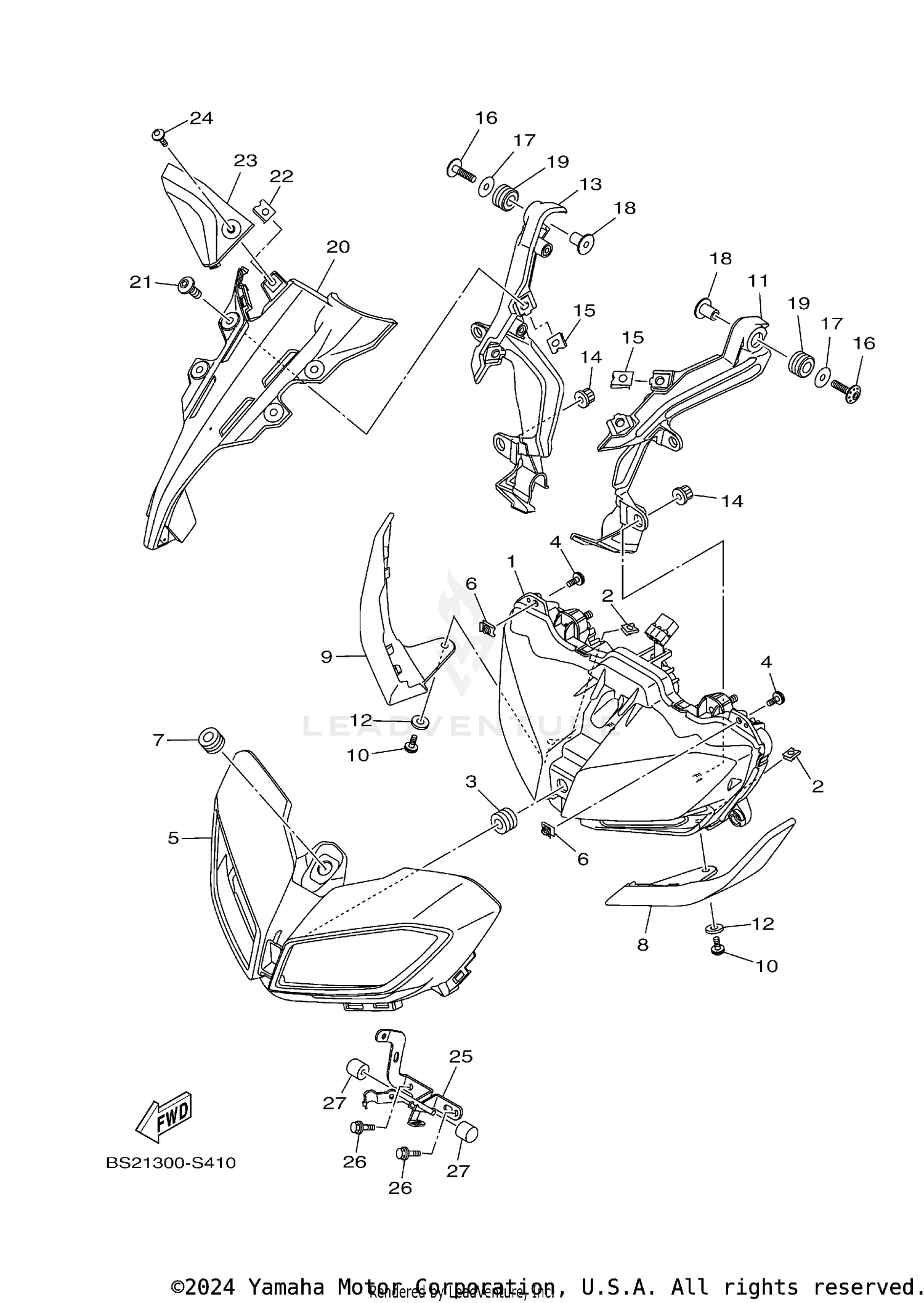

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY
BS2-84300-00-00
Superseded by BS2-84300-01-00
|
$1,067.99 | ||
|
Unavailable |
|||
|
#2
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
90167-05080-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, HEADLIGHT 1
BS2-2838D-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
VISOR, SIDE 1
BS2-2830C-00-P3
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VISOR, SIDE 1
BS2-2830C-00-P4
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VISOR, SIDE 1
BS2-2830C-00-P5
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VISOR, SIDE 2
BS2-2830D-00-P3
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VISOR, SIDE 2
BS2-2830D-00-P4
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VISOR, SIDE 2
BS2-2830D-00-P5
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
90167-05080-00
|
$2.25 | ||
|
Unavailable |
|||
|
#11
STAY, HEAD LIGHT 1
BS2-2831V-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, HEAD LIGHT 2
BS2-2832V-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-06074-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-061A4-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06317-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06063-00
Superseded by 90201-06095-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-06136-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PANEL, FRONT
BS2-23391-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. SOCKET BUTTON
90111-06127-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PANEL, FRONT 2
BS2-23397-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, SETTING
BS2-8431R-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE DEEP RECESS
95D07-06016-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER
BS2-84527-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
